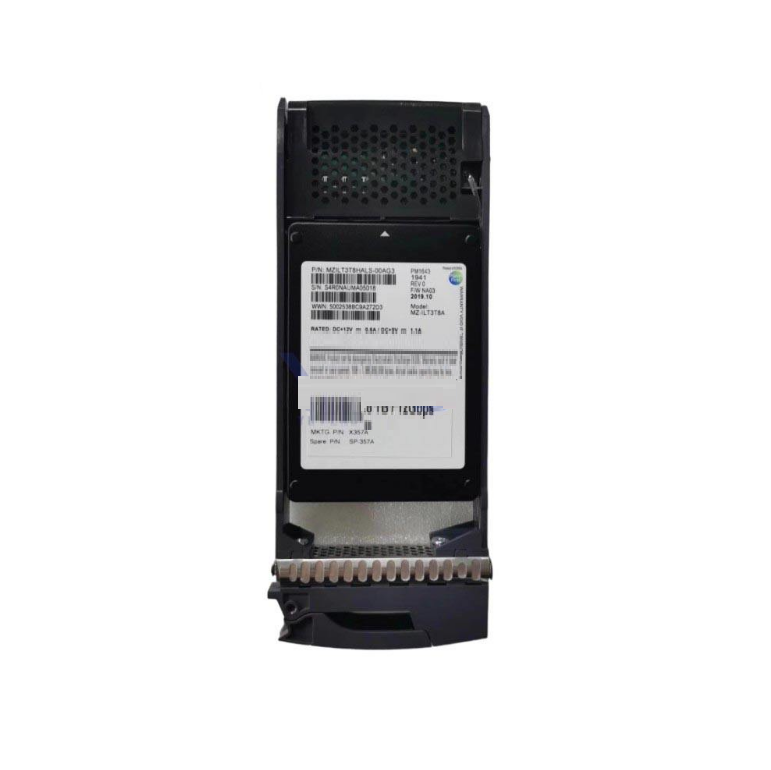

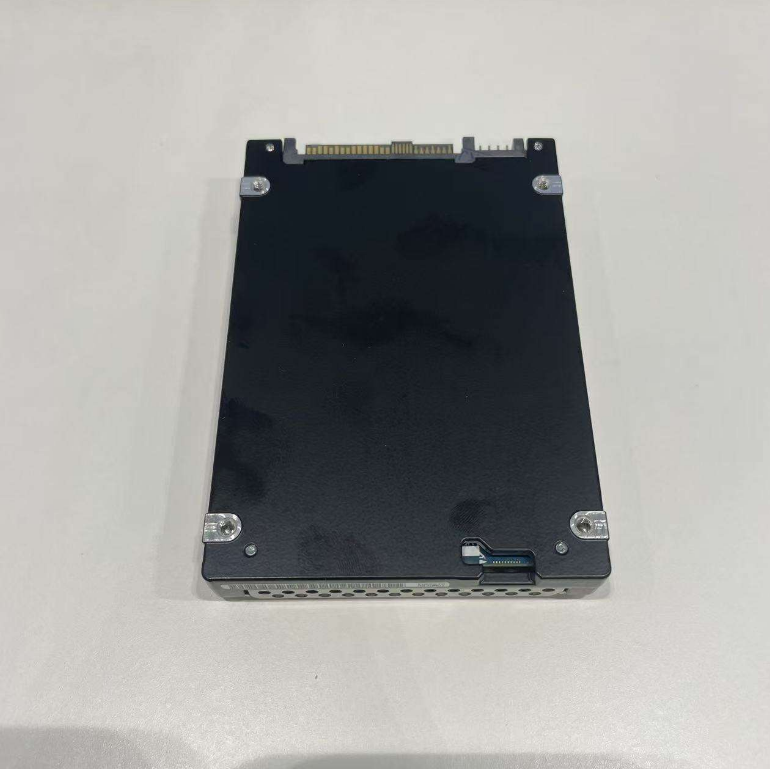

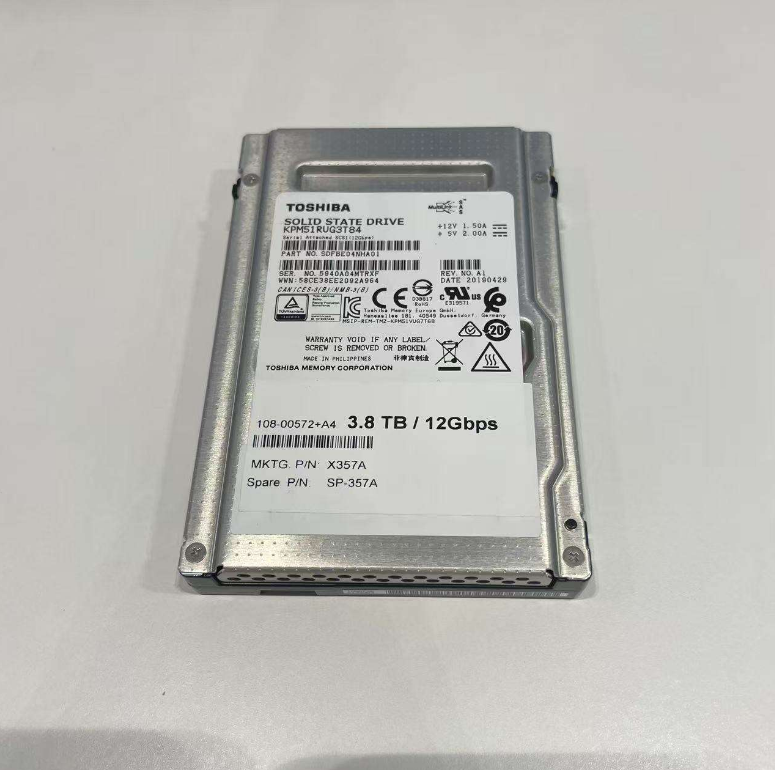

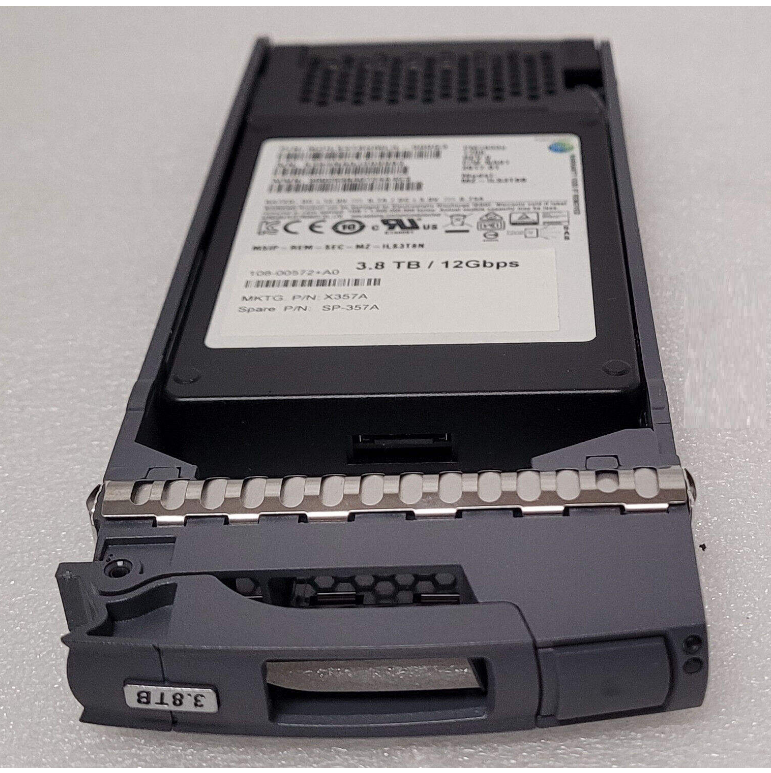

X357A SP-357A SDDBE04NHA01 108-00572 3.8TB 12Gbps SAS SSD KPM51RUG3T84 NEW for NETAPP

      read intensive NVMe solid-state drive designed by NetApp specifically for its all flash storage systems. This model offers a capacity of 3.84TB and adopts a standard 2.5-inch U.2 interface. Based on the PM1633A platform, it provides optimized read performance and reliability for NetApp AFF series storage arrays, suitable for medium scale read intensive workloads.

       Core specifications and features

        Project Specification Description

        NetApp model 108-00572

        Part number X356A-R6

        Disk model PM1633A

       Capacity 3.84TB

        Interface Protocol NVMe 1.3

       Appearance specification 2.5 inches U.2 (SFF-8639)

        NAND type 96 layer 3D TLC NAND

        Durability/Durability 1.3 DWPD (Daily Full Disk Write Count during 5-year Warranty)

        Total 9.1 PBW (lifetime write)

        Performance sequential reading: up to 3400 MB/s

        Sequential writing: up to 1300 MB/s

        Random read: 520000 IOPS (4K)

        Random Write: 38000 IOPS (4K)

        Power consumption activity power consumption 11W

         Idle power consumption 4.5W

        Reliability index MTBF: 2.5 million hours

        UBER 1e

        Key feature - Enhanced read performance: Improved read performance by        approximately 8% compared to previous generation products

        NetApp exclusive firmware: deeply optimized ONTAP integration

        Energy efficiency improvement: power consumption reduced by about 15%

        Intelligent temperature control: dynamic power consumption management

        Technical Features

         performance improvement

         Adopting a new generation controller to improve IOPS and throughput

         Improved pre reading algorithm to enhance sequential reading performance

         Enhanced garbage collection mechanism to maintain long-term performance stability

         Reliability enhancement

         Improved power protection circuit

         Enhanced error correction capability

        Real time NAND health monitoring

        management function

        Support NVMe MI 1.1 management interface

        Enhanced S.M.A.R.T. attribute monitoring

         Integrated NetApp Active IQ Predictive Analysis

         system compatibility

         Supports NetApp systems:

         AFF A250/A400/A800 series

         FAS500f/8300/8700 series

         EF570/580 Full Flash Array

         Requirement for ONTAP version:

         ONTAP 9.8 and above versions

           Recommend using ONTAP 9.10.1+

           Management tools:

            NetApp System Manager 9.8+

           Active IQ Unified Manager

           ONTAPI Command Line Interface

         Applicable scenarios

         enterprise application

        Virtualization infrastructure (VMware, Hyper-V)

         Read only replicas of databases (Oracle, SQL Server)

        Enterprise file sharing service

       cloud service

        Private cloud storage resource pool

        Hybrid cloud storage layering

        Backup and disaster recovery storage

         Specific workloads

        Video streaming storage

        Medical image archiving

       Research data storage
