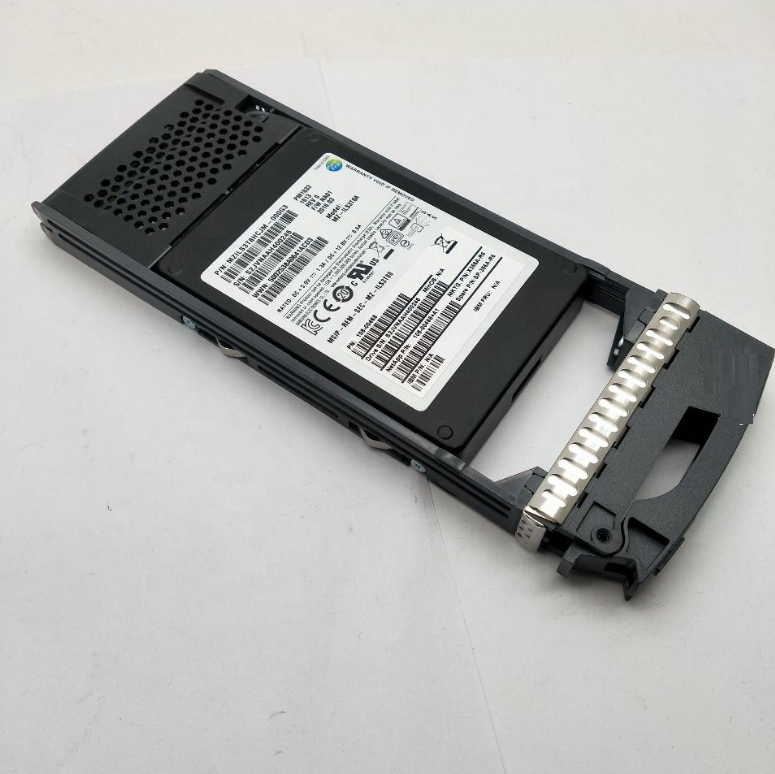

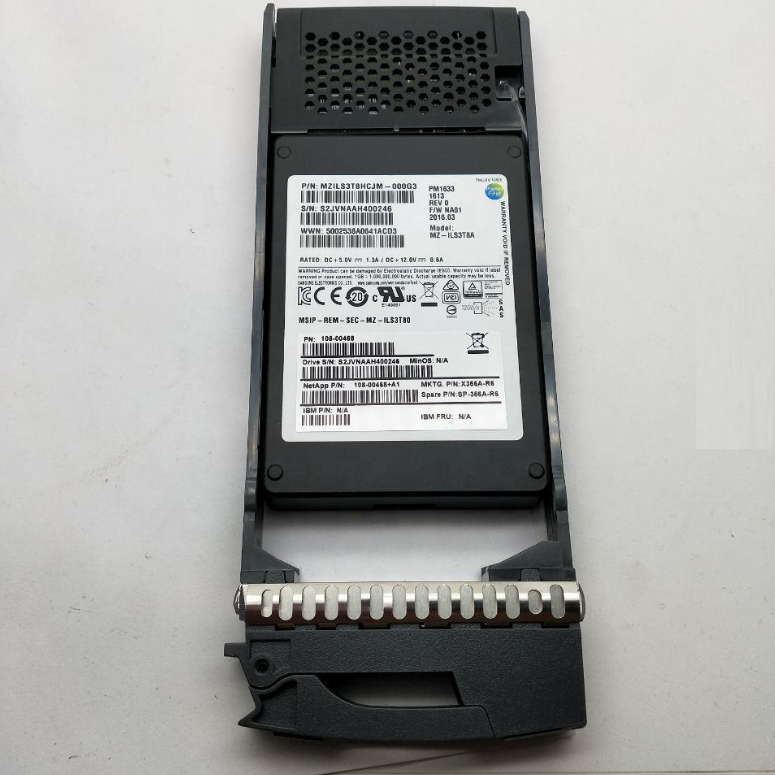

NetApp X357A 3.8TB SSD Hard Drive 12GBps 2.5" SASSP-356A 108-00468 X357A-R6 AFF DS2246

NetApp Enterprise NVMe Solid State Drive -108-00468 (X356A-R6, PM1633) Product Introduction

Overview

         NetApp 108-00468 (part number X356A-R6, disk body model PM1633) is a read intensive NVMe solid-state drive designed by NetApp specifically for its all flash storage systems. This model offers a capacity of 3.84TB and adopts a standard 2.5-inch U.2 interface. Based on the mature PM1633 platform, it provides balanced performance and  reliability for NetApp AFF series storage arrays, suitable for medium scale read intensive workloads.

         Core specifications and features

         Project Specification Description

         NetApp model 108-00468

         Part number X356A-R6

          Disk model PM1633

         Capacity 3.84TB

         Interface Protocol NVMe 1.2

        Appearance specification 2.5 inches U.2 (SFF-8639)

        NAND type 3D TLC NAND

        Durability/Durability 1.0 DWPD (Daily Full Disk Write Count during 5-year Warranty)

       Total 7.0 PBW (lifetime write capacity)

        Performance sequential reading: up to 3200 MB/s

       Sequential writing: up to 1100 MB/s

       Random read: 480000 IOPS (4K)

       Random Write: 32000 IOPS (4K)

      Power consumption activity power consumption 2W

      Idle power consumption5W

      Reliability index MTBF: 2.5 million hours

      UBER：1e

       Key feature - Read optimization design: optimized for read intensive workloads

      NetApp custom firmware: deeply integrated ONTAP system

      Enterprise level reliability: supports end-to-end data protection

      Energy Efficiency Optimization: Excellent Power Consumption per TB Unit

      Technical Features

      Performance characteristics

      Continuous read bandwidth reaches 3.2GB/s, meeting the needs of most enterprise applications

       Random read performance reaches 480K IOPS, suitable for random read workloads

      Optimized writing algorithm to ensure stable performance

      reliability characteristics

     Support Power Loss Protection

     Advanced Wear Balance Algorithm

     Real time bad block management and remapping

     management function

     Support NVMe Management Interface

      Integrated NetApp AutoSupport functionality

      Real time health status monitoring

      system compatibility

       Supports NetApp systems:

        AFF A Series Full Flash Array

        FAS series hybrid storage array (equipped with NVMe tray)

       EF series full flash array

        Requirement for ONTAP version:

        ONTAP 9.4 and above versions

        Recommend using ONTAP 9.7 or later versions

       Management tools:

       NetApp System Manager

      Active IQ Unified Manager

      ONTAPI Command Line Interface

      Applicable scenarios

      Enterprise virtualization environment

      VMware HANA virtualization platform

      Microsoft Hyper-V Environment

       VDI Virtual Desktop Infrastructure

       Database application

       Read only database copy

       Report and Data Warehouse Query

      Develop and test database environment

      File Service

      Enterprise file sharing storage

       Active Archive Storage

      Content distribution and storage

       Cloud infrastructure

      Private cloud storage resource pool

      Hybrid cloud storage layering

      Backup and restore storage
