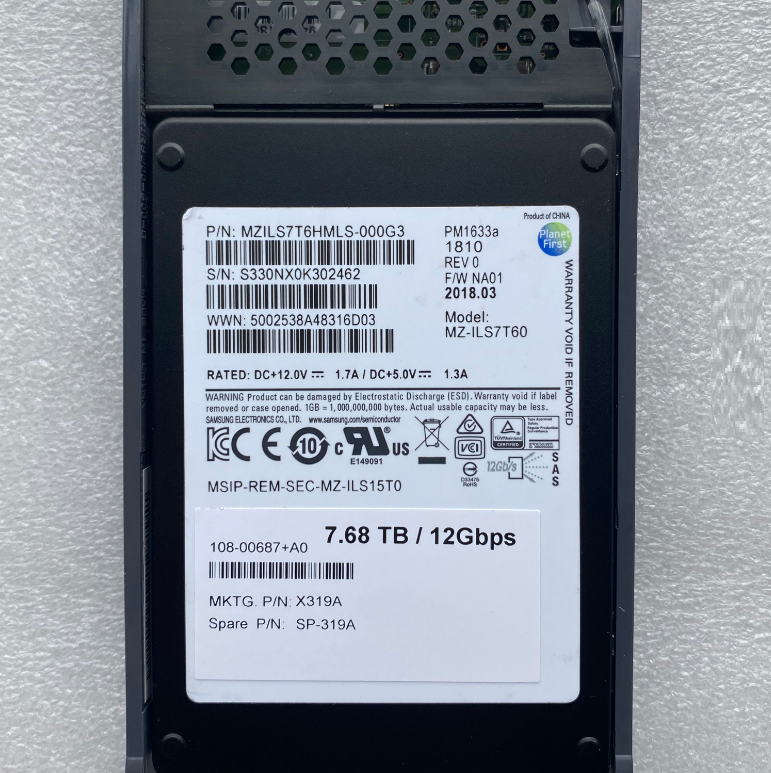

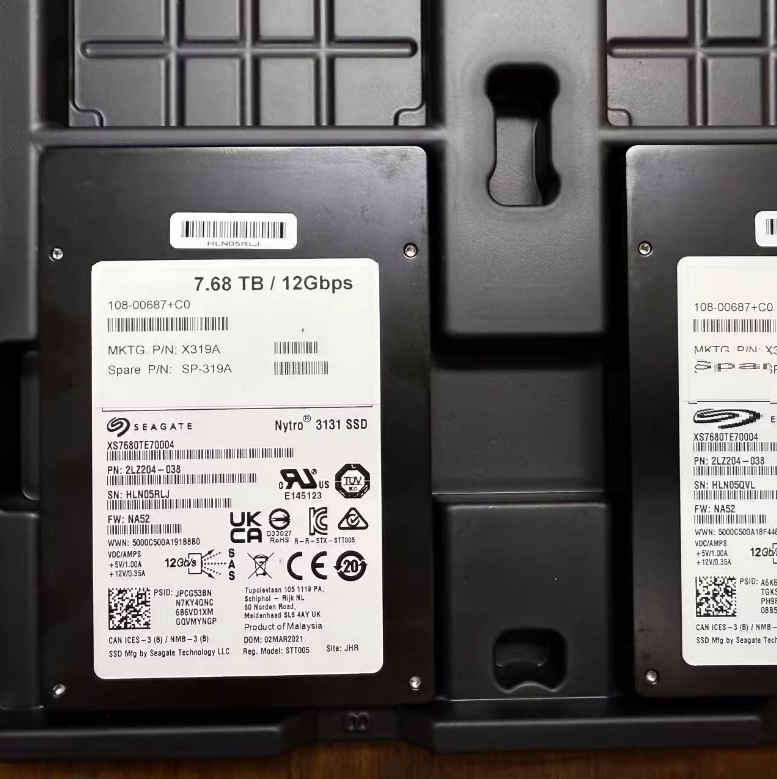

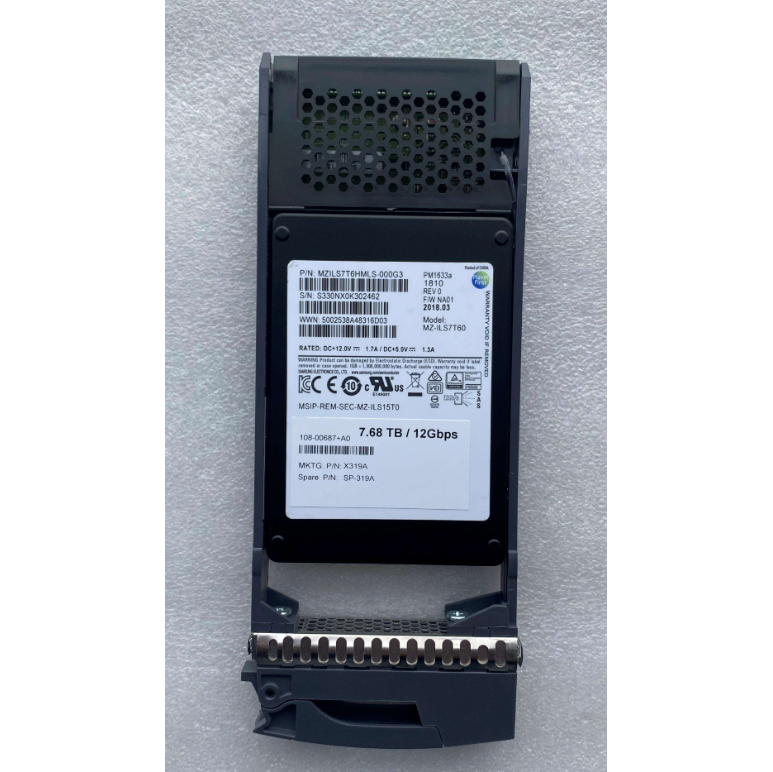

For NetApp X319A 7.68TB 2LZ204-038 12Gb/s SAS 2.5-inch SSD 108-00687 SP-319A DS224C in Stock

NetApp Enterprise NVMe Solid State Drive -108-00687 (X319A-R6, PM1643) Product Introduction

Overview

         NetApp 108-00687 (part number X319A-R6, disk body model PM1643) is a high-performance hybrid NVMe solid state drive designed by NetApp specifically for its all flash storage systems. This model offers a capacity of 7.68TB and uses a standard 2.5-inch U.2 interface. Based on the mature PM1643 platform, it provides excellent read-write performance and reliability for NetApp AFF series storage arrays, making it suitable for demanding mixed workload environments.

       Core specifications and features

       Project Specification Description

       NetApp model 108-00687

       Part number X319A-R6

       Disk model PM1643

       Capacity 7.68TB

        Interface Protocol NVMe 1.3

       Appearance specification 2.5 inches U.2 (SFF-8639)

       NAND type 64 layer 3D TLC NAND

       Durability/Durability 3.0 DWPD (Daily Full Disk Write Count during 5-year Warranty)

       Total 42.0 PBW (lifetime write volume)

       Performance sequential reading: up to 3500 MB/s

       Sequential writing: up to 2100 MB/s

       Random read: 750000 IOPS (4K)

        Random Write: 170000 IOPS (4K)

       Power consumption activity power consumption 16W

       Idle power consumption 5W

       Reliability index MTBF: 2.5 million hours

       UBER：＜1e

        Key feature - Hybrid workload optimization: Balanced read and write performance

       -Enterprise level durability: 3.0 DWPD durability rating

       -Advanced Data Protection: Complete Power Failure Protection

       -NetApp Deep Integration: Optimized for ONTAP

        Technical Features

         Performance architecture

        Dual port NVMe design, supporting high availability configurations

        Intelligent read-write cache management

        Adaptive Flash Memory Management Algorithm

         reliability characteristics

        Full path data protection

        End to end data integrity verification

       Hot swappable support, online replacement

        management function

        Support NVMe MI management interface

        Real time performance monitoring

        Predictive Failure Analysis

        system compatibility

        Supports NetApp systems:

        AFF A-series Full Flash Array (A250/A400/A800)

        FAS series hybrid storage array

        EF series full flash array

        Requirement for ONTAP version:

        ONTAP 9.7 and above versions

       Recommend using ONTAP 9.10.1+

        Management tools:

       NetApp System Manager

       Active IQ Unified Manager

       ONTAPI Command Line Interface

       Applicable scenarios

       Key applications for enterprises

      database

     SAP HANA environment

     Microsoft SQL Server

      virtualization platform

       VMware vSphere

       Microsoft Hyper-V

       OpenStack environment

       High Performance Computing

       Financial trading system

       Real time data analysis

       Artificial Intelligence/Machine Learning
