X4011A 3.8TB NVMe SSD 108-00857+E7 OTS2398 DC SN655 X90-4011A in Stock for NETAPP

NetApp Enterprise NVMe Solid State Drive -108-00857 (X4011A, PM1733) Product Introduction

Overview

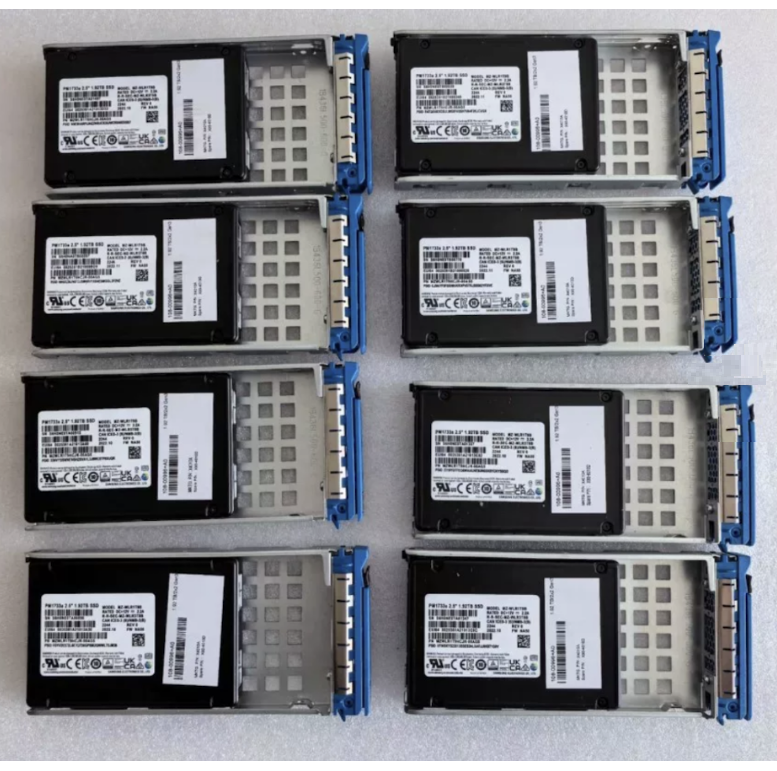

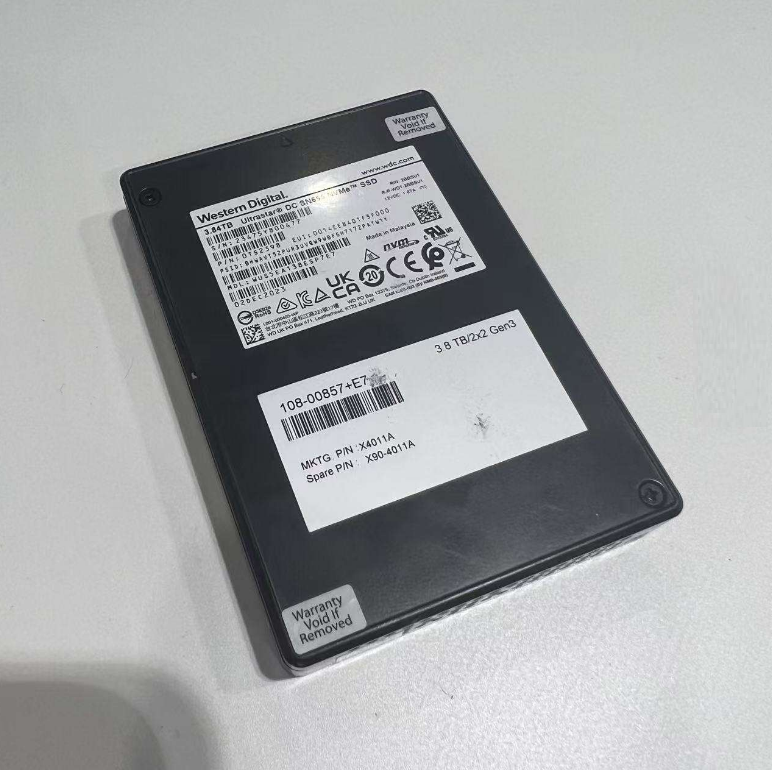

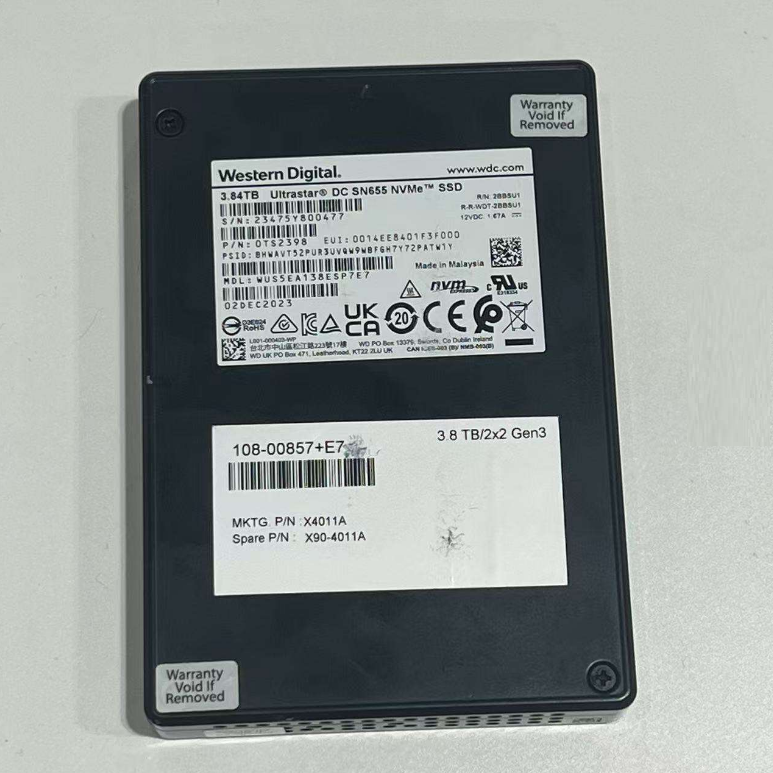

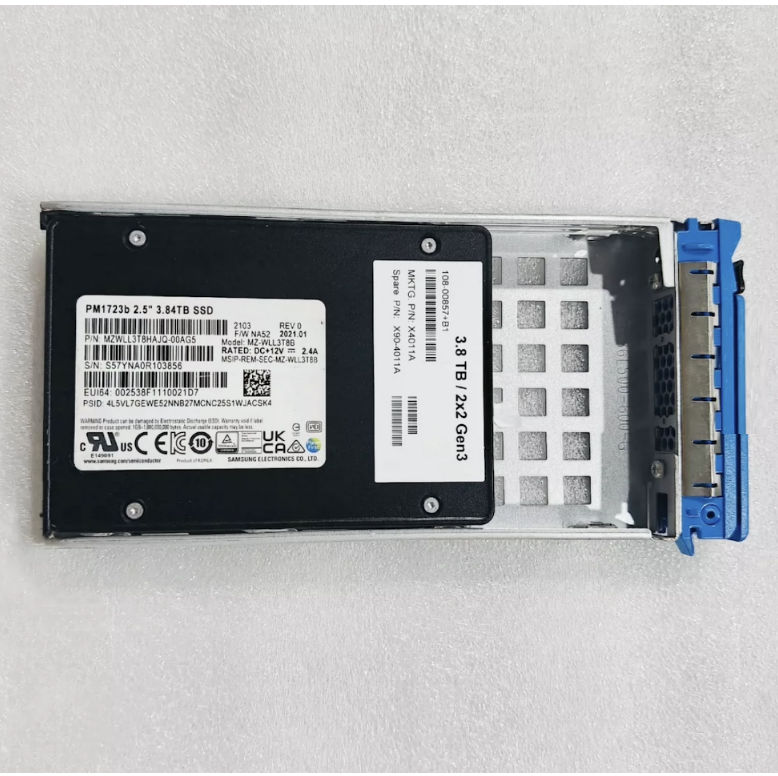

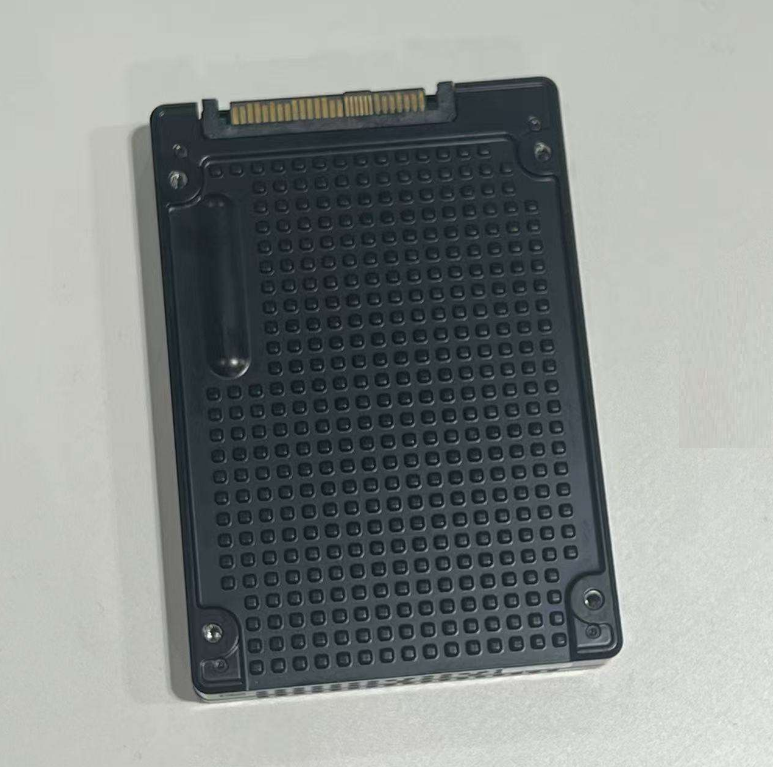

        NetApp 108-00857 (part number X4011A, disk body model PM1733) is a high-performance NVMe solid-state drive developed by NetApp based on the new generation PCIe 4.0 technology. This model offers a capacity of 3.84TB and adopts a 2.5-inch U.2 interface, designed specifically for NetApp AFF C-series and A-series all flash arrays, providing excellent read and write performance and low latency, suitable for demanding enterprise workloads.

        Core specifications and features

         Project Specification Description

         NetApp model 108-00857

        Part number X4011A

        Disk model PM1733

       Capacity 3.84TB

       Interface protocol NVMe 2.0, PCIe 4.0 x4

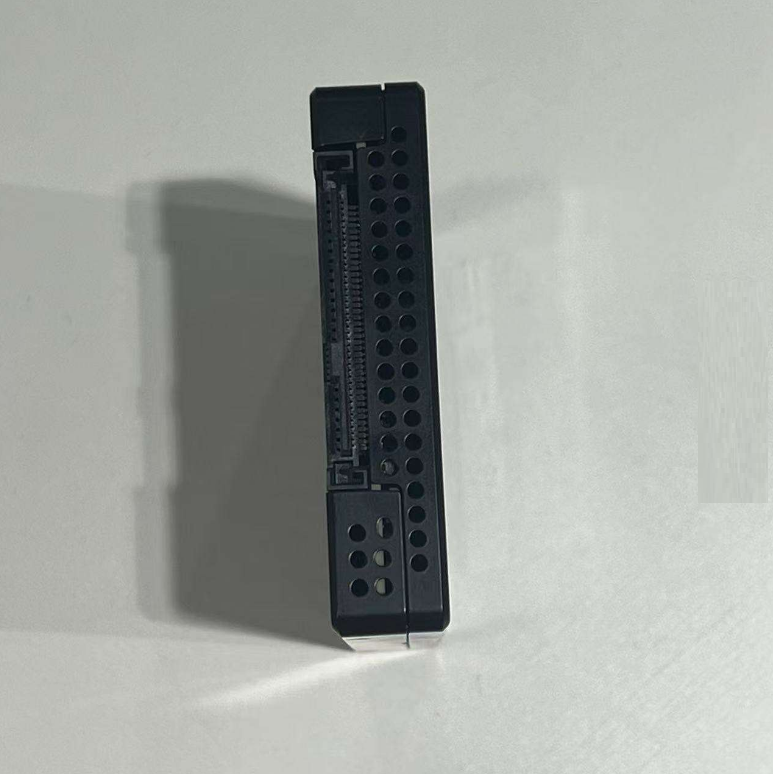

       Appearance specification 2.5 inches U.2 (SFF-8639)

       NAND type 96 layer 3D TLC NAND

       Durability/Durability 10 DWPD (daily full disk write count during 5-year warranty period)

       Total 70.1 PBW (lifetime write)

        Performance sequential reading: up to 6800 MB/s

        Sequential writing: up to 4200 MB/s

        Random read: 1500000 IOPS (4K)

        Random Write: 400000 IOPS (4K)

        Delay reading delay 90 μ s

        Write latency 15 μ s

        Power consumption activity power consumption 18W

       Idle power consumption 5W

       Reliability index MTBF: 2.5 million hours

       UBER： 1e

       Technical Features

       1. Performance characteristics

        Adopting PCIe 4.0 interface, the bandwidth is increased by 100% compared to PCIe 3.0

       Supports multiple namespaces (NVMe Sets)

       Adaptive Read Write Balance Algorithm

       Support end-to-end data protection

       2. Reliability characteristics

       Advanced Power Failure Protection (PLP)

       Full path data integrity verification

        Real time flash health monitoring

       Hot swappable and online replacement support

       3. Management function

       Support NVMe MI 1.1 management interface

        Enhanced S.M.A.R.T. attribute monitoring

        Integrated NetApp Active IQ Predictive Analysis

       Support remote diagnosis and management

        system compatibility

       Support platform:

        AFF A250/A400/A800 series

        AFF C Series Full Flash Array

        FAS9500 series hybrid array

        System requirements:

       ONTAP 9.10.1 or higher version

       Recommended ONTAP 9.11.1+

       Management tools:

        NetApp System Manager 9.10+

        Active IQ Unified Manager

        ONTAPI Command Line Interface

        REST API support

        Applicable scenarios

        1. High performance database

        Oracle RAC cluster

       SAP HANA environment

       SQL Server Key Business

        2. Virtualization infrastructure

        VMware HANA hyper converged

        Microsoft Hyper-V Cluster

        VDI Virtual Desktop Environment

        3. Technical application

        Artificial Intelligence/Machine Learning

        Real time data analysis

        High frequency trading system

        4. Enterprise applications

        ERP system storage

        CRM database

         Enterprise File Services
