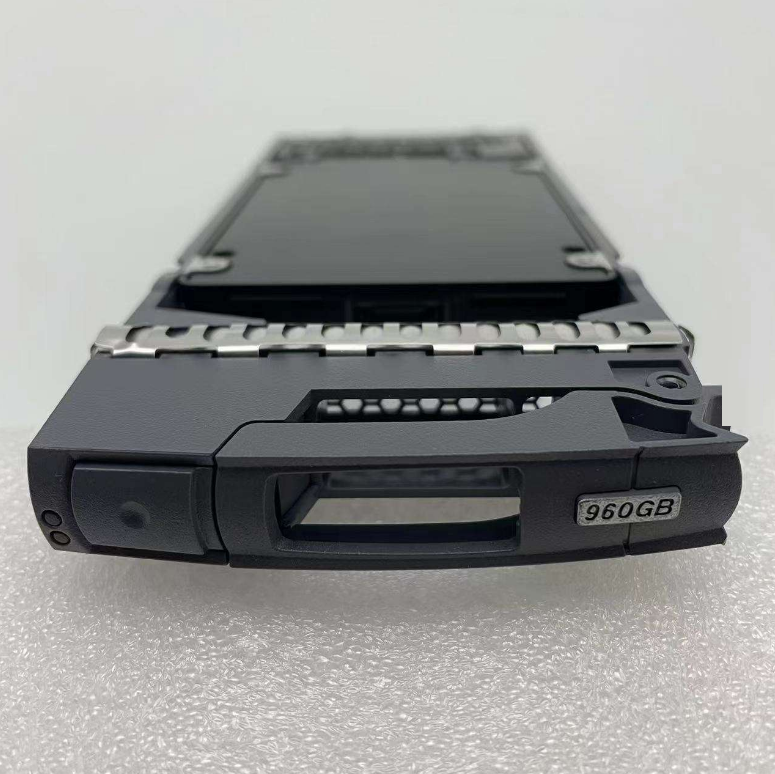

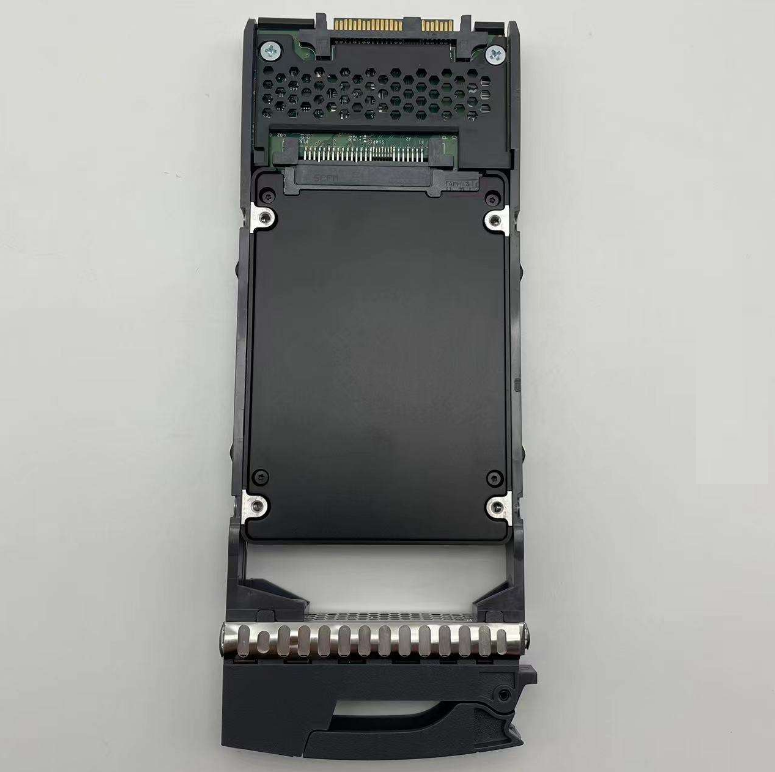

NETAPP Enterprise NVMe Solid State Drive - Model 108-00546 (X371A-R6) Product Details

1、 Product Overview

        NETAPP 108-00546 (product model X371A-R6, disk body model PM1635A) is a high-performance enterprise level NVMe solid-state drive with a capacity of 960GB. The product uses advanced flash technology and NVMe protocol to achieve an optimized balance between performance, capacity, and reliability, suitable for various enterprise level application scenarios, and is an ideal choice for mid-range storage needs.

2、 Detailed technical specifications

       Parameter Category Detailed Specification Remarks

       Basic Information

       Manufacturer Model X371A-R6

       NETAPP part number 108-00546 unique identification code

         Disk model PM1635A

         NVMe over PCIe interface protocol supports NVMe 1.3 standard

         Appearance specification 2.5 inches U.2 (SFF-8639) enterprise standard appearance

 Capacity information

         Nominal capacity 960GB original capacity

         Available capacity ≈ 880GB considering RAID and system overhead

         performance parameters

         Sequential read speed up to 3000 MB/s, sustained performance

         Sequential write speed up to 1000 MB/s, sustained performance

         4K random read up to 400000 IOPS, queue depth 256

        4K random write up to 60000 IOPS queue depth 256

        Read/write latency reading<95 μ s, write<22 μ s typical value

        Reliability parameters

         Durability level 3 DWPD daily full disk write count

         Service life 5.2 PBW lifetime write capacity

         Mean time between failures 2000000 hours

         The warranty policy is 5 years or the durability index is reached first

3、 Core Technologies and Characteristics

1. Performance optimization design

         Adopting PCIe 3.0 x4 interface, providing high bandwidth

        Optimized flash controller architecture

        Support multi namespace management

        dynamic power management

2. Enterprise level reliability

         Power outage protection design: integrated data protection

         End to end data protection: complete data verification mechanism

         Advanced Error Correction Code: Powerful Error Correction Capability

         Wear Balance Algorithm: Intelligent Flash Memory Management

3. Intelligent management features

         Hot swappable support: online maintenance capability

         S. M.A.R.T. monitoring: real-time health status report

         Temperature monitoring: dynamic temperature control adjustment

         Firmware online upgrade: no need for downtime maintenance

4、 Compatibility information

         Supported NetApp systems:

         AFF A series full flash array: A220, A250, etc

         FAS series hybrid storage system

         Supports ONTAP 9.4 and higher operating systems

         Physical compatibility:

         Standard 2.5-inch disc position

          DS224C and other disk racks

         Support hot swappable installation

5、 Recommended application scenarios

1. General Enterprise Applications

            Virtualization platforms (VMware, Hyper-V)

            Medium sized database applications

             file share service

2. Commercial applications

           Email server storage

          Web application storage

          Collaborative platform storage

3. Development and testing environment

          Development test platform

          Quality assurance environment

          Pre production environment
