Enterprise grade giant PM1723B 15.36TB U.2 NVMe SSD ultra durable 122K TBW database AI storage disk

EMC Enterprise NVMe Solid State Drive - Model 118000674 Product Detailed Description

I. Product Overview

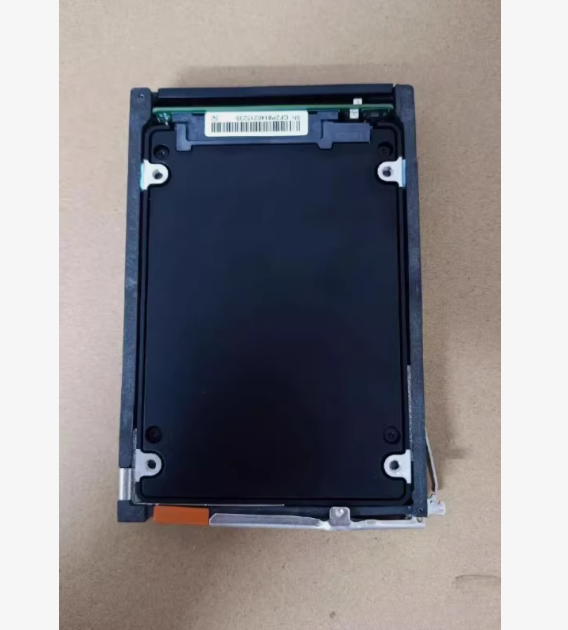

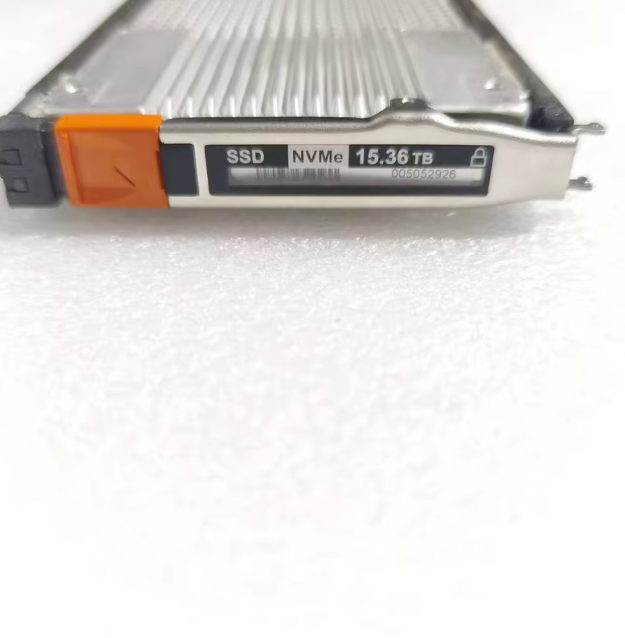

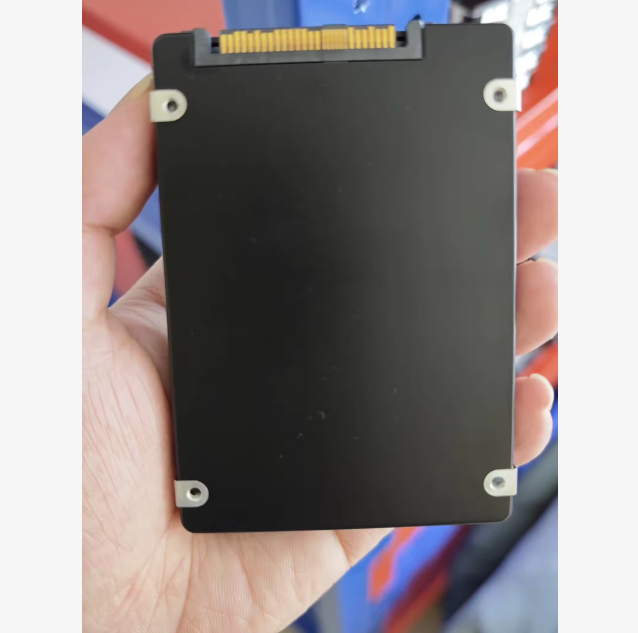

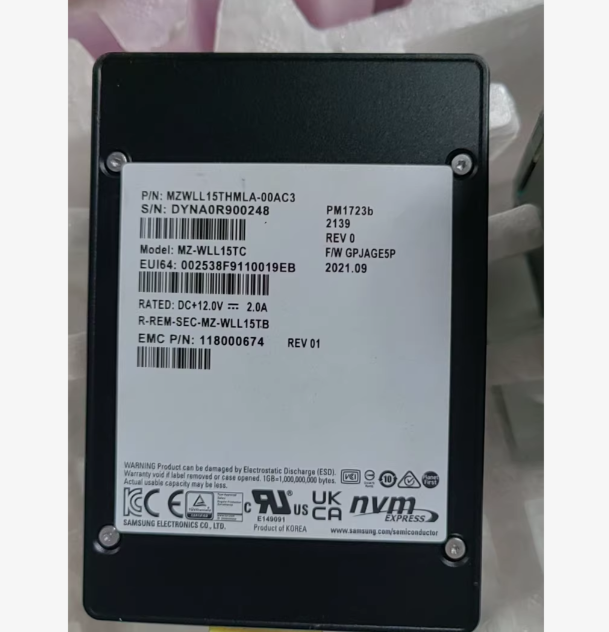

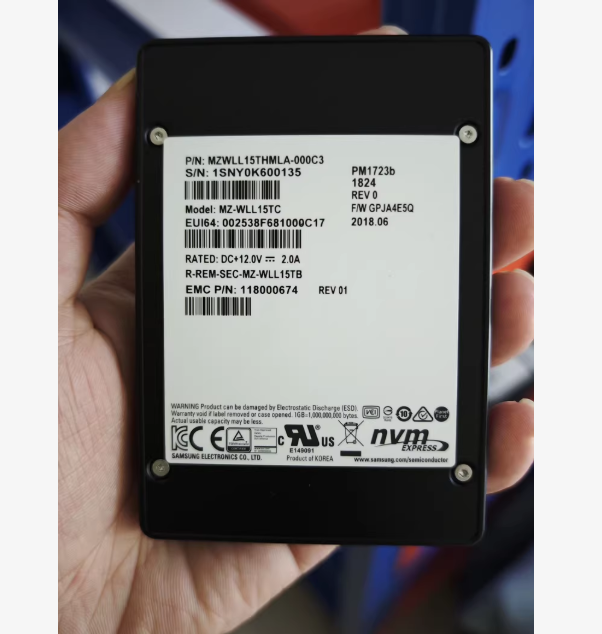

     The EMC 118000674 (Model PM1723B) is an enterprise-grade NVMe SSD with an ultra-high capacity of up to 15.36TB. This product represents the pinnacle of current enterprise storage technology, featuring the latest 3D TLC NAND flash memory and PCIe 4.0 interface, specifically designed for data-intensive workloads. It sets new industry standards in storage density, performance, and reliability.

II. Detailed Technical Specifications

     Parameter Category Technical Specifications

     Basic Information

     EMC Part Number 118000674

     Disk Model: PM1723B

     Interface Protocol: NVMe over PCIe 4.0

     Physical Dimensions: 2.5-inch U.2

      Capacity information

      Nominal Capacity: 15.36TB

      Available capacity ≈14.0TB

      Performance parameters

      Sequential read speed: 7,200 MB/s

      Sequential write speed: 4,500 MB/s

      4K Random Read: 1,600,000 IOPS

      4K Random Write 350,000 IOPS

      Read and Write Latency

     Read <60μs, Write <8μs

     Reliability parameters

      Durability rating: 3 DWPD

      Service life: 84 PBW

       Mean Time Between Failures: 2,500,000 hours

      Annual failure rate: 0.35%

       Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. Innovative Architecture Design

       PCIe 4.0 x4 interface, offering a transmission rate of 16 GT/s

       Supports all advanced features of the NVMe 1.4 standard

       Innovative NAND Flash Packaging Technology

       Intelligent power management, optimizing energy efficiency ratio

2. Enterprise-Level Reliability Engineering

       Multi-layer power failure protection: dual protection with supercapacitor and flash memory backup

       End-to-end data protection: Complete data integrity verification

       Advanced RAID Protection: Chip-level Redundancy Protection

       Smart Error Recovery: Real-Time Error Detection and Repair

3. Advanced Management Features

       Hot-swapping support: Online maintenance and replacement

       Predictive Analysis: Machine Learning-Based Fault Prediction

        Intelligent Temperature Regulation: Multi-zone Temperature Monitoring

       Remote Management: Full NVMe-MI Management Support

IV. Compatibility Information

        Supported Dell EMC Systems:

        PowerMax Series: PowerMax 2500/8500

       Unity XT Series: 880F/680F

       PowerEdge MX Series

       VxRail Hyper-Converged System

       Software Environment Support:

       VMware vSphere 7.0 or later

       Windows Server 2022

       Red Hat Enterprise Linux 8/9

      SUSE Linux Enterprise Server 15 SP3

V. Recommended Application Scenarios

1. Ultra-large-scale data centers

      Converged infrastructure

      Software-defined Storage Platform

      Cloud service provider infrastructure

2. Key Business Operations

       Large data warehouse

      Enterprise Resource Planning System

       Key business database

3. High-performance computing

      Artificial Intelligence Training Platform

      Machine learning workloads

       Scientific Computing Simulation

4. Data-intensive applications

       4K/8K video processing

       Genomic sequencing analysis

       Financial Risk Modeling

VI. Summary of Product Advantages

       Capacity advantage

       Industry-leading storage density

       Optimized spatial efficiency

        Significantly reduce total cost of ownership

        Performance advantage

        Excellent Throughput Performance

       Ultra-low latency response

      Stable service quality guarantee

       Reliability advantage

       Enterprise-grade durability design

       Multi-layer data protection mechanism

       Predictive maintenance capability

VII. Environmental Specifications

      Parameter  Specification

      Operating temperature: 0°C to 55°C

      Storage temperature: -40°C to 70°C

      Operating Humidity: 8% to 90% Non-condensing

      Working altitude: 3,050 meters

     Typical power consumption: 14-16W

       Maximum power consumption: 25W

       Vibration resistance: 5.0 Grms (5-800 Hz)
