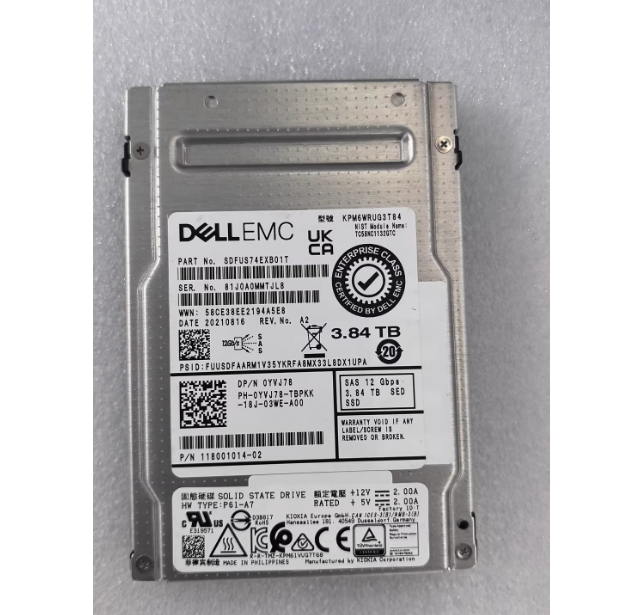

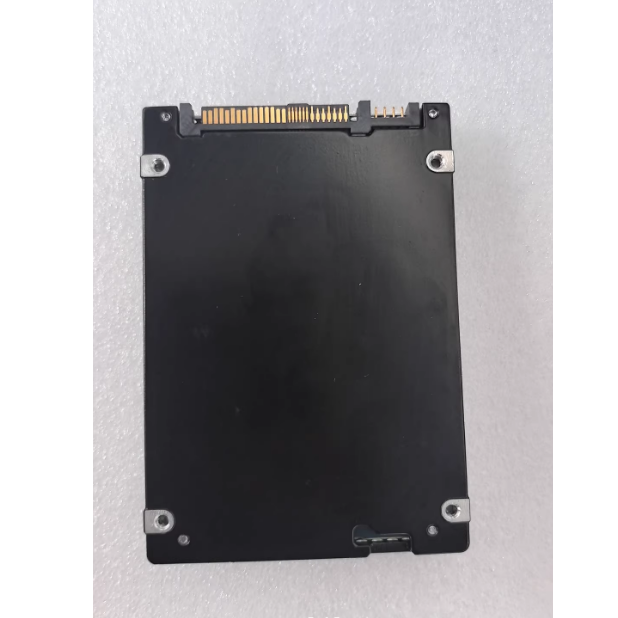

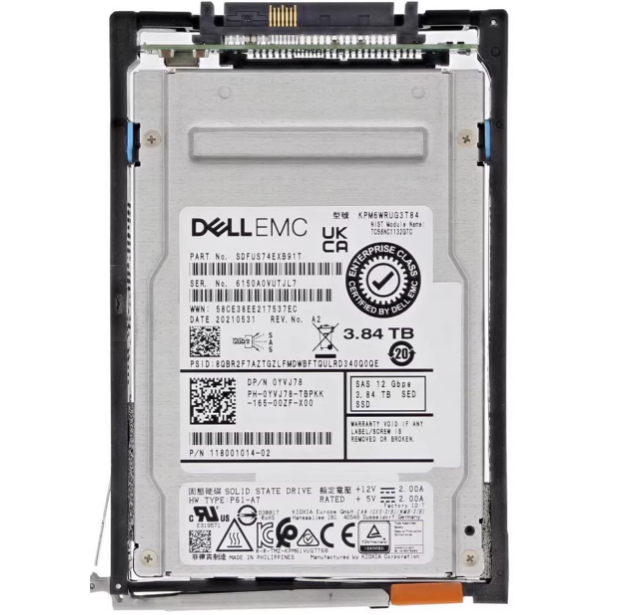

0YVJ78/118001014-01 SAS Solid State Drive Armor Hero Enterprise Disk Body Dedicated for 5052380 Storage Rack

Product Overview

1.Core Title

0YVJ78 (part number: 118001014-01) is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 3.84TB of storage capacity. This hard drive is designed specifically for Unity series storage systems, compatible with 5052380 storage expansion shelves, and uses Kioxia enterprise grade disk bodies to provide high reliability storage solutions for critical business operations.

2.Core specification parameters

Project Specification Description

Brand and Model 0YVJ78/118001014-01

Compatible with expansion shelf 5052380

Disk manufacturer Kioxia

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 3.84 TB

Flash Memory Type: 3D TLC NAND

Read/write performance sequential read: 2100 MB/s

Sequential writing: 1800 MB/s

3.Performance characteristics

High performance:

Sequential read speed: up to 2100 MB/s

Sequential write speed: up to 1800 MB/s

Random read performance: up to 400000 IOPS

Random write performance: up to 80000 IOPS

Average latency:<100 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 21024 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data path protection

Power outage protection (PLP) function

Advanced ECC error correction mechanism

Wear balance technology

4.Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path I/O

Power consumption management:

Working power consumption: 10-18W

Standby power consumption: 5W

Support dynamic power consumption adjustment

Energy saving mode power consumption:<3W

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 85°C

Working humidity: 5% to 95% RH

Anti vibration capability: meets enterprise level standards

5.Compatibility information

Support system:

Unity 300/400/500/600 series

Unity 350F/450F/550F/650F Full Flash Series

Unity XT series

Storage expansion shelf:

Specially optimized design for 5052380 storage expansion shelf

Support hot swappable installation

Plug and Play configuration

Support online expansion

6.Application scenarios

Database application:

Oracle Database

Microsoft SQL Server

SAP HANA In Memory Database

IBM DB2 database

Virtualization environment:

VMware HANA virtualization platform

Microsoft Hyper-V Environment

Virtual Desktop Infrastructure (VDI)

Containerized application storage

Enterprise applications:

Enterprise Resource Planning (ERP) System

Customer Relationship Management (CRM) System

Big data analysis platform

Backup and disaster recovery system

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring and warning

Monitoring and prediction of service life

Performance statistics and reports

Maintenance features:

Support online hot swappable replacement

Firmware online rolling upgrade

Diagnostic logging and analysis

Remote management function

8.Service Support

Technical support: Original factory technical service

Global warranty: providing international warranty services

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 165g

Interface type: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable bracket

Material: Metal shell, enhanced heat dissipation
