Solid state drive Intel 1.5T M.2 NVMe PCIe high-speed read-write laptop upgrade game storage large capacity

EMC Enterprise NVMe Solid State Drive - Model 118000596-03 Product Details

1、 Product Overview

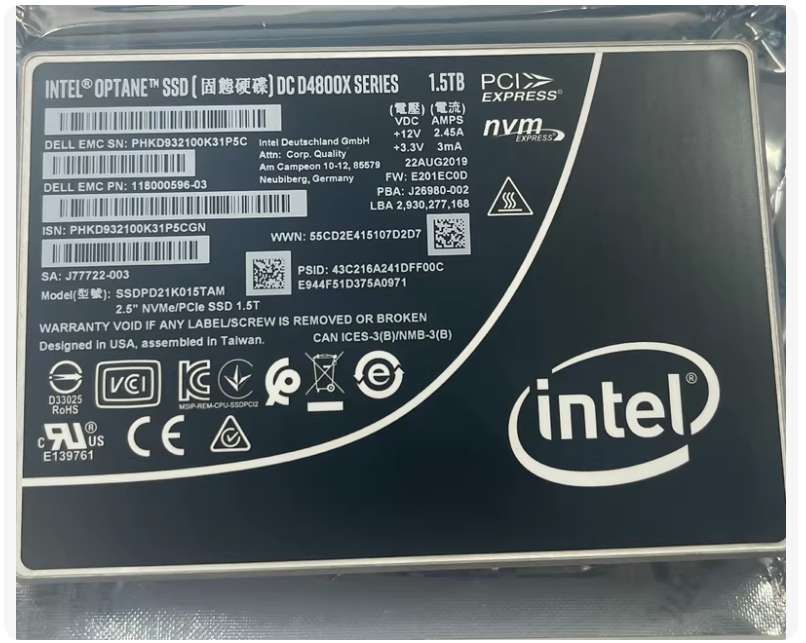

       EMC 118000596-03 (using Intel flash technology) is a high-performance enterprise NVMe solid state drive with a capacity of 1.5TB. The product is based on Intel's premium flash technology and is designed specifically for enterprise mixed workloads, achieving an excellent balance between performance, durability, and cost-effectiveness, making it suitable for a variety of enterprise storage application scenarios.

2、 Detailed technical specifications

      Detailed specifications of parameter categories

      Basic Information

     EMC part number 118000596-03

     Flash technology Intel 3D NAND

     Interface Protocol NVMe over PCIe 3.0

     Appearance specification 2.5 inches U.2

    Capacity information

    Nominal capacity of 1.5TB

    Available capacity ≈ 1.37TB

    performance parameters

    Sequential read speed 3200 MB/s

    Sequential write speed of 1600 MB/s

     4K random read 500000 IOPS

     4K random write 90000 IOPS

     Read/write delay: Read<85 μ s, write<15 μ s

    Reliability parameters

     Durability level 3 DWPD

     Optimized flash controller architecture

     Supports PCIe 3.0 x4 interface

      Low power and high-performance design

2. Enterprise level reliability

       Power outage protection mechanism: data integrity guarantee

       End to end data protection: complete verification mechanism

       Advanced Error Correction: LDPC Error Correction Technology

       Wear Balance Algorithm: Intelligent Life Management

3. Intelligent management function

       Hot swappable support: online maintenance capability

      Health status monitoring: S.M.A.R.T. attribute

      Temperature Management: Dynamic Temperature Control Adjustment

      Firmware Management: Online Upgrade Support

4、 Compatibility information

      Supported Dell EMC Systems:

     PowerEdge series servers

     VxRail hyper fusion system

    Unity hybrid storage array

    PowerMax All Flash Array

     Operating system support:

     Windows Server 2016/2019/2022

     Red Hat Enterprise Linux 7/8

     VMware ESXi 6.7/7.0

     SUSE Linux Enterprise Server 12/15

5、 Recommended application scenarios

1. General enterprise workloads

      Virtualization platform storage

      Medium sized database applications

      File sharing service

2. Cloud infrastructure

      Virtual machine image storage

     Container persistent storage

      Development and testing environment

3. Commercial applications

      Email server storage

     Web application storage

     Collaborative platform storage

4. Data Protection

     Backup storage acceleration layer

      Disaster recovery storage

     Data archiving and storage

6、 Summary of Product Advantages

     performance advantage

     Balanced read and write performance

     Stable low latency

     Good IOPS performance

      Reliability advantage

      Intel High Quality Flash Memory

     Enterprise level durability design

     Comprehensive data protection

     cost advantage

     Optimized total cost of ownership

      High energy efficiency design

     Long term operational reliability

7、 Environmental specifications

      Parameter specifications

     Working temperature: 0 ° C to 55 ° C

      Storage temperature -40 ° C to 70 ° C

      Working humidity 8% to 90% non condensing

     Working altitude of 3000 meters

     Typical power consumption of 8-10W

    Maximum power consumption 15W

     Anti vibration 4.0 Grms (5-700 Hz)
