Server SSD 3.84T U.2 NVMe PCIe Enterprise Hard Drive 3.84TB 118000588-04 005053504 Unplugged Mass Storage

EMC Enterprise NVMe Solid State Drive - Model 118000588-04 Product Details

1、 Product Overview

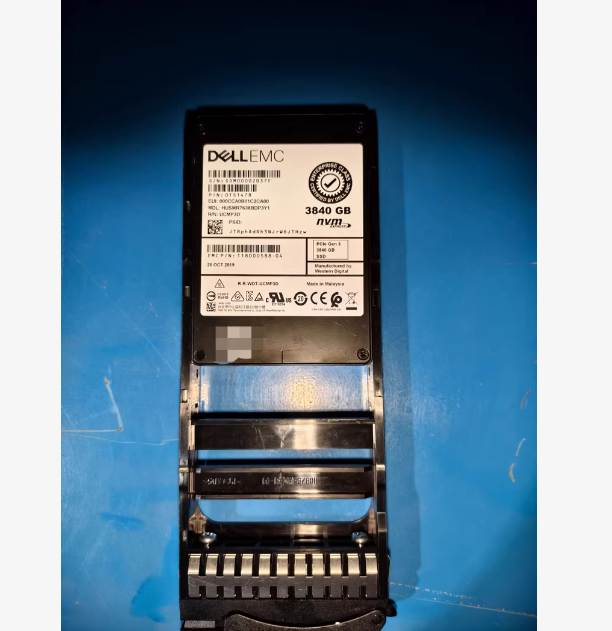

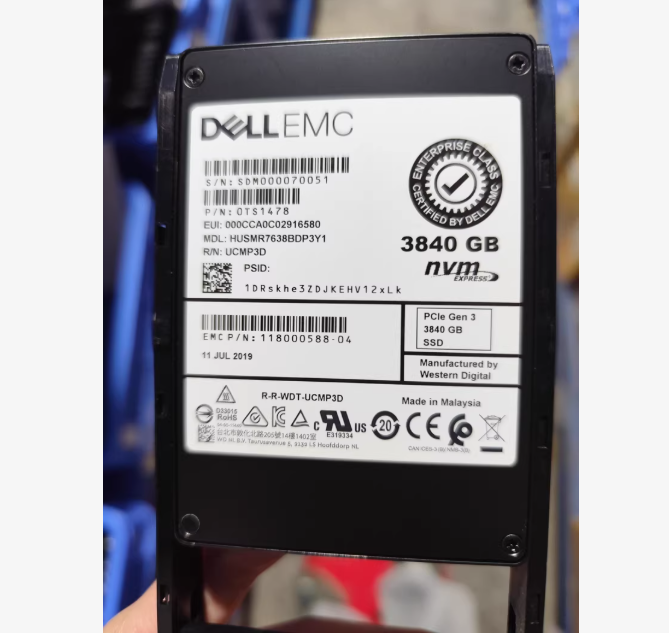

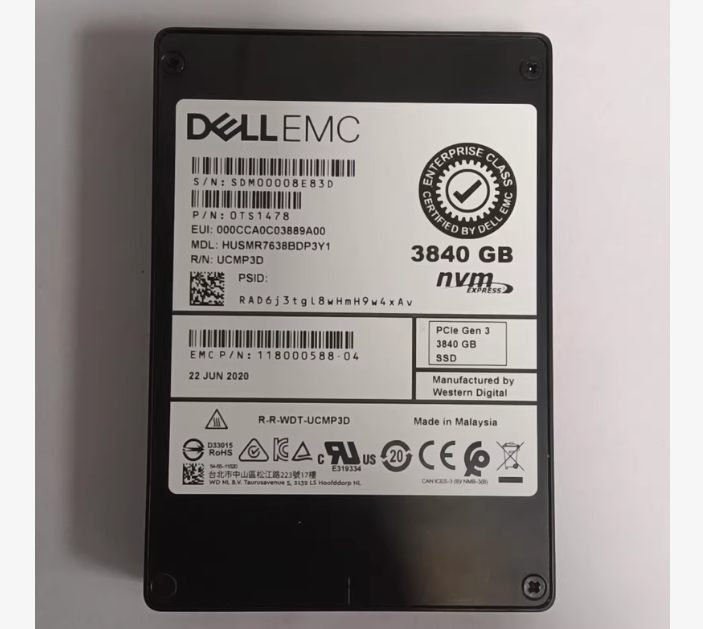

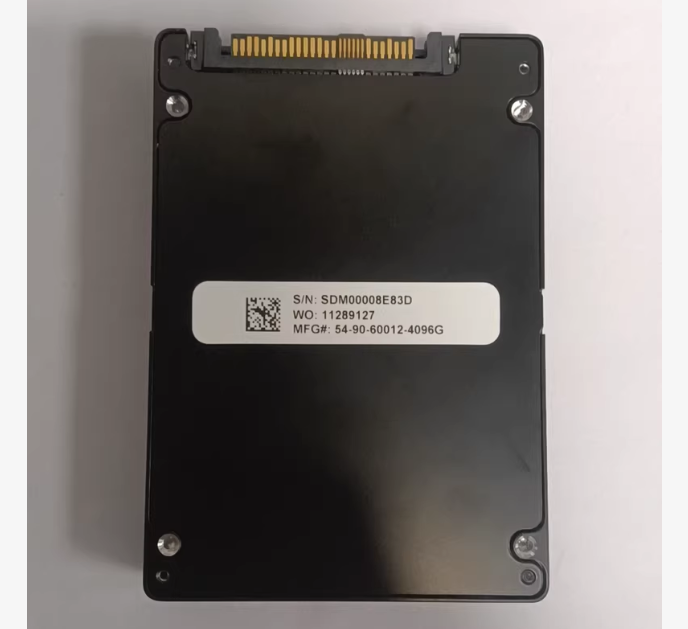

      EMC 118000588-04 (part number: 005053504) is a high-performance enterprise grade NVMe solid state drive that utilizes Western Digital's advanced flash technology, with a capacity of 3.84TB. The product is based on PCIe 4.0 interface and NVMe protocol, designed specifically for high demand workloads in modern data centers, achieving outstanding performance in terms of performance, reliability, and energy efficiency.

2、 Detailed technical specifications

       Detailed specifications of parameter categories

       Basic Information

       EMC part number 118000588-04

       Alternative part number 005053504

       Flash Memory Technology Western Digital 3D TLC NAND

      Interface protocol NVMe 1.4 over PCIe 4.0

       Appearance specification 2.5 inches U.2

       Capacity information

      Nominal capacity 3.84TB

       User available capacity ≈ 3.5TB

       performance parameters

      Sequential read speed 6800 MB/s

     Sequential write speed 4000 MB/s

      4K random read 1100000 IOPS

     4K random write 280000 IOPS

     Read/write delay: Read<75 μ s, write<12 μ s

     Reliability parameters

     Durability level 5 DWPD

     Service life 35 PBW

     Mean time between failures 2500000 hours

     Annual failure rate 0.44%

     Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. Western Digital Flash Memory Innovation

       Adopting BiCS5 3D TLC NAND technology

       112 layer stacked architecture

       Innovative charge capture storage technology

       High density storage unit design

2. Enterprise level reliability

       Complete power-off protection: onboard supercapacitor

       End to end data protection: full path data integrity verification

      Advanced Error Correction Technology: LDPC Error Correction

      Intelligent Wear Balance: Dynamic Wear Balance Algorithm

3. Intelligent management function

       Hot swappable support: Compliant with NVMe hot swappable standards

       Health status monitoring: real-time monitoring and early warning

       Temperature management: Multi zone temperature monitoring

       Remote management: NVMe MI management interface

4、 Compatibility information

       Supported Dell EMC Systems:

      PowerMax 2500/8500 series

      Unity XT 380F/480F/680F/880F

      PowerEdge MX series servers

       VxRail P Series/V Series

       Operating system support:

        VMware HANA 7.0 and above

        Windows Server 2019/2022

        Red Hat Enterprise Linux 8/9

        SUSE Linux Enterprise Server 15

5、 Recommended application scenarios

1. Key business of the enterprise

       Large scale database systems (Oracle, SQL Server)

       SAP HANA In Memory Computing Platform

       Enterprise Resource Planning System

2. Virtualization environment

       Large scale virtualization deployment

       Virtual Desktop Infrastructure (VDI)

      Containerized platform storage

3. Data analysis and AI

      Real time data processing

      Business Intelligence Analysis

       Machine learning workloads

4. Cloud service infrastructure

      Private cloud storage platform

      Hybrid cloud storage solution

      Cloud native application storage
