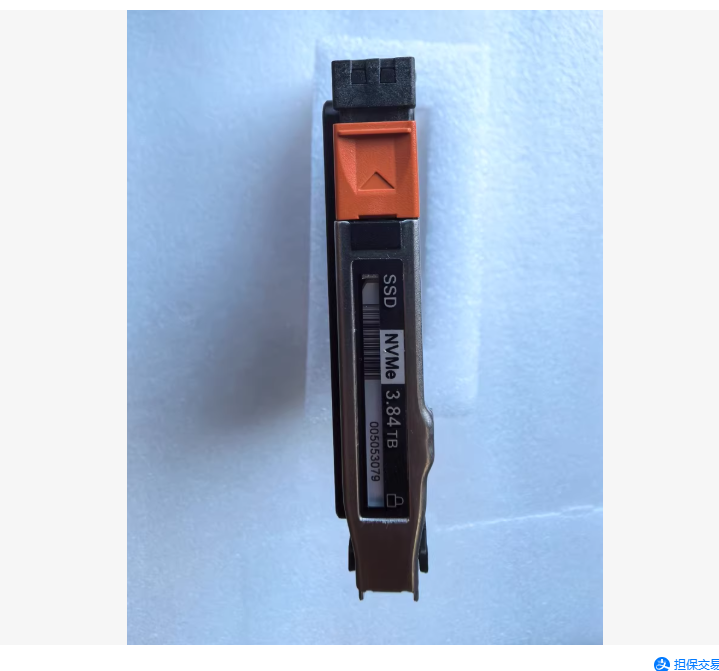

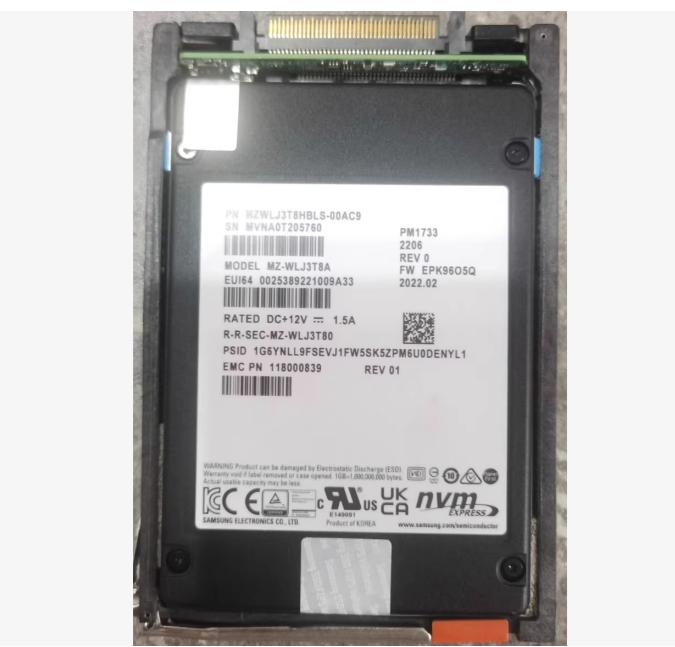

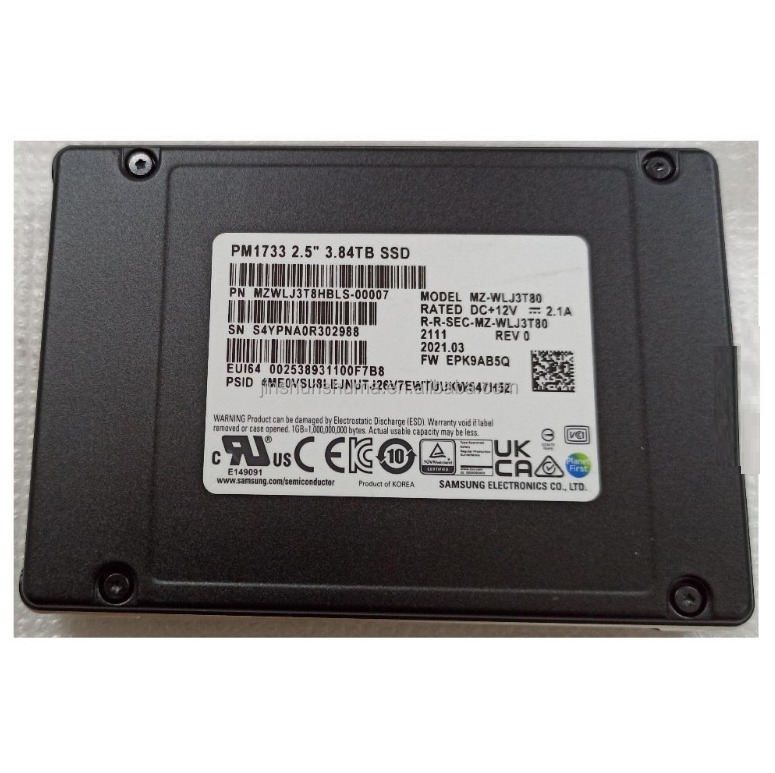

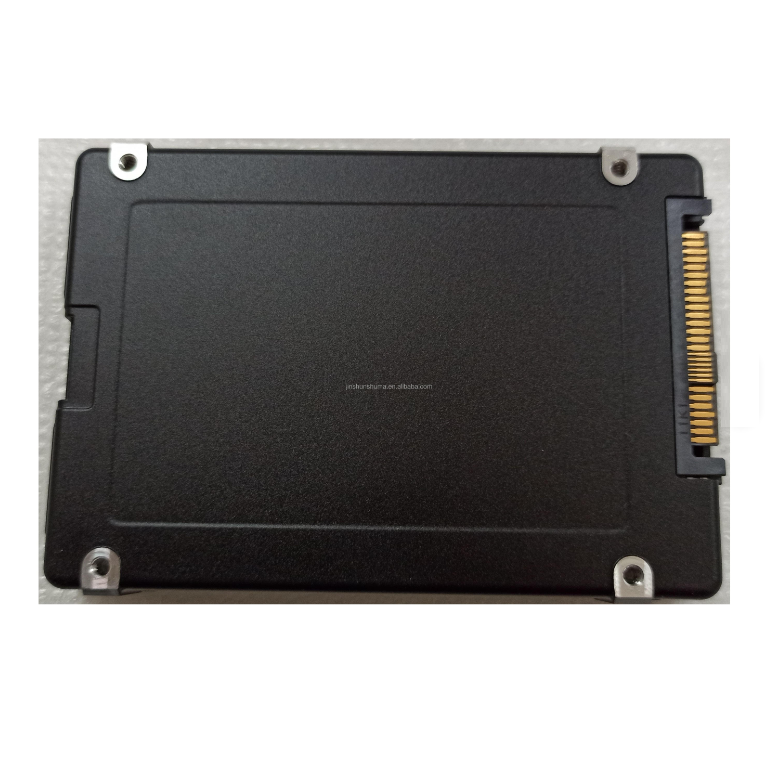

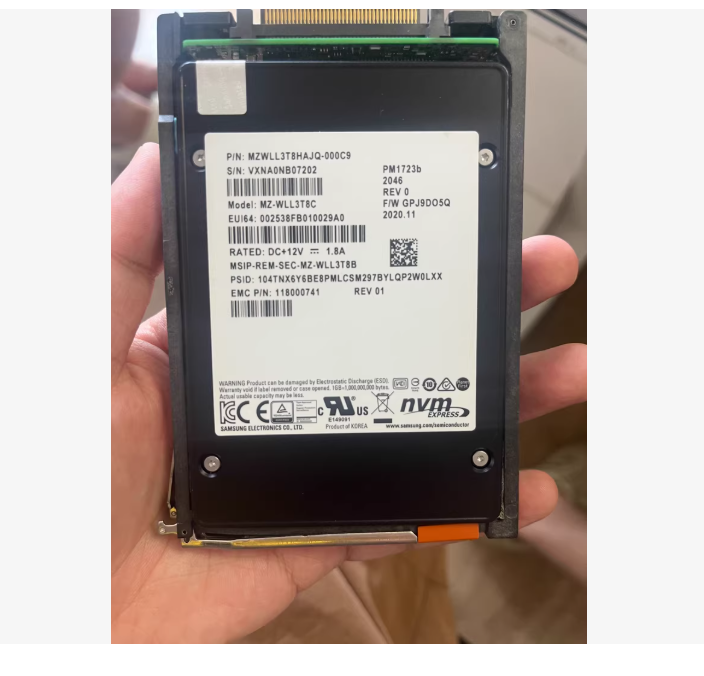

005053704 3.84TB NVMe 2.5" SSD Server Series Solid State Drives Disk 118000839 MZWLJ3T8HBLS-00AC9

EMC Enterprise NVMe Solid State Drive - Model 118000839 Product Detailed Description

1. Product Overview

      The EMC 118000839 (Part Number: 005053704) is a high-performance enterprise-grade NVMe solid-state drive with a capacity of 1.92TB. This product utilizes the latest 3D TLC NAND flash technology, based on the PCIe 4.0 interface and NVMe protocol, specifically designed for demanding workloads in modern data centers, achieving an exceptional balance of performance, reliability, and energy efficiency.

 II. Detailed Technical Specifications

     Parameter Category  Detailed Specifications

     Basic Information

     EMC Part Number 118000839

     Replacement Part Number 005053704

     Flash Memory Technology: 3D TLC NAND

     Interface Protocol: NVMe 1.4 over PCIe 4.0

    Form factor: 2.5-inch U.2

    Capacity information

     Nominal Capacity: 1.92TB

     User available capacity ≈1.75TB

      Performance Parameters

      Sequential read speed: 6,900 MB/s

     Sequential write speed: 3,600 MB/s

     4K Random Read  980,000 IOPS

     4K Random Write 230,000 IOPS

     Read/Write Latency: Read <68μs, Write <11μs

     Reliability parameters

     Durability Level 3 DWPD

    Service life: 10.5 PBW

     Mean Time Between Failures: 2,500,000 hours

     Annual failure rate: 0.35%

      Warranty Policy: 5-Year Limited Warranty

3. Core Technologies and Features

1. High-performance architecture

     PCIe 4.0 x4 interface, offering a data transfer rate of 16 GT/s

     Supports multiple namespaces and SR-IOV

     Optimized parallel processing architecture

      Low-power high-performance controller

2. Enterprise-level reliability

     Full Path Power Failure Protection: Enhanced Super Capacitor

      End-to-end data protection: comprehensive data integrity verification

       Advanced LDPC Error Correction: Fourth-Generation LDPC Error Correction

       Smart Health Monitoring: Real-time Flash Memory Health Management

3. Smart Management Function

        Hot-swap support: Compliant with NVMe hot-swap standards

      Telemetry: Real-time Performance Monitoring

       Smart Temperature Regulation: Multi-Zone Temperature Sensors

       Remote Management: NVMe-MI 1.1 Management Interface

IV. Compatibility Information

      Supported Dell EMC Systems:

      PowerMax 2500/8500 All-Flash Array

      Unity XT 380F/480F/680F/880F

      PowerEdge MX series servers

       VxRail P Series/V Series

       Software Environment Support:

        VMware vSphere 7.0 U3 and above

        Windows Server 2022

        Red Hat Enterprise Linux 8.5 or later

       SUSE Linux Enterprise Server 15 SP3

V. Recommended Application Scenarios

1. Key Business of Enterprises

      Medium-sized database system

     Virtualization platform storage

     Enterprise application server

2. Cloud computing environment

      Private cloud storage infrastructure

      Hybrid cloud storage solution

     Cloud-native application storage

3. Data Analysis

     Real-time data processing

     Business Intelligence Analysis

      Machine learning inference workloads

4. Virtualization Deployment

      Virtual Desktop Infrastructure (VDI)

      Server virtualization

      Container platform storage
