EMC Enterprise NVMe Solid State Drive - Model 118000742 Product Details
1、 Product Overview

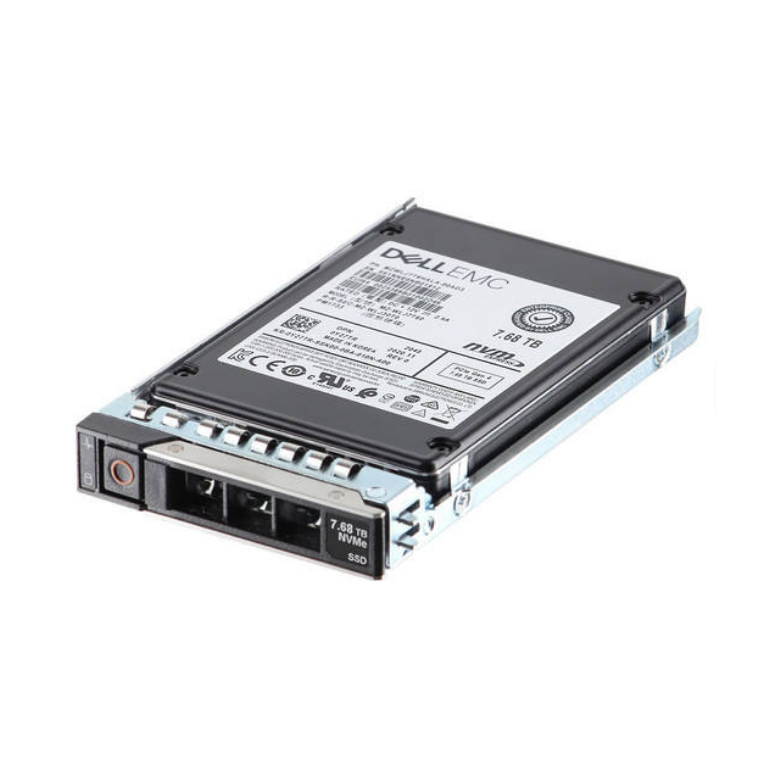

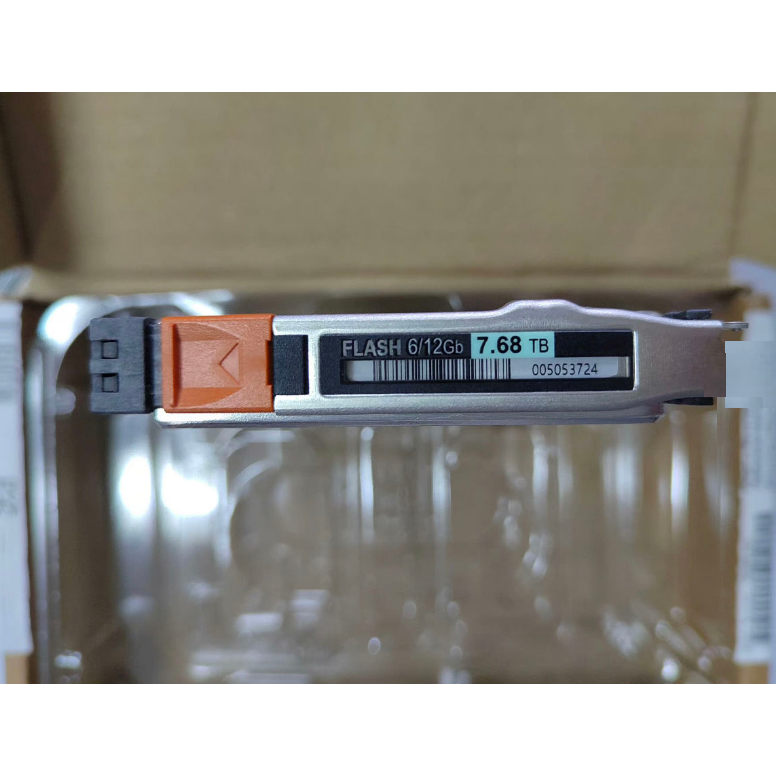

EMC 118000742 (part number: 005053081, disk body model PM1723B) is a high-capacity enterprise grade NVMe solid-state drive with a capacity of up to 7.68TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe 4.0 interface and NVMe protocol, designed specifically for the ultimate performance requirements of modern data centers, setting new industry standards in storage density, performance, and reliability.
2、 Detailed technical specifications
Detailed specifications of parameter categories
Basic Information
EMC part number 118000742
Alternative part number 005053081
Disk model PM1723B
Flash technology 3D TLC NAND
Interface protocol NVMe 1.4 over PCIe 4.0
Appearance specification 2.5 inches U.2 (15mm thickness)
Capacity information
Nominal capacity 7.68TB
User available capacity ≈ 7.0TB
performance parameters
Sequential read speed 7100 MB/s
Sequential write speed 4300 MB/s
4K random read 1500000 IOPS
4K random write 320000 IOPS
Read/write delay: Read<65 μ s, write<9 μ s
Reliability parameters
Durability level 3 DWPD
Service life 84 PBW
Mean time between failures 2500000 hours
Annual failure rate 0.35%
Warranty Policy 5-year Limited Warranty
3、 Core Technologies and Characteristics
1. Innovative architecture design
PCIe 4.0 x4 interface, providing a transfer rate of 16 GT/s
Support multiple namespaces and SRIOV virtualization
Optimized parallel processing architecture
High performance low-power controller
2. Enterprise level reliability engineering
Enhanced power-off protection: multi-layer supercapacitor array
End to end data protection: complete data path protection
Advanced LDPC Error Correction: Fourth Generation LDPC Error Correction Technology
Intelligent Health Monitoring: Real time Flash Health Management System
3. Intelligent management function
Hot swappable support: Compliant with NVMe hot swappable standards
Telemetry: Real time performance monitoring and analysis
Intelligent Temperature Control: Multi zone Dynamic Temperature Management
Remote management: NVMe MI 1.2 management interface
4、 Compatibility information

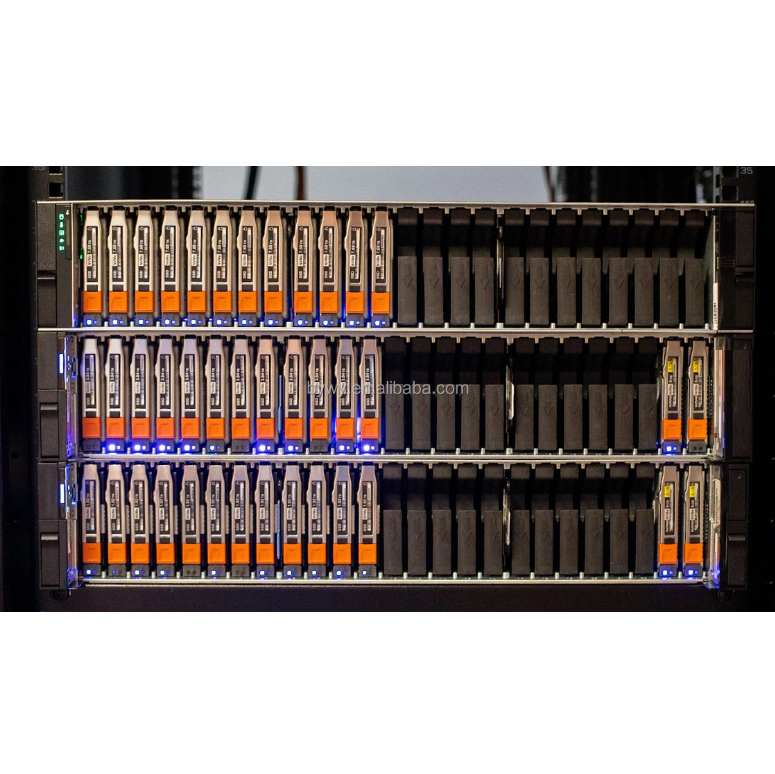

Supported Dell EMC Systems:
PowerMax 2500/8500 Full Flash Array
Unity XT 680F/880F hybrid storage
PowerEdge MX series modular servers
VxRail P-series hyper fusion system
Software environment support:
VMware HANA 7.0 U3 and above
Windows Server 2022
Red Hat Enterprise Linux 8.5 and above
SUSE Linux Enterprise Server 15 SP3
5、 Recommended application scenarios
1. Ultra large scale data center
Hyper converged infrastructure
Software defined storage platform
Cloud service provider infrastructure
2. Key business of the enterprise
Ultra large database system
Enterprise level data warehouse
Key business application storage
3. Artificial Intelligence and Big Data
AI training platform storage
Machine learning workloads
Big data analysis platform
4. High performance computing
Scientific research computation
Financial modeling analysis
4K/8K video processing
6、 Summary of Product Advantages
Capacity advantage
Industry leading storage density
Optimized spatial efficiency
Significantly reduce overall cost of ownership
performance advantage
PCIe 4.0 Ultimate Performance
Ultra low latency response
Excellent throughput capability
Reliability advantage
Enterprise level durability design
A comprehensive data protection mechanism
Predictive maintenance capability
7、 Environmental specifications
Parameter specifications
Working temperature: 0 ° C to 55 ° C
Storage temperature -40 ° C to 85 ° C
Working humidity 5% to 95% non condensing
Working altitude 3050 meters
Typical power consumption 14-16W
Maximum power consumption 26W
Impact resistance 1000G (0.5ms)
