EM-C Powerstore Hard Driver NVME SSD 1.92TB 005053077/MZ-WLL1T9C/118000740

EMC Enterprise NVMe Solid State Drive - Model 118000740 Product Details

1、 Product Overview

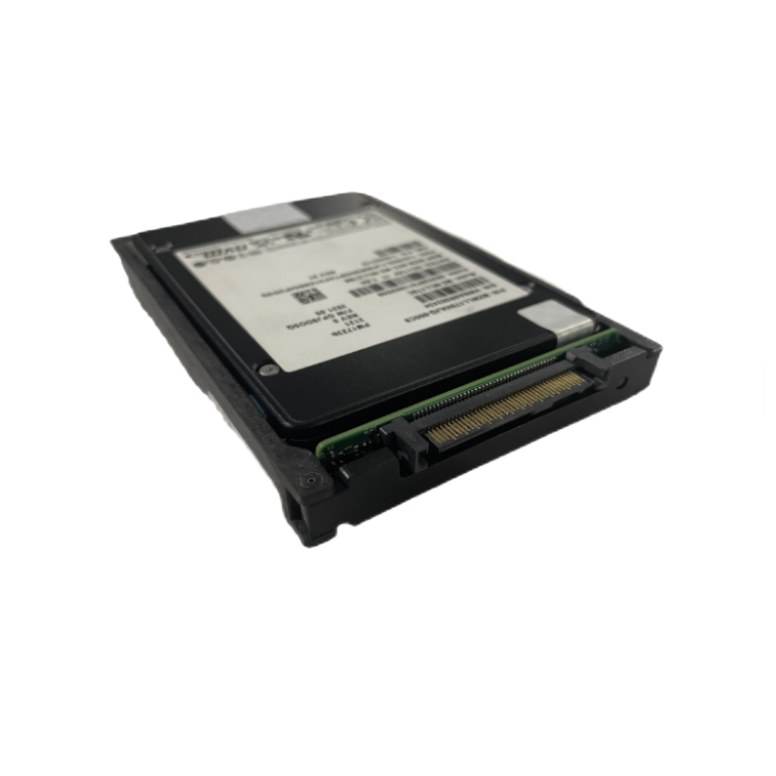

      EMC 118000740 (disk body model PM1723B) is a high-performance enterprise grade NVMe solid state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology, based on PCIe 4.0 interface and NVMe protocol, designed specifically for high demand workloads in modern data centers, achieving a perfect balance between performance, reliability, and cost-effectiveness.

2、 Detailed technical specifications

      Detailed specifications of parameter categories

      Basic Information

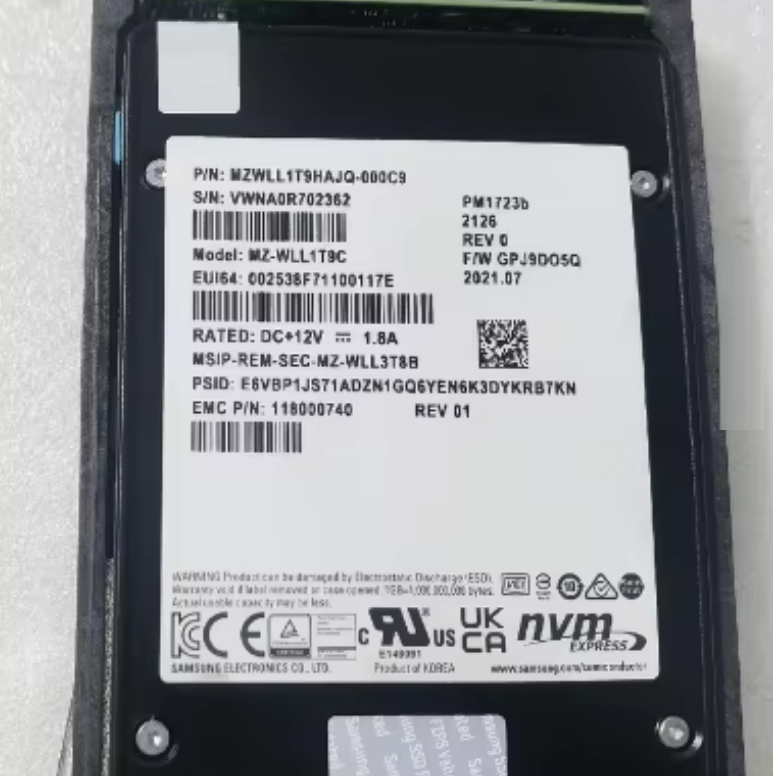

      EMC part number 118000740

      Disk model PM1723B

      Flash technology 3D TLC NAND

     Interface protocol NVMe 1.4 over PCIe 4.0

     Appearance specification 2.5 inches U.2 (7mm thickness)

     Capacity information

     Nominal capacity 1.92TB

     User available capacity ≈ 1.75TB

     performance parameters

     Sequential read speed 6800 MB/s

     Sequential write speed 3500 MB/s

     4K random read 950000 IOPS

     4K random write 220000 IOPS

      Read/write delay: Read<70 μ s, write<12 μ s

     Reliability parameters

    Durability level 3 DWPD

   Service life 10.5 PBW

    Mean time between failures 2500000 hours

     Annual failure rate 0.35%

     Warranty Policy 5-year Limited Warranty

3、 Core Technologies and Characteristics

1. High performance architecture

     PCIe 4.0 x4 interface, providing a transfer rate of 16 GT/s

     Support multiple namespaces and SRIOVs

     Optimized parallel processing architecture

     Low power and high-performance controller

2. Enterprise level reliability

     Full path power-off protection: enhanced supercapacitor

     End to end data protection: complete data integrity verification

      Advanced LDPC Error Correction: Fourth Generation LDPC Error Correction

     Intelligent Health Monitoring: Real time Flash Health Management

3. Intelligent management function

     Hot swappable support: Compliant with NVMe hot swappable standards

     Telemetry: Real time performance monitoring

     Intelligent temperature control: Multi zone temperature sensor

     Remote management: NVMe MI 1.1 management interface

4、 Compatibility information

     Supported Dell EMC Systems:

     PowerMax 2500/8500 Full Flash Array

     Unity XT 380F/480F/680F/880F

    PowerEdge MX series servers

     VxRail P Series/V Series

    Software environment support:

     VMware HANA 7.0 U2 and above

     Windows Server 2022

      Red Hat Enterprise Linux 8.4 and above

      SUSE Linux Enterprise Server 15 SP3

5、 Recommended application scenarios

1. Key business of the enterprise

       Medium sized database systems (Oracle, MySQL)

      Virtualization platform storage

       Enterprise Application Server

2. Cloud computing environment

      Private cloud storage infrastructure

      Hybrid cloud storage solution

     Cloud native application storage

3. Data analysis

     Real time data processing

     Business Intelligence Analysis

     Machine learning inference workload

4. Virtualization deployment

     Virtual Desktop Infrastructure (VDI)

     Server virtualization

     Container platform storage
