For Netapp 108-00741 108-00857 108-00743 108-00745 108-00746 108-00744 108-00843 108-00883 108-00902 Nvme SSD

NetApp Enterprise NVMe Solid State Drive -108-00883 (X4019A, PM1723B) Product Introduction

Overview

        NetApp 108-00883 (part number X4019A, disk body model PM1723B) is a high-  capacity high-performance NVMe solid-state drive launched by NetApp. This model offers a capacity of 15.36TB, uses a 2.5-inch U.2 interface, and is based on PCIe 4.0  technology. It is specifically designed for NetApp AFF all flash arrays, providing excellent performance and reliability for enterprise level massive data storage.

       Core specifications and features

       Project Specification Description

       NetApp model 108-00883

       Part number X4019A

        Disk model PM1723B

        Capacity: 15.36TB

         Interface protocol NVMe 2.0, PCIe 4.0 x4

        Appearance specification 2.5 inches U.2 (SFF-8639)

        NAND type 96 layer 3D TLC NAND

         Durability/Durability 3 DWPD (daily full disk write count during 5-year warranty period)

         Total 84.0 PBW (lifetime write)

         Performance sequential reading: up to 6500 MB/s

         Sequential writing: up to 3800 MB/s

         Random read: 1200000 IOPS (4K)

          Random Write: 250000 IOPS (4K)

           Delay reading delay 95

            Write latency 20

            Power consumption activity power consumption 22W

            Idle power consumption 6W

            Reliability index MTBF  2.5 million hours

            UBER 1e

            Technical Features

            1. Ultra large capacity design

            Adopting high-density 3D TLC NAND technology

            Support intelligent capacity management

             Optimized space utilization

              2. Performance characteristics

              PCIe 4.0 interface provides high-performance bandwidth

              Support multi queue deep operations

               Adaptive read-write optimization

               3. Reliability characteristics

               Enhanced power protection circuit

               End to end data integrity protection

                Intelligent bad block management

               4. Management function

              Support NVMe management interface

              Real time health status monitoring

              Predictive Failure Analysis

              Remote diagnostic support

              system compatibility

              Support platform:

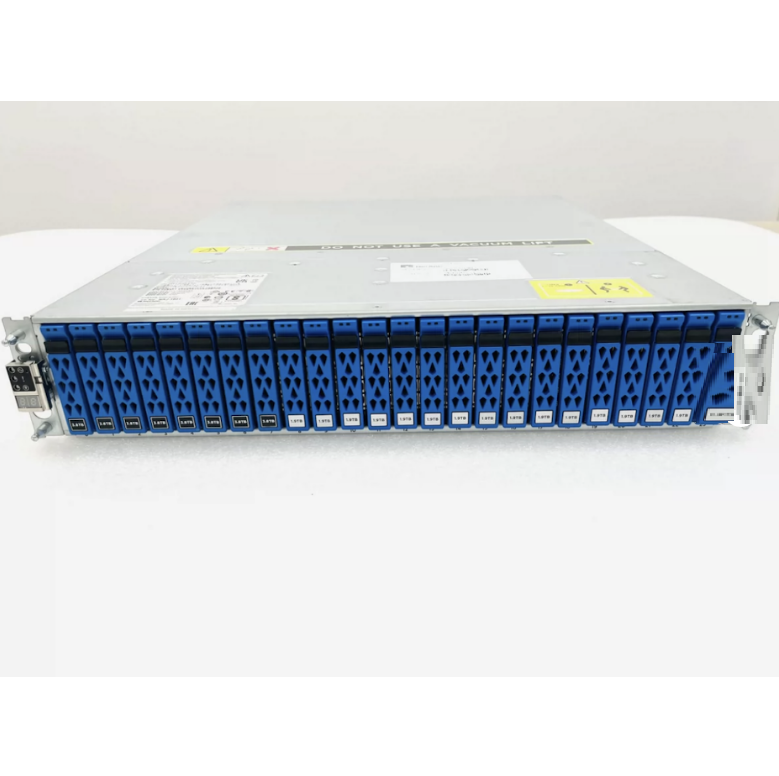

              AFF A Series Full Flash Array

              AFF C Series Full Flash Array

              FAS9500 series hybrid array

             System requirements:

             ONTAP 9.11.1 or higher version

             Recommended ONTAP 9.12.1+

             Management tools:

            NetApp System Manager

           Active IQ Unified Manager

           ONTAPI Command Line Interface

           Applicable scenarios

           1. Big data storage

          Massive data warehouse

          Data analysis platform

          Business Intelligence System

           2. Media and Entertainment

           4K/8K video editing

         Media Asset Management System

        Content Distribution Network

        3. Virtualization environment

          Large scale VDI deployment

          Cloud infrastructure

          Container storage

         4. Backup and Archive

         Enterprise level backup system

         Long term data archiving

         Compliant storage
