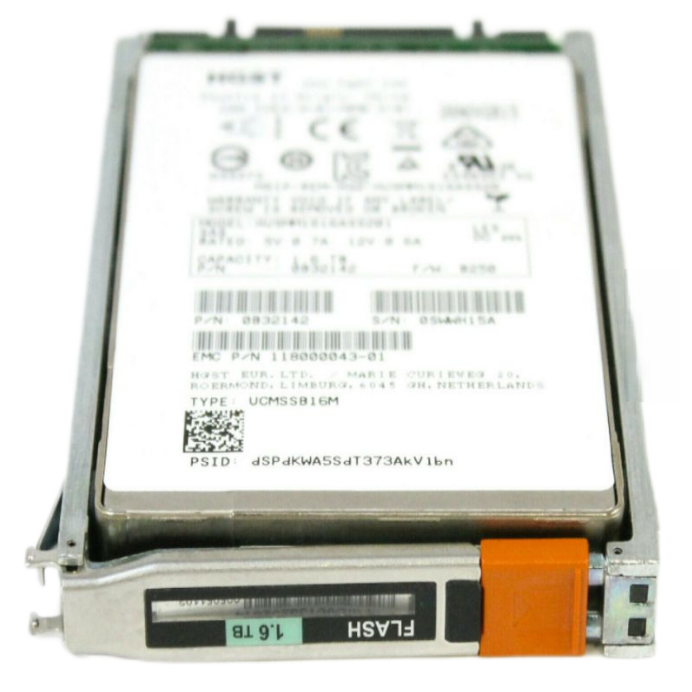

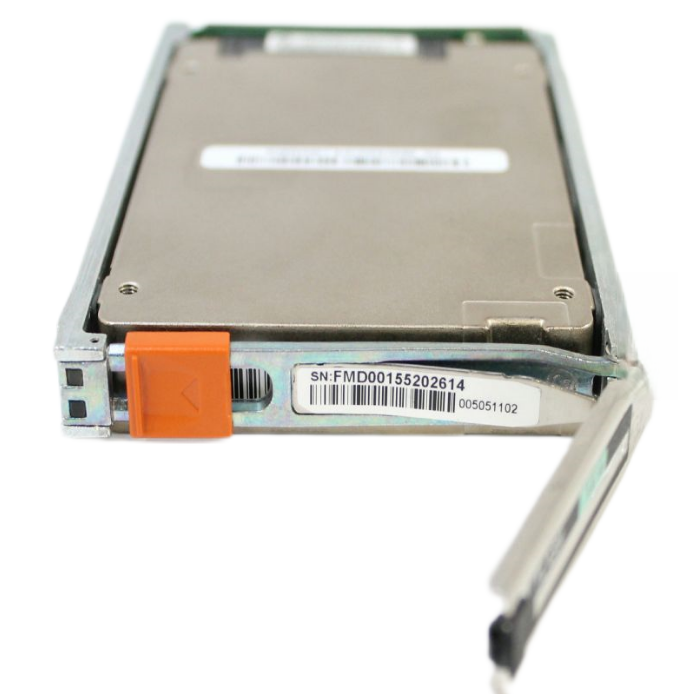

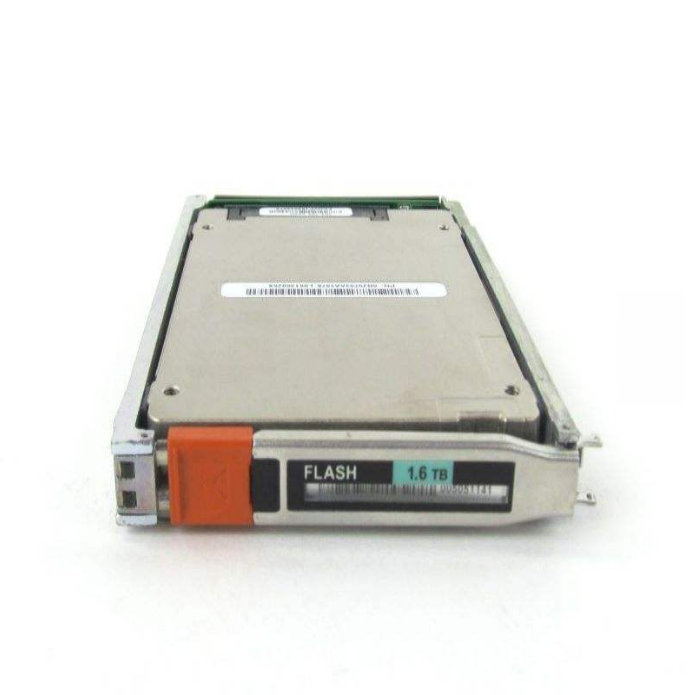

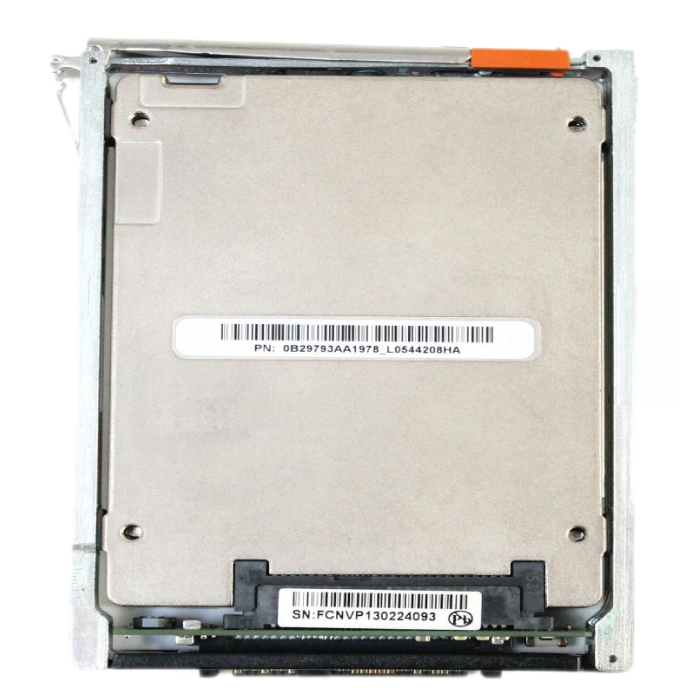

118000043-01 Solid State Drive 1.6TB Capacity SAS 12Gb/s Enterprise-Level SSD High-Speed Read/Write

Product Overview

1.Core Title

118000043-01 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 1.6TB of storage capacity. This hard drive is designed specifically for enterprise level storage systems, providing high-performance and high reliability storage solutions for critical business applications.

2.Core specification parameters

Project Specification Description

Brand and Model 118000043-01

Interface type SAS-3 (12.0 Gb/s)

Appearance specification 2.5 inches

Rated capacity 1.6 TB

Flash memory type MLC NAND

Sequential reading of performance indicators: 1200 MB/s

Sequential writing: 800 MB/s

3.Performance characteristics

High performance:

Highest sequential read speed: 1200 MB/s

Highest sequential write speed: 800 MB/s

Random read performance: up to 180000 IOPS

Random write performance: up to 45000 IOPS

Average access latency:<150 μ s

Enterprise level durability:

Daily full disk write count: 10 DWPD

Total number of bytes written: 29.2 TBW

Support continuous operation 24/7

Design service life: 5 years

Data protection mechanism:

End to end data path protection

Advanced Power Failure Protection (PLP)

Multi-layer ECC error correction technology

Wear balance algorithm

4.Technical characteristics

Interface specifications:

SAS-3 (12.0 Gb/s) standard interface

Dual port redundancy design

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path I/O

Power management:

Typical working power consumption: 8-12W

Standby power consumption: 4W

Advanced energy-saving mode

Dynamic power consumption regulation

Environmental adaptability:

Working temperature range: 0°C to 55°C

Storage temperature range: -40°C to 70°C

Working humidity range: 5% to 95% RH

Anti vibration performance meets enterprise level standards

5.System compatibility

Support platform:

Unity series storage system

VNX series storage system

VMAX series storage systems

Other storage platforms compatible with SAS-3 interface

6.Application scenarios

Key business applications:

Enterprise level databases (Oracle, SQL Server)

Virtualization infrastructure storage

Email server storage

Data intensive applications:

File sharing storage

Backup and Archive System

Real time data processing system

Enterprise Infrastructure:

Cloud infrastructure storage

Virtual Desktop Infrastructure (VDI)

Disaster recovery backup system

7.Management and maintenance functions

Monitoring diagnosis:

Real time S.M.A.R.T. status monitoring

Temperature sensing and overheat protection

Service life prediction analysis

Detailed performance indicator record

Maintenance features:

Online hot plug support

Seamless firmware upgrade

Remote management function

Automatic diagnostic tool

8.Service Support

Technical Support: Professional Technical Support Team

Service options: 4-hour on-site service optional

9.Physical specifications

Dimensions: 100.0 × 69.85 × 14.8 mm

Product weight: approximately 150g

Interface type: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable tray
