118000178-03 Solid State Drive 800GB Capacity PCIe NVMe Protocol 303-404-000A Storage Rack Dedicated Enterprise Class Disk Body

Product Overview

1.Core Title

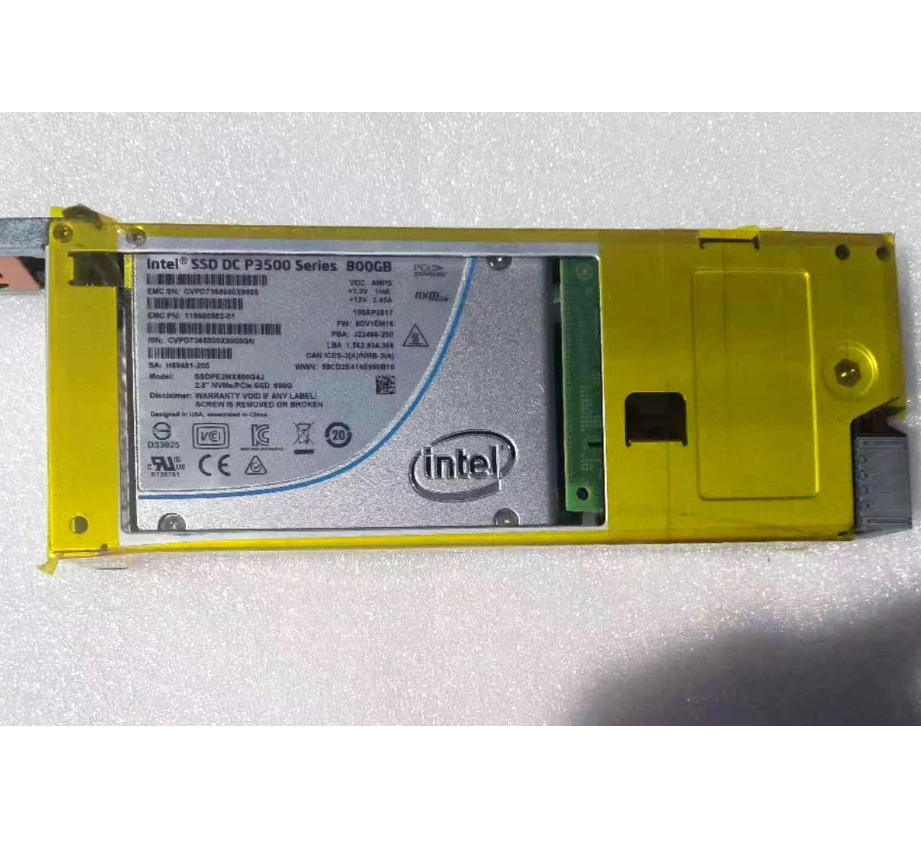

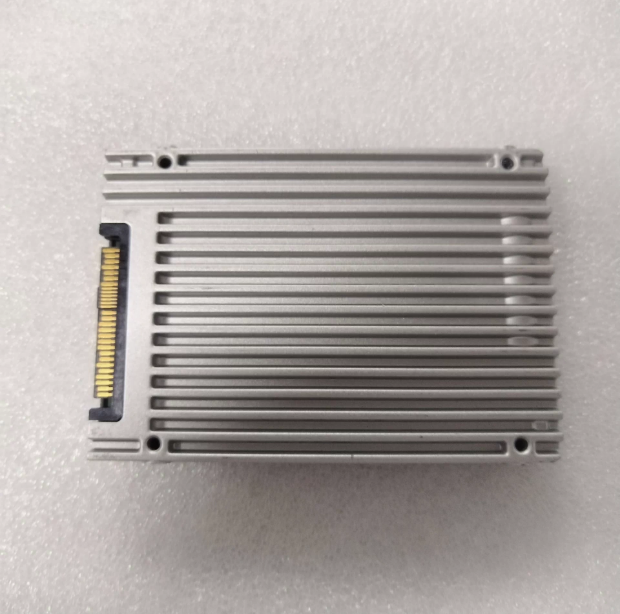

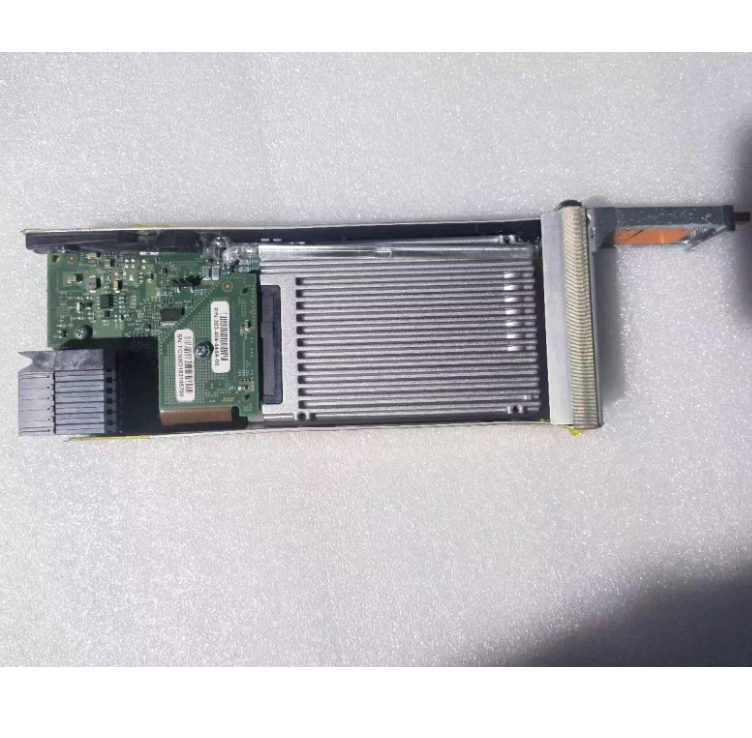

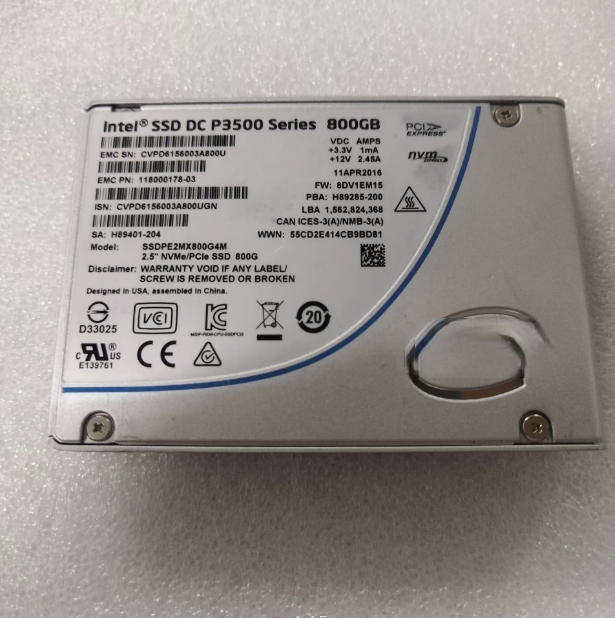

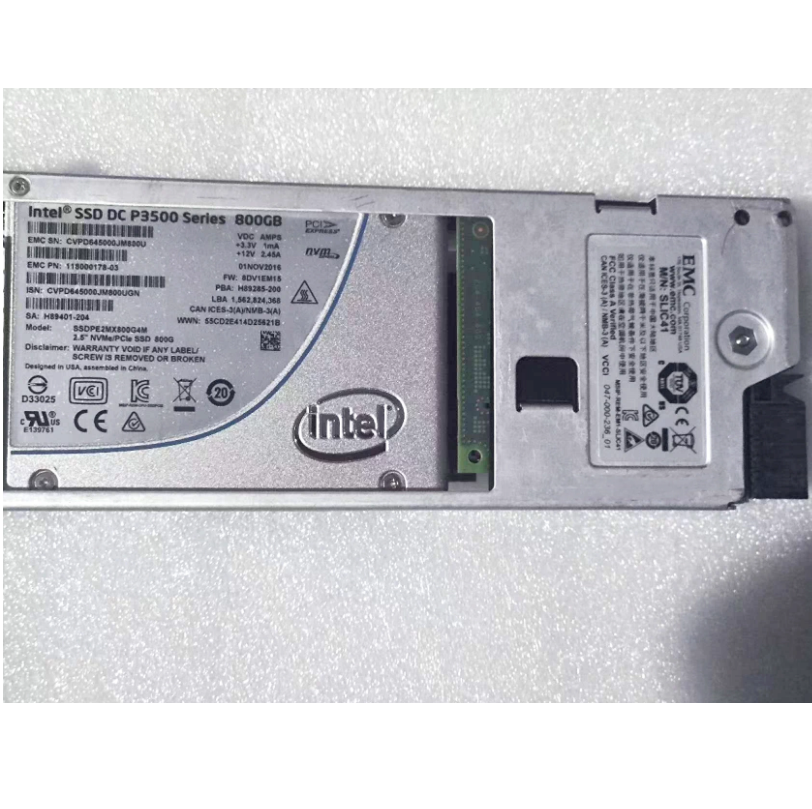

118000178-03 is a high-performance enterprise grade NVMe solid-state drive that features PCIe 3.0 interface and U.2 (2.5-inch) form factor specifications, providing 800GB of storage capacity. This hard drive is equipped with Intel Enterprise NVMe drive body, optimized for the 303-404-000A storage expansion shelf in PowerEdge series servers and storage systems, providing ultra-high performance and ultra-low latency storage solutions for critical business applications in enterprises.

2.Core specification parameters

Project Specification Description

Brand and Model 118000178-03

Compatible expansion shelf 303-404-000A

Disk manufacturer Intel

Interface type NVMe over PCIe 3.0 x4

Exterior specification U.2 (2.5 inches)

Rated capacity 800 GB

Flash memory type 3D NAND

Sequential reading of performance indicators: 3200 MB/s

Sequential writing: 1200 MB/s

3.Performance characteristics

Ultra-high performance:

Highest sequential read speed: 3200 MB/s

Highest sequential write speed: 1200 MB/s

Random read performance: up to 500000 IOPS

Random write performance: up to 100000 IOPS

Average access latency:<20 μ s

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 4.38 TBW

Support continuous operation 24/7

Design service life: 5 years

Advanced data protection:

End to end data path protection

Advanced Power Failure Protection (PLP)

LDPC Error Correction Technology

Wear balance algorithm

4.Technical characteristics

Interface specifications:

PCIe 3.0 x4 interface

NVMe 1.3 protocol

U. 2 (SFF-8639) interface

Support multiple namespaces

Power management:

Typical working power consumption: 8-12W

Standby power consumption: 4W

dynamic power management

Advanced Thermal Management

Environmental adaptability:

Working temperature range: 0°C to 70°C

Storage temperature range: -40°C to 85°C

Working humidity range: 5% to 95% RH

5.System compatibility

Support platform:

PowerEdge series servers

VxRail hyper fusion system

EMC storage systems supporting NVMe protocol

Storage expansion shelf:

Specially designed for optimizing the storage expansion shelf of 303-404-000A

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

High performance computing:

Enterprise level database acceleration (Oracle, SQL Server)

Virtualization infrastructure

Cloud computing platform

Key business applications:

Real time data analysis

High frequency trading system

Virtual Desktop Infrastructure (VDI)

Data intensive applications:

Big data analysis platform

Artificial Intelligence/Machine Learning

Media content processing

7.Management and maintenance functions

Monitoring diagnosis:

NVMe Management Interface (NVMe MI)

Real time temperature monitoring

S. M.A.R.T. status monitoring

service life prediction

Maintenance features:

Online hot plug support

Seamless firmware upgrade

Remote management function

Automatic diagnostic tool

8.Service Support

Technical Support: Professional Technical Support Team

9.Physical specifications

Dimensions: 100.0 × 69.85 × 14.8 mm

Product weight: approximately 150g

Interface type: U.2 (SFF-8639)

Installation method: 2.5-inch hot swappable tray
