005053079 MZ-WLL3T8C 118000741 MZWLL3T8HAJQ-000C9 PM1723b 3.84TB MVMe SSD in Stock for EMC

NETAPP Enterprise NVMe Solid State Drive - Model 118000741 (005053079) Product Details

1、 Product Overview

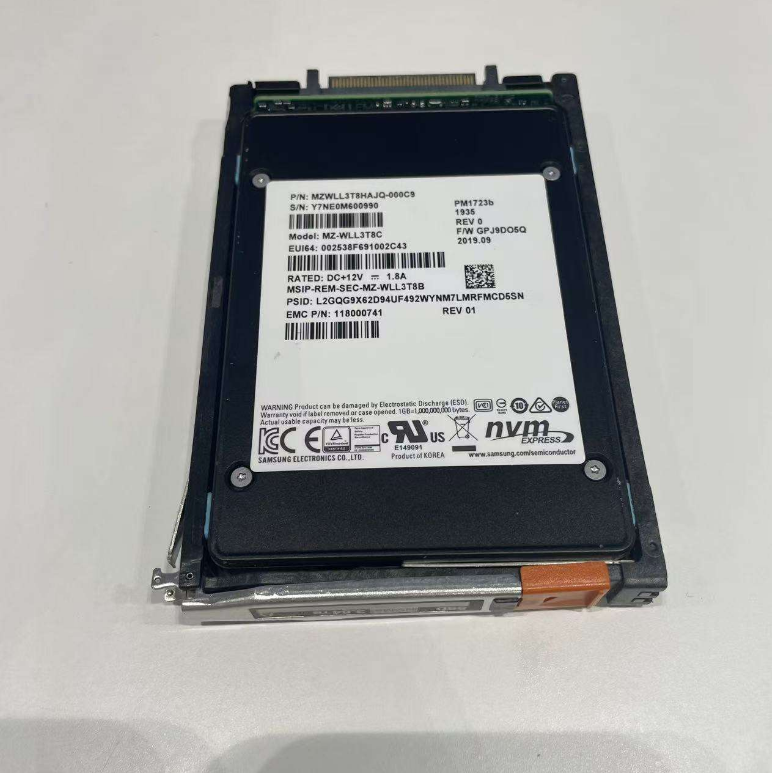

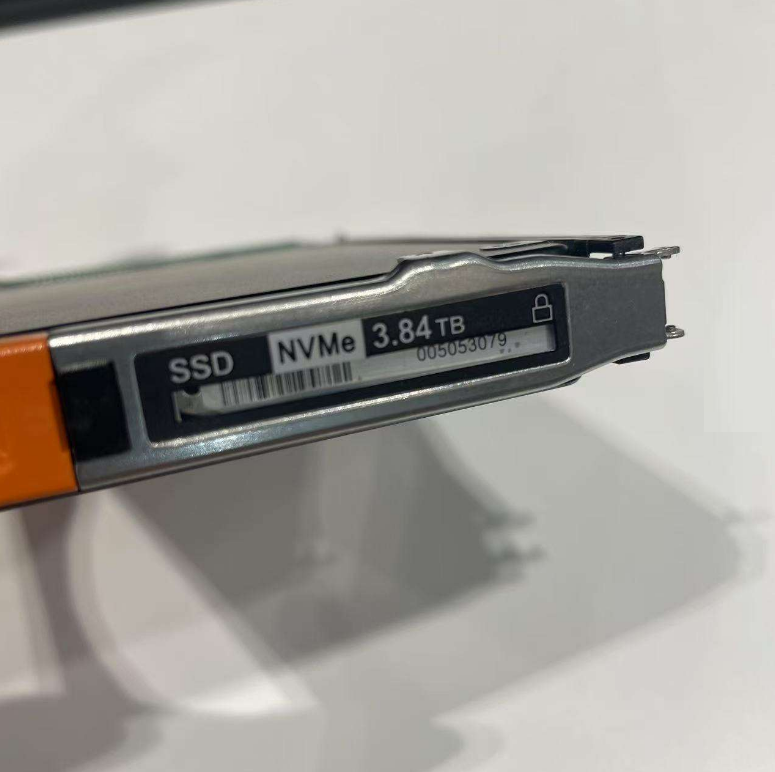

        NETAPP 118000741 (disk model PM1723B) is a high-performance enterprise grade NVMe solid state drive with a capacity of 3.84TB. The product uses advanced 3D TLC NAND flash technology and is designed specifically for modern enterprise workloads, achieving excellent balance in performance, capacity, and reliability, making it suitable for a variety of data intensive application scenarios.

2、 Detailed technical specifications

       Parameter Category Detailed Specification Remarks

       Basic Information

       NETAPP part number 118000741 main identification code

       Auxiliary part number 005053079 spare identification code

       Disk model PM1723B physical disk identification

       NVMe over PCIe 4.0 interface protocol latest interface standard

       Appearance specification 2.5 inches U.2 (SFF-8639) enterprise standard

        Capacity information

        Nominal capacity 3.84TB original capacity

        Available capacity ≈ 3.5TB considering RAID and system overhead

         performance parameters

        Sequential read speed 6500 MB/s PCIe 4.0 performance

        Sequential write speed 3800 MB/s Continuous write performance

        4K random read 900000 IOPS high queue depth

        4K Random Write 250000 IOPS Random Write Performance

        Read/write latency reading<70 μ s, write<12 μ s low latency performance

        Reliability parameters

        Durability level 5 DWPD daily full disk write count

        Service life 35 PBW lifetime write capacity

        Mean time between failures 2500000 hours

3、 Core Technologies and Characteristics

1. High performance architecture

      PCIe 4.0 x4 interface, doubled bandwidth

       Optimized NVMe protocol stack

        Support multi namespace isolation

        dynamic power management

2. Enterprise level reliability

       Advanced power-off protection: multi-layer data protection mechanism

       End to end data integrity: complete CRC check

       Intelligent Error Recovery: Automatic Error Detection and Repair

        Wear Balance Algorithm: Extending Flash Memory Life

3. Intelligent management function

        Hot swappable support: online maintenance capability

        S. M.A.R.T. Enhanced Monitoring: Predictive Fault Analysis

        Temperature adaptive adjustment: intelligent temperature control management

         Remote management support: NVMe MI standard management interface

4、 Compatibility information

         Supported NetApp systems:

          AFF A-series Full Flash Array: A250, A400, A800

         FAS9500 series hybrid storage system

        Supports ONTAP 9.8 and higher versions

         Physical compatibility:

         Standard 2.5-inch disc position

          DS224C, DS460C disk rack

         Support hot swappable installation

5、 Recommended application scenarios

1. High performance computing

         Real time data analysis

        AI/machine learning workloads

         Scientific computing simulation

2. Key applications for enterprises

        Large scale database systems (Oracle, SQL Server)

         ERP system storage

       Virtualization infrastructure

3. Cloud service environment

        Private cloud storage platform

        Hybrid cloud storage solution

        Container persistent storage
