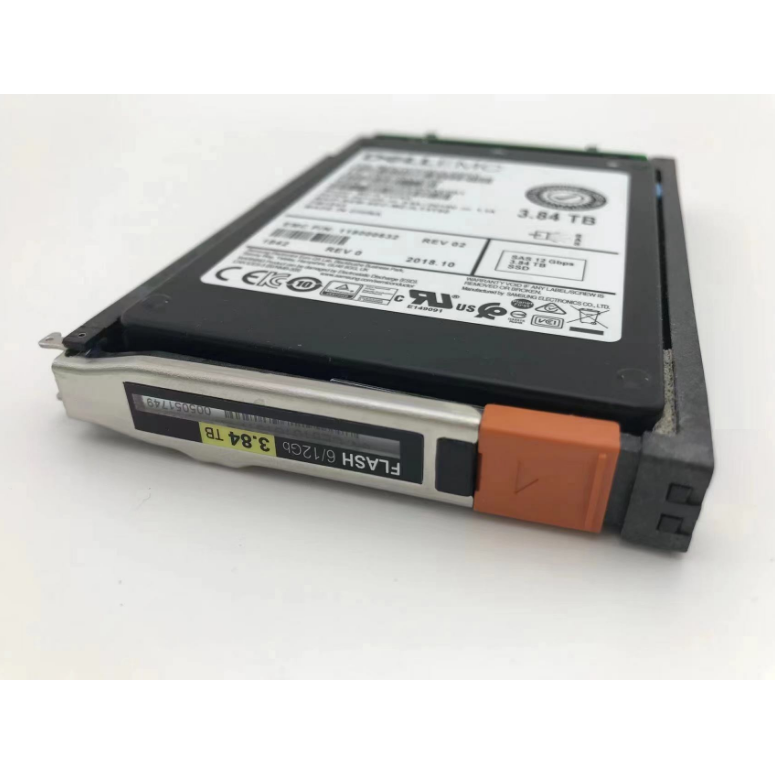

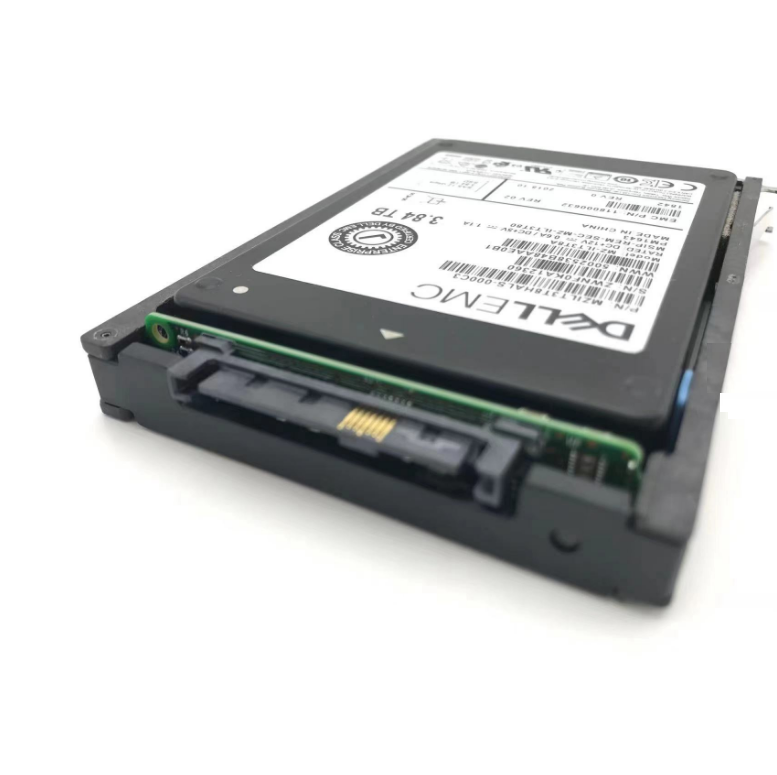

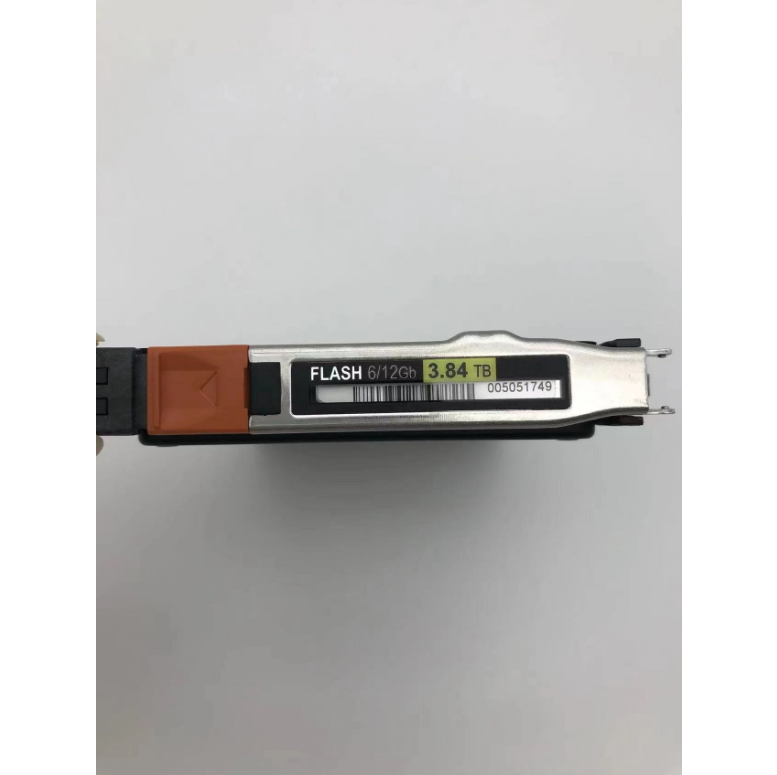

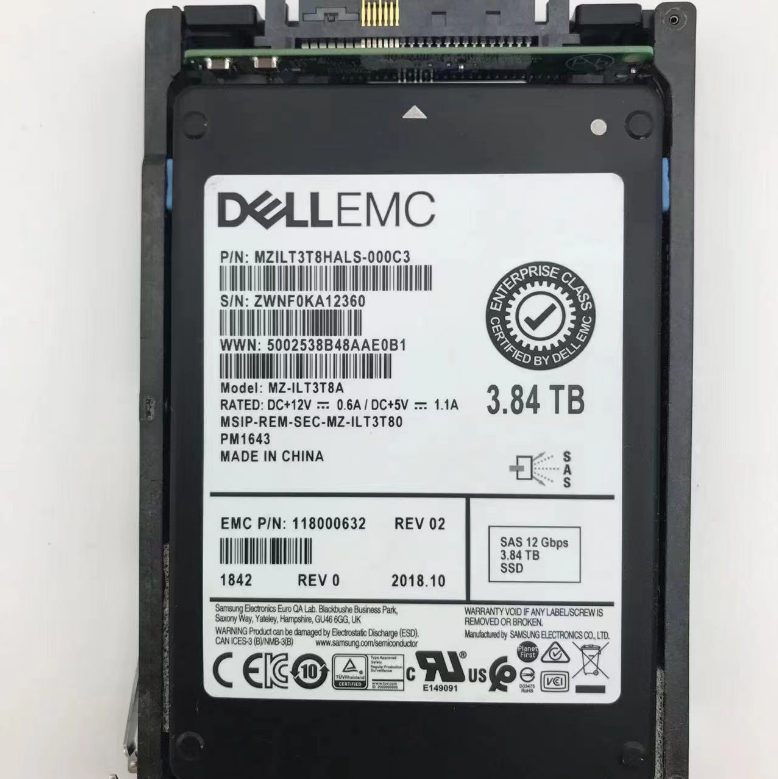

SSD Hard Disk 005053159 Vmax3 3.84tb 2.5 "SAS SSD SSD for Vmax Vmax3- MZ-ILT3T8A PN:118000632

    EMC Enterprise NVMe Solid State Drive - Model 118000632/005053159 Product Detailed Description

1. Product Overview

        The EMC 118000632 (Alternative Part Number: 005053159, Drive Model PM1643) is a high-performance enterprise-grade NVMe solid-state drive with a capacity of 3.84TB. Utilizing advanced 3D TLC NAND flash technology, this product is based on the PCIe 3.0 interface and NVMe protocol, delivering exceptional storage performance and reliability for enterprise workloads. It serves as an ideal storage solution for building modern data centers.

II. Detailed Technical Specifications

      Parameter Category  Detailed Specifications

     Basic Information

     EMC Component No. 118000632

     Alternate part number 005053159

     Disk Model: PM1643

     Flash memory technology 3D TLC NAND

      Interface Protocol: NVMe 1.3 over PCIe 3.0

      Physical Dimensions: 2.5-inch U.2 (15mm thickness)

      Capacity Information

      Nominal Capacity: 3.84TB

       Available user capacity ≈3.5TB

       Performance parameters

      Sequential read speed: 3,400 MB/s

      Sequential write speed 2,000 MB/s

      4K Random Read 700,000 IOPS

     4K Random Write 170,000 IOPS

      Read and Write Latency: Read <90μs, Write <18μs

       Reliability parameters

       Durability Class: 3 DWPD

      Service life 21 PBW

      Mean Time Between Failures: 2,000,000 hours

      Annual failure rate: 0.44%

      Warranty Policy: 5-Year Limited Warranty

III. Core Technologies and Features

1. High-Performance Architecture Design

     PCIe 3.0 x4 interface, providing 32 Gbps bandwidth

    Optimized NVMe 1.3 Protocol Stack

    High-performance flash memory controller

    Support for multiple namespaces

2. Enterprise-level reliability

    Power failure protection mechanism: Super capacitor data protection

    End-to-end data protection: comprehensive data integrity verification

     Advanced LDPC Error Correction: Powerful Error Correction Capability

     Smart Wear Leveling: Dynamic Block Management and Garbage Collection

3. Smart Management Features

     Hot-swap support: Compliant with NVMe hot-swap standards

     Health Status Monitoring: Enhanced S.M.A.R.T

     Temperature Management: Dynamic Thermal Regulation

     Remote Management: Supports NVMe-MI Management Interface

4、 Compatibility information

    Supported Dell EMC Systems:

     Unity Series Storage Arrays (Unity 350F/450F/550F/650F)

      PowerEdge MX series servers

     VxRail E-series hyper fusion system

     PowerMax 2000/8000 series

     Operating system support:

     VMware HANA 6.7 U3 and above

     Windows Server 2019/2022

     Red Hat Enterprise Linux 7.9/8.4

     SUSE Linux Enterprise Server 15 SP2

5、 Recommended application scenarios

1. Key business of the enterprise

      Large scale database systems (Oracle, SQL Server)

     Virtualization platform storage

      Enterprise Application Server

2. Cloud computing environment

      Private cloud storage infrastructure

      Hybrid cloud storage solution

     Cloud native application storage

3. Data analysis

     Business Intelligence Analysis

     Big data processing platform

     Real time data processing

4. Virtualization deployment

     Virtual Desktop Infrastructure (VDI)

    Server virtualization platform

    Container platform storage

6、 Summary of Product Advantages

     performance advantage

     Balanced read and write performance

     Stable low latency response

     Good IOPS performance

     Reliability advantage

     Enterprise level durability design

     A comprehensive data protection mechanism

    Long life cycle guarantee

    cost advantage

     Optimized total cost of ownership

     High energy efficiency design

     Low maintenance cost

7、 Environmental specifications

     Parameter specifications

     Working temperature: 0 ° C to 55 ° C

    Storage temperature -40 ° C to 70 ° C

     Working humidity 8% to 90% non condensing

     Working altitude of 3000 meters

     Typical power consumption 10-12W

     Maximum power consumption 18W

     Anti vibration 5.0 Grms (5-800 Hz)
