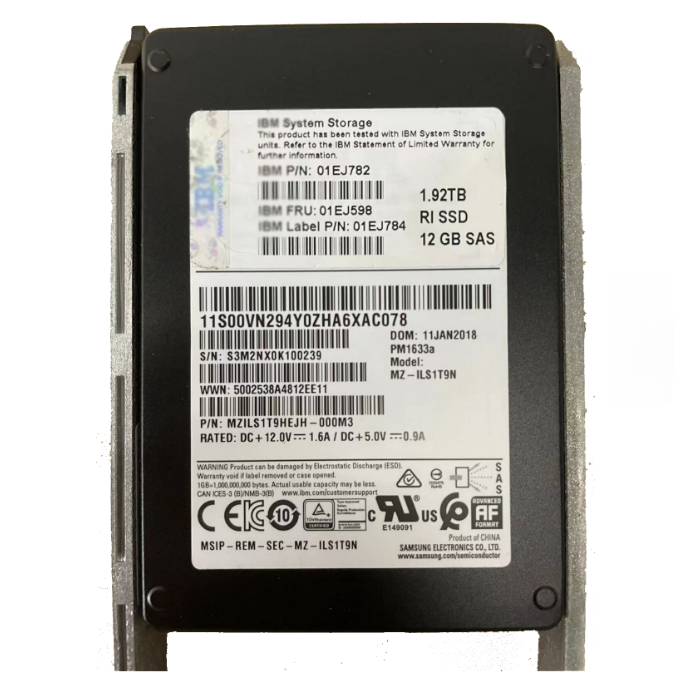

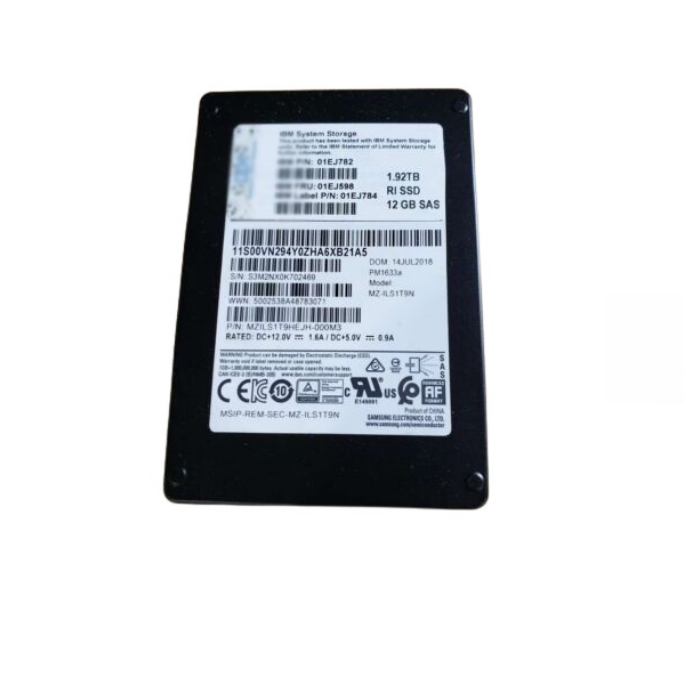

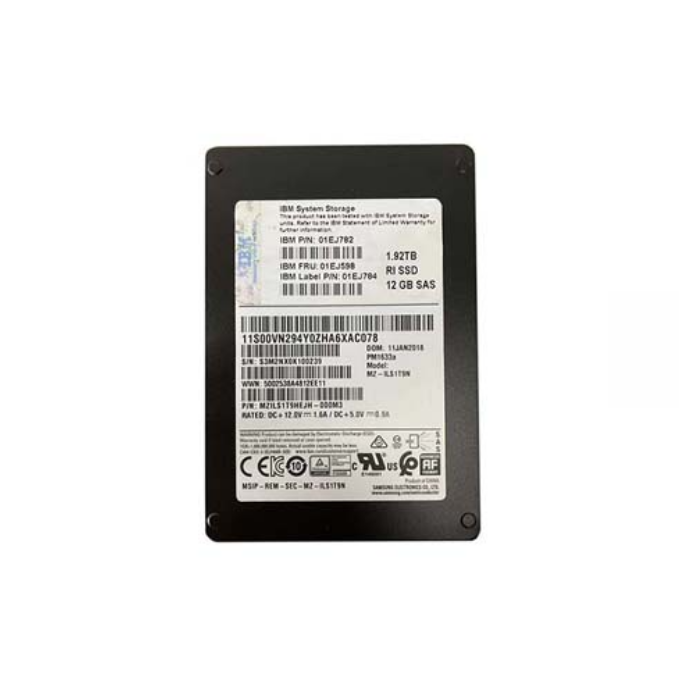

System specific 1.92TB SAS hard drive model 02PX347 PM1643A enterprise grade disk body original rack 02PX339

Product Description

1.Product Overview

Original enterprise grade hard drive | 1.92TB SAS 12Gb/s high-performance hard drive (complete component number: 02PX347-02PX339) - using PM1643A enterprise grade disk body to provide reliable storage solution for IBM servers

2.Core advantages

Double quality assurance

Adopting PM1643A enterprise grade disk body, combined with IBM's strict quality control standards, to ensure excellent reliability and stability

High speed transmission performance

Adopting SAS 12Gb/s interface, providing stable and reliable data transmission performance, with a maximum transmission rate of 1200MB/s

Enterprise level reliability

Supports 24/7 uninterrupted operation, with an average time between failures (MTBF) of 2 million hours and an annual workload of 550TB

Plug and play design

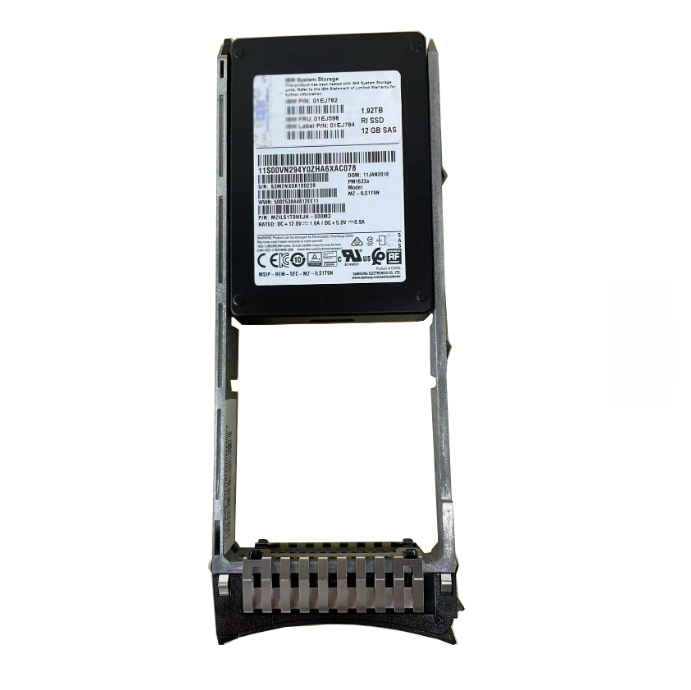

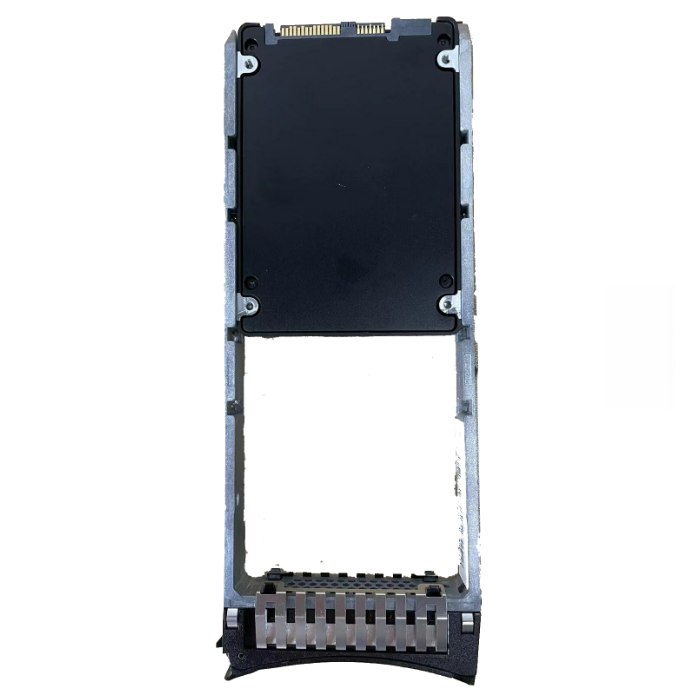

Includes original tray bracket (02PX339), can be directly installed into IBM servers for use without additional configuration

Intelligent management function

Support IBM system management tool monitoring, provide real-time health status detection and warning

3.Technical specifications

Detailed specifications of parameter categories

Hard drive model 02PX347

Bracket model 02PX339

Disk model PM1643A

Storage capacity 1.92TB

Interface standard SAS 12Gb/s

Speed 10000 RPM

Cache size 128MB

Appearance specification 2.5 inches

Average latency of 2.9ms

Workload 550TB/year

Compatible with IBM System x series servers

4.Compatible system

Perfect compatibility platform:

System x3650 M4/M5

System x3550 M4/M5

Storwize V3500/V3700

FlashSystem 7200

Other IBM systems that support SAS 12Gb/s interface

5.Application scenarios

Enterprise level application environment:

Server System Startup Disk - As an IBM Server Operating System Installation Disk

Database Cache Disk - Small and Medium sized Database Cache and Temporary File Storage

Virtualization Support Disk - Virtualization Environment System Disk and Configuration File Storage

Application Disk - Enterprise Application Installation and Running Environment

Log file storage - system log and application log storage

Backup temporary storage - Temporary storage during data backup process

6.Quality Assurance

100% original components, genuine guarantee

Pass a 72-hour continuous read and write test

Provide a complete SMART health status report

Professional technical support services

Support compatibility verification

7.Installation requirements

system requirements

A server backplane that supports SAS 12Gb/s interface is required

Firmware Version

Recommend using the latest IBM system firmware version

environmental conditions

Operating temperature: 5 ° C to 55 ° C

Storage temperature: -40 ° C to 70 ° C

Humidity: 5% to 95% non-condensing

Installation recommendations

Recommend installation and configuration by professional technicians

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation and configuration support - provide installation and configuration guidance documents

Batch purchase discount - supports enterprise level batch purchase needs

Quick Response Service - Professional Technical Support Team

Spare parts support - providing fast spare parts replacement services
