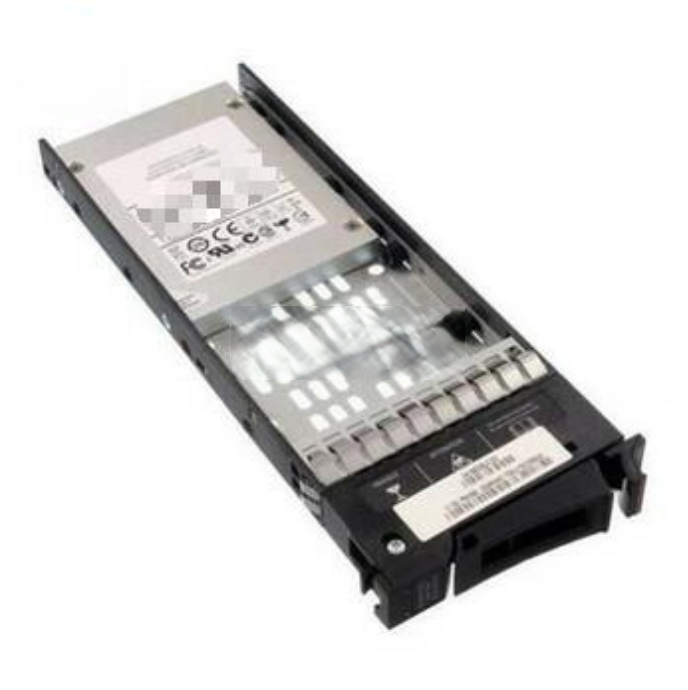

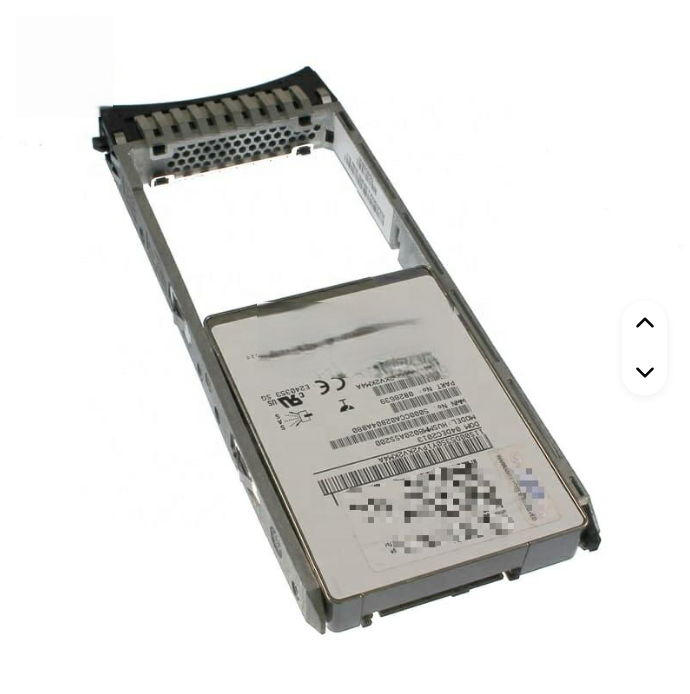

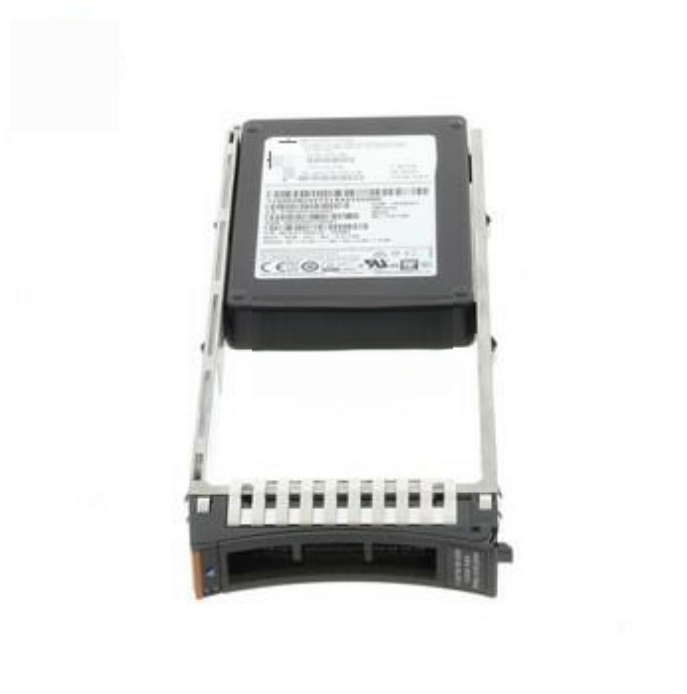

System specific 3.84TB SAS hard drive model 02YC039IPM1643 enterprise level disk body+original rack 02PX542

Product Description

1.Product Overview

Original enterprise grade hard drive | 3.84TB SAS 12Gb/s high-performance hard drive (complete component number: 02YC039-02PX542) - using IPM1643 enterprise grade disk body to provide reliable storage solution for IBM servers

2.Core advantages

Double quality assurance

Adopting IPM1643 enterprise grade disk body, combined with IBM's strict quality control standards, to ensure excellent reliability and stability

High speed transmission performance

Adopting SAS 12Gb/s interface, providing stable and reliable data transmission performance, with a maximum transmission rate of 1200MB/s

Enterprise level reliability

Supports 24/7 uninterrupted operation, with an average time between failures (MTBF) of 2 million hours and an annual workload of 550TB

Plug and play design

Includes original tray bracket (02PX542), can be directly installed into IBM servers for use without additional configuration

Intelligent management function

Support IBM system management tool monitoring, provide real-time health status detection and warning

3.Technical specifications

Detailed specifications of parameter categories

Hard disk model 02YC039

Bracket model 02PX542

Disk model IPM1643

Storage capacity 3.84TB

Interface standard SAS 12Gb/s

Speed 10000 RPM

Cache size 128MB

Appearance specification 2.5 inches

Average latency of 2.9ms

Workload 550TB/year

Compatible with IBM System x series servers

4.Compatible system

Perfect compatibility platform:

System x3650 M4/M5

System x3550 M4/M5

Storwize V3500/V3700

FlashSystem 7200

Other IBM systems that support SAS 12Gb/s interface

5.Application scenarios

Enterprise level application environment:

Data storage expansion - providing reliable capacity expansion solutions for IBM servers

Virtualized Storage - Data Storage in Virtualized Environments such as VMware and Hyper-V

Database Application - Medium sized Database Storage and Backup Solution

File Server - Enterprise File Sharing and Document Management Storage

Email System Storage - Enterprise Email System Data Storage

Backup Archive - Data Backup and Long Term Archive Storage

6.Quality Assurance

100% original components, genuine guarantee

Pass a 72 hour continuous read and write test

Provide a complete SMART health status report

Professional technical support services

Support compatibility verification

7.Installation requirements

system requirements

A server backplane that supports SAS 12Gb/s interface is required

Firmware Version

Recommend using the latest IBM system firmware version

environmental conditions

Operating temperature: 5 ° C to 55 ° C

Storage temperature: -40 ° C to 70 ° C

Humidity: 5% to 95% non condensing

Installation recommendations

Recommend installation and configuration by professional technicians

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation and configuration support - provide installation and configuration guidance documents

Batch purchase discount - supports enterprise level batch purchase needs

Quick Response Service - Professional Technical Support Team

Spare parts support - providing fast spare parts replacement services
