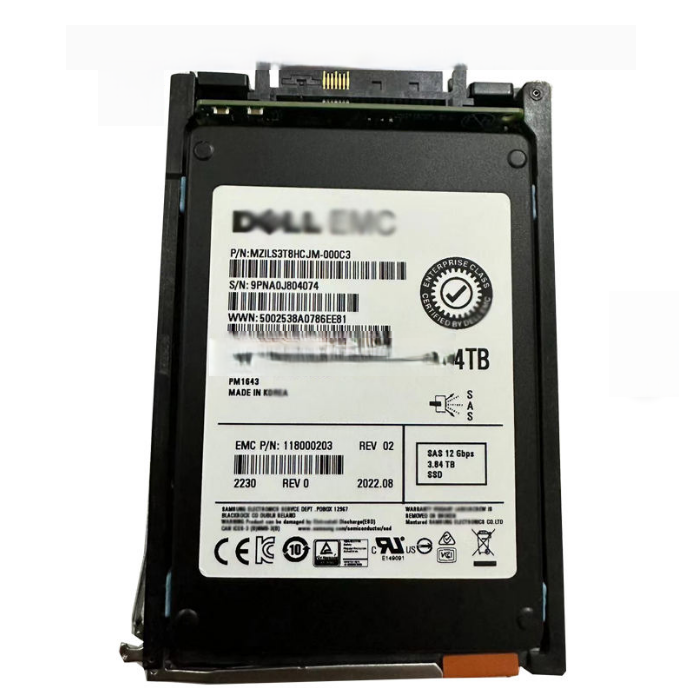

118000203 Enterprise Solid State Drive 3.84TB SAS Interface Adaptation 5051749 Storage Rack PM1633 Disk Body

Product Overview

1.Core Title

118000203 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 3.84TB of storage capacity. This hard drive is designed specifically for VMAX series storage systems, compatible with 5051749 storage expansion shelves, and uses PM1633 enterprise grade disk bodies to provide highly reliable storage solutions for critical business operations.

2.Core specification parameters

Project Specification Description

Brand and Model 118000203

Compatible with expansion shelf 5051749

Disk model PM1633

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 3.84 TB

Flash memory type MLC NAND

Read/write performance sequential read: 1500 MB/s

Sequential writing: 1000 MB/s

3.Performance characteristics

High performance:

Sequential read speed: up to 1500 MB/s

Sequential write speed: up to 1000 MB/s

Random read performance: up to 200000 IOPS

Random write performance: up to 70000 IOPS

Average latency:<120 μ s

Enterprise level durability:

Daily full disk write count: 5 DWPD

Total number of bytes written: 35 PBW (35000 TBW)

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data protection

A fail-safe mechanism

Advanced ECC Error Correction

4.Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Power consumption management:

Working power consumption: 10-15W

Standby power consumption: 5W

Support energy-saving mode

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

5.Compatibility information

Support system:

VMAX 100K/200K/400K series

VMAX All Flash Series

PowerMax series

Storage expansion shelf:

Specially optimized for 5051749 storage expansion shelf

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

Database application:

Oracle Database

Microsoft SQL Server

IBM DB2

Virtualization environment:

VMware vSphere

Microsoft Hyper-V

Red Hat Virtualization

Enterprise applications:

Large scale transaction processing system

data warehouse

High Performance Computing

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring

Health Status Report

Maintenance features:

Supports hot swapping

Online firmware upgrade

Diagnostic tool support

8.Service Support

Technical Support: Original Factory Service Support

Service level: optional 24 × 7 technical support

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 160g

Interface: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable bracket
