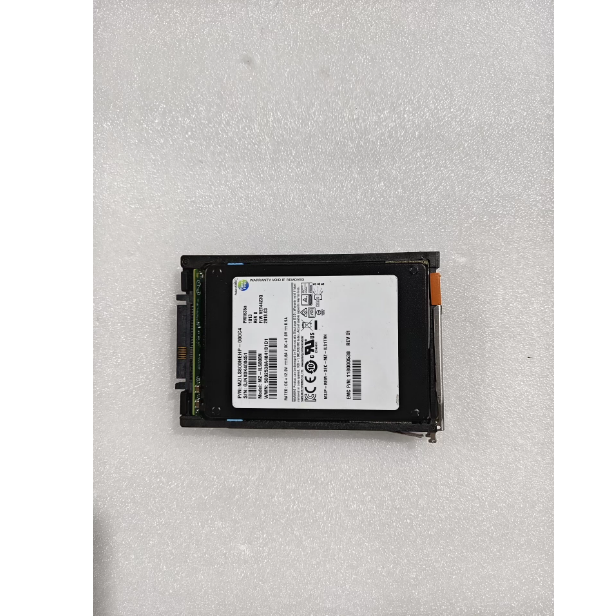

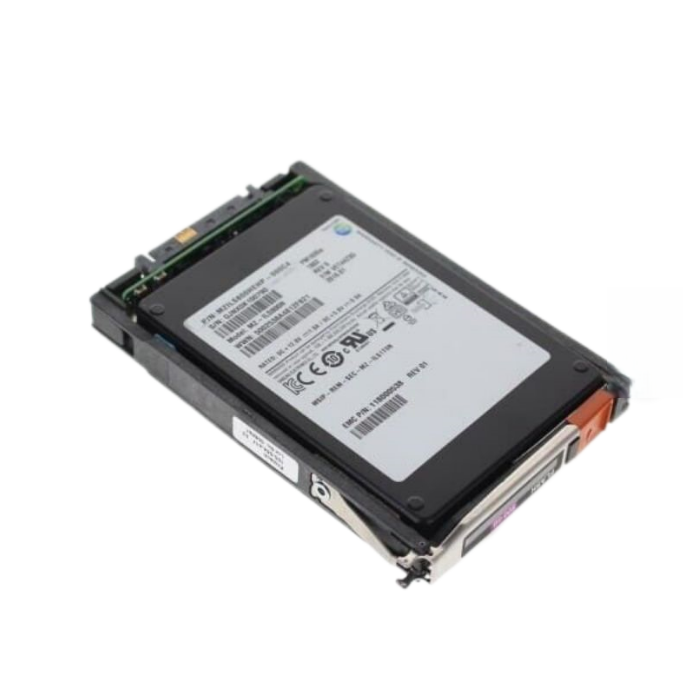

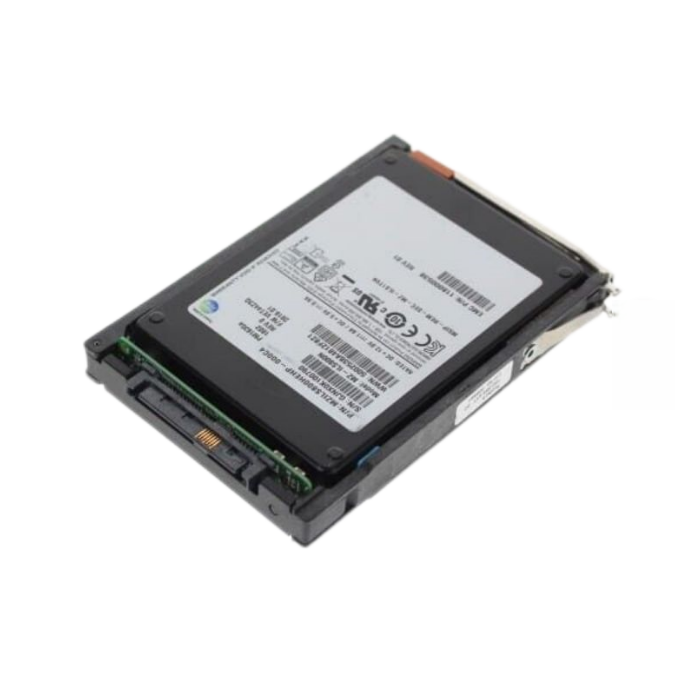

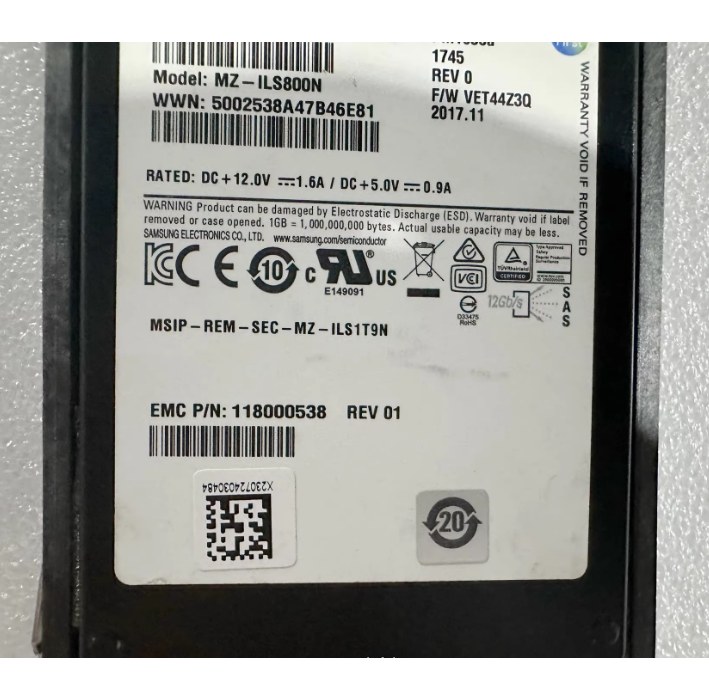

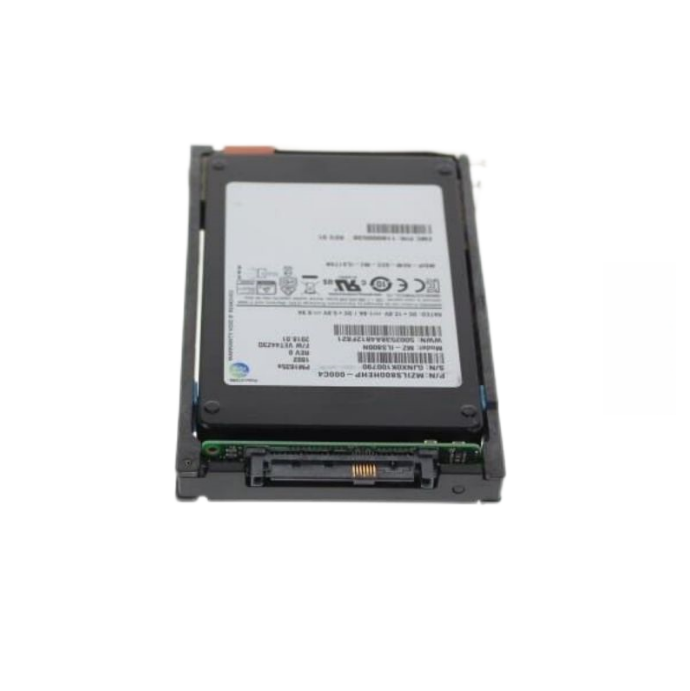

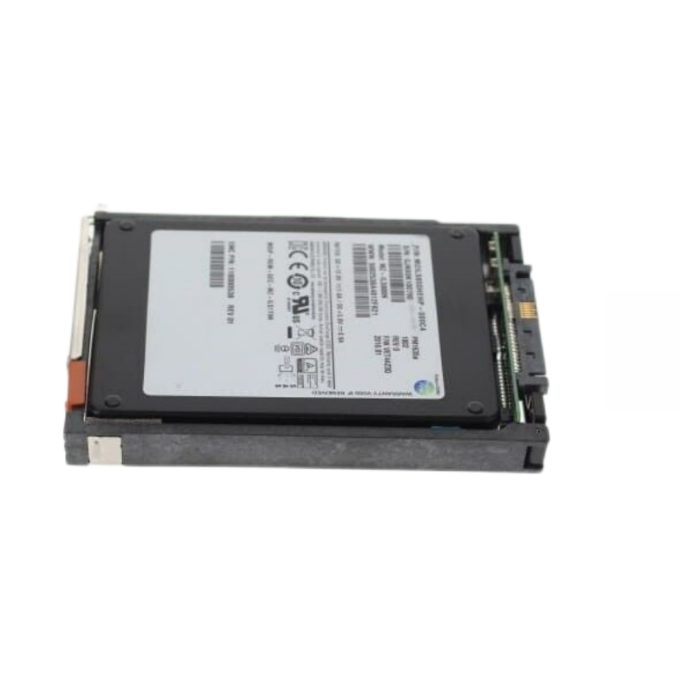

118000538 SAS Solid State Drive PM1635A Enterprise grade Disk Body Dedicated for 005052385/005052167 Storage Rack

Product Overview

1.Core Title

118000538 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 800GB of storage capacity. This hard drive is designed specifically for EMC Unity series storage systems, compatible with 005052385 and 005052167 storage expansion shelves, and uses PM1635A enterprise grade disk bodies to provide reliable storage solutions for critical business operations.

2.Core specification parameters

Project Specification Description

Brand and Model 118000538

Compatible expansion shelf 005052385/005052167

Disk model PM1635A

Interface type SAS-3 (12.0 Gb/s)

Physical specification 2.5 inches

Capacity 800 GB

Flash memory type MLC NAND

Read/write performance sequential read: 1200 MB/s

Sequential writing: 800 MB/s

3.Performance characteristics

High performance:

Sequential read speed: up to 1200 MB/s

Sequential write speed: up to 800 MB/s

Random read performance: up to 180000 IOPS

Random write performance: up to 45000 IOPS

Average latency:<150 μ s

Enterprise level durability:

Daily full disk write count: 10 DWPD

Total number of bytes written: 14.6 TBW

Supports 24/7 uninterrupted operation

Design service life: 5 years

Advanced data protection:

End to end data protection

A fail-safe mechanism

Advanced ECC Error Correction

4.Technical characteristics

Interface features:

SAS-3 (12.0 Gb/s) interface

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Power consumption management:

Working power consumption: 8-12W

Standby power consumption: 4W

Support energy-saving mode

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

5.Compatibility information

Support system:

Unity 300/400/500/600 series

VNX series (compatibility needs to be verified)

VNXe3200 series

Storage expansion shelf:

Specially optimized for storage expansion shelf 005052385/005052167

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

Database application:

Oracle Database

Microsoft SQL Server

MySQL Cluster

Virtualization environment:

VMware vSphere

Microsoft Hyper-V

Citrix XenServer

Enterprise applications:

File sharing storage

mail server

backup and archive

7.Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Real time temperature monitoring

Health Status Report

Maintenance features:

Supports hot swapping

Online firmware upgrade

Diagnostic tool support

8.Service Support

Technical Support: EMC Original Factory Service Support

Service level: optional 24 × 7 technical support

9.Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 150g

Interface: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable bracket
