1.92TB SAS solid state drive 005052319 storage rack dedicated PM1633A enterprise level disk body 7x24 hour operation

Product Overview

1.Core Title

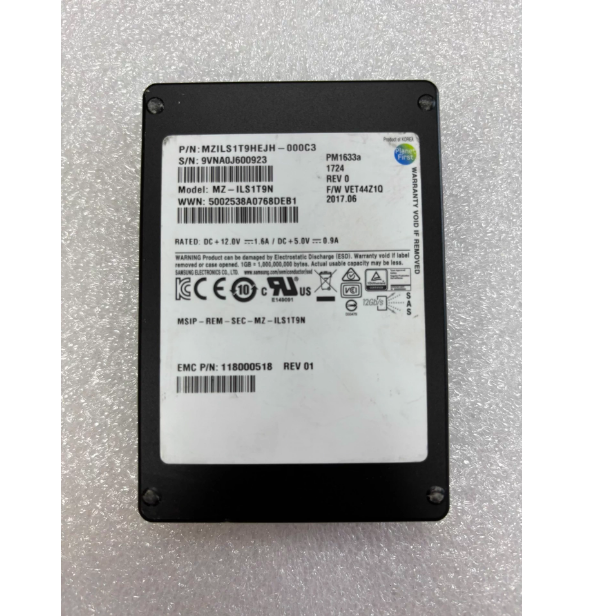

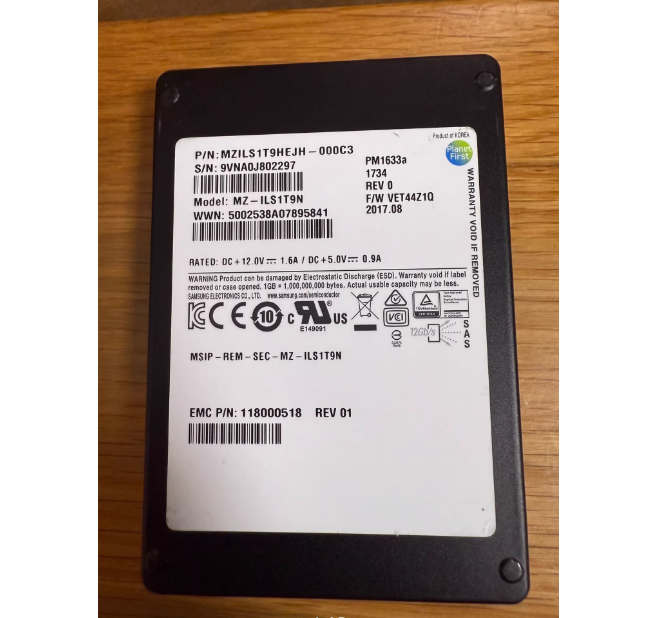

118000518 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 1.92TB of storage capacity. This hard drive is equipped with PM1633A enterprise grade disk body, optimized for the 005052319 storage expansion shelf in the Unity series storage system, providing high-performance and high reliability storage solutions for critical business applications in enterprises.

2.Core specification parameters

Project Specification Description

Brand and Model 118000518

Compatible with extension shelf 005052319

Disk model PM1633A

Interface type SAS-3 (12.0 Gb/s)

Appearance specification 2.5 inches

Rated capacity 1.92 TB

Flash memory type MLC NAND

Sequential reading of performance indicators: 1500 MB/s

Sequential writing: 1000 MB/s

3.Performance characteristics

High performance:

Highest sequential read speed: 1500 MB/s

Highest sequential write speed: 1000 MB/s

Random read performance: up to 200000 IOPS

Random write performance: up to 50000 IOPS

Average access latency:<130 μ s

Enterprise level durability:

Daily full disk write count: 5 DWPD

Total number of bytes written: 17.5 TBW

Support continuous operation 24/7

Design service life: 5 years

Data protection mechanism:

End to end data path protection

Advanced Power Failure Protection (PLP)

Multi-layer ECC error correction technology

Wear balance algorithm

4.Technical characteristics

Interface specifications:

SAS-3 (12.0 Gb/s) standard interface

Dual port redundancy design

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path I/O

Power management:

Typical operating power consumption: 8-14W

Standby power consumption: 5W

Advanced energy-saving mode

Dynamic power consumption regulation

Environmental adaptability:

Working temperature range: 0°C to 55°C

Storage temperature range: -40°C to 70°C

Working humidity range: 5% to 95% RH

Anti vibration performance meets enterprise level standards

5.System compatibility

Support platform:

Unity 300/400/500/600 series

UnityVSA series

Unity XT series

Storage expansion shelf:

Specially optimized design for 005052319 storage expansion shelf

Support hot swappable installation

Plug and Play configuration

6.Application scenarios

Key business applications:

Enterprise level databases (Oracle, SQL Server)

Virtualization infrastructure storage

Email server storage

Data intensive applications:

File sharing storage

Backup and Archive System

real-time data processing system

Enterprise Infrastructure:

Cloud infrastructure storage

Virtual Desktop Infrastructure (VDI)

Disaster recovery backup system

7.Management and maintenance functions

Monitoring diagnosis:

Real time S.M.A.R.T. status monitoring

Temperature sensing and overheat protection

Service life prediction analysis

Detailed performance indicator record

Maintenance features:

Online hot plug support

Seamless firmware upgrade

Remote management function

Automatic diagnostic tool

8.Service Support

Technical Support: Professional Technical Support Team

9.Physical specifications

Dimensions: 100.0 × 69.85 × 14.8 mm

Product weight: approximately 155g

Interface type: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable tray
