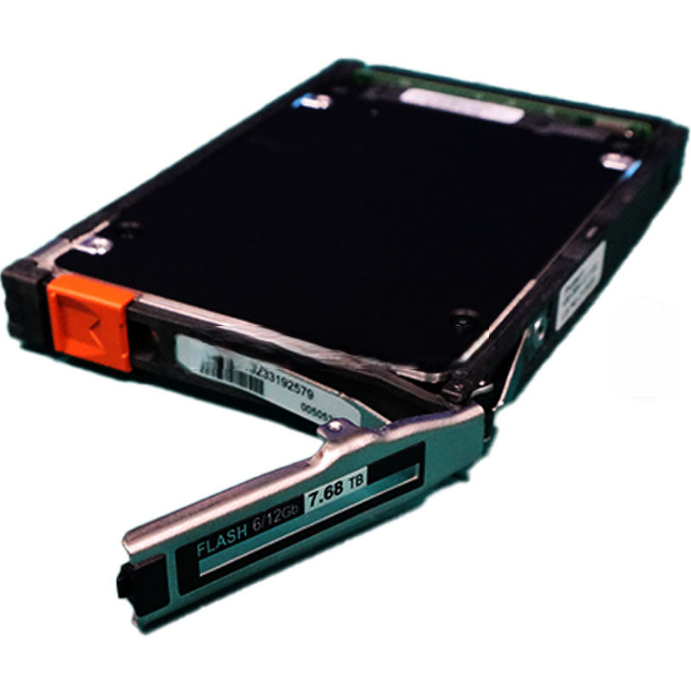

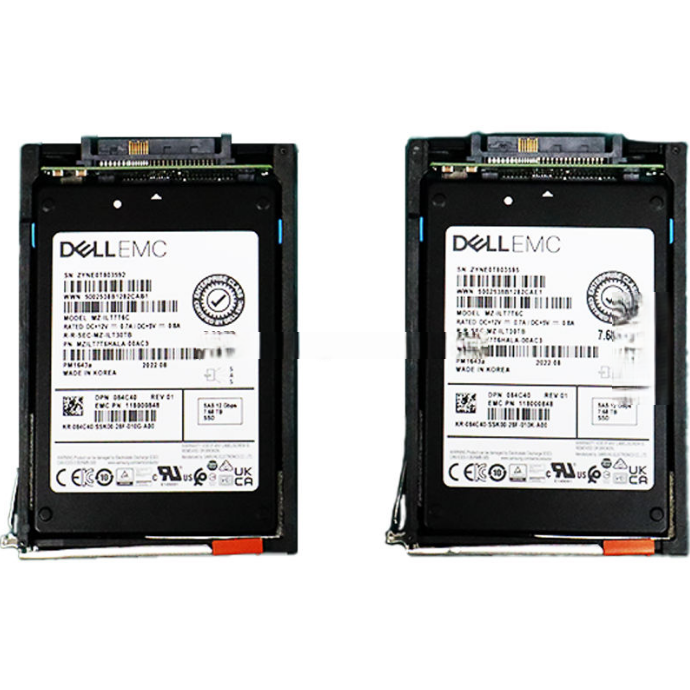

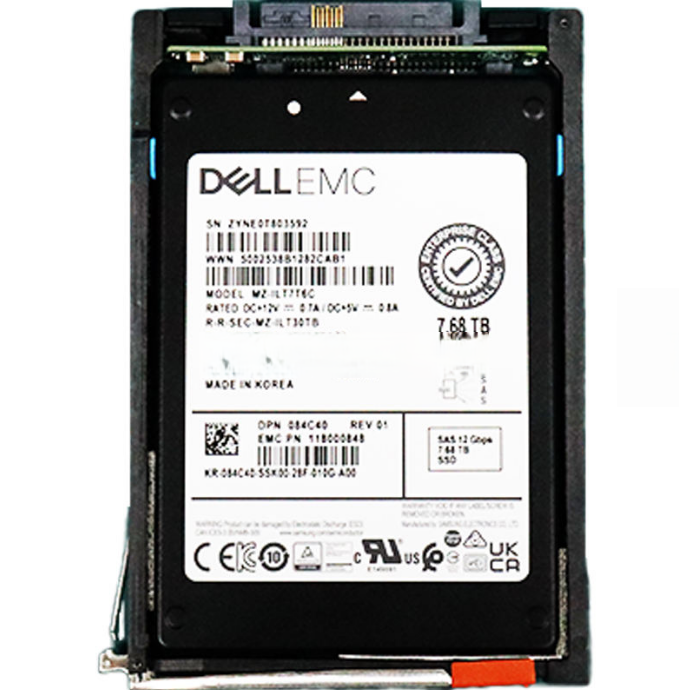

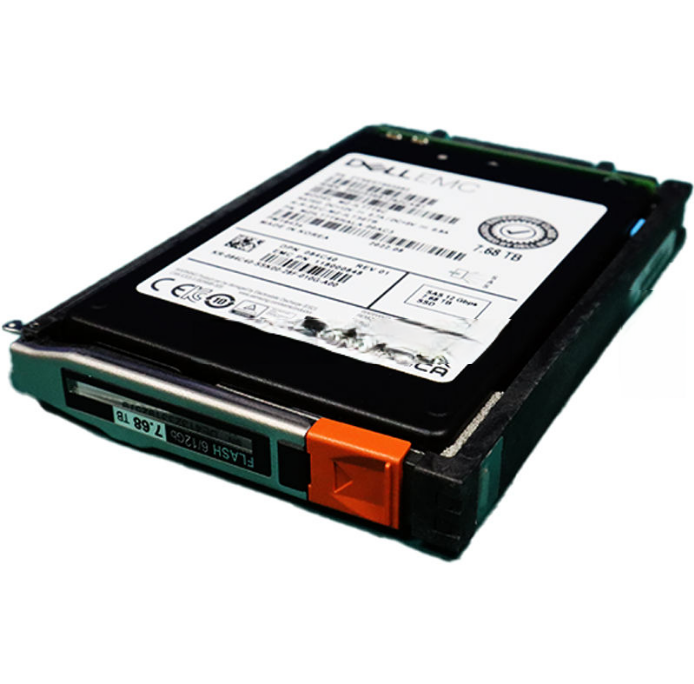

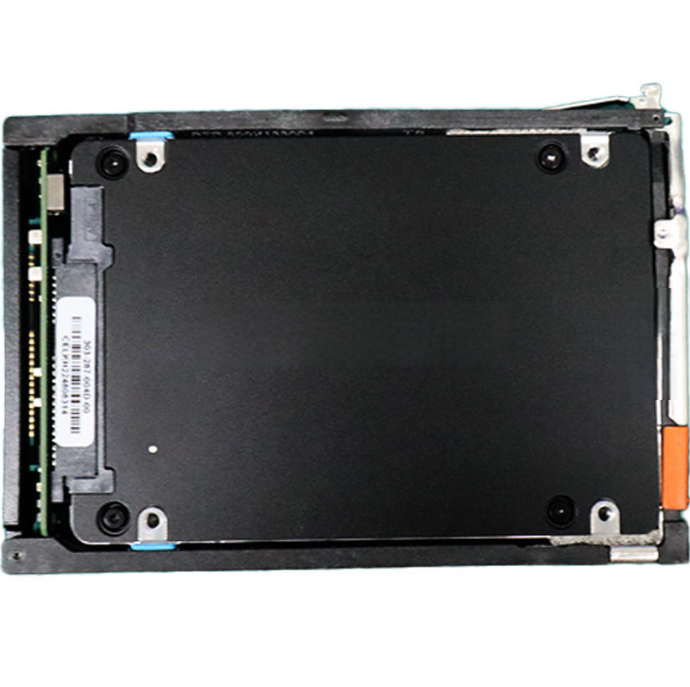

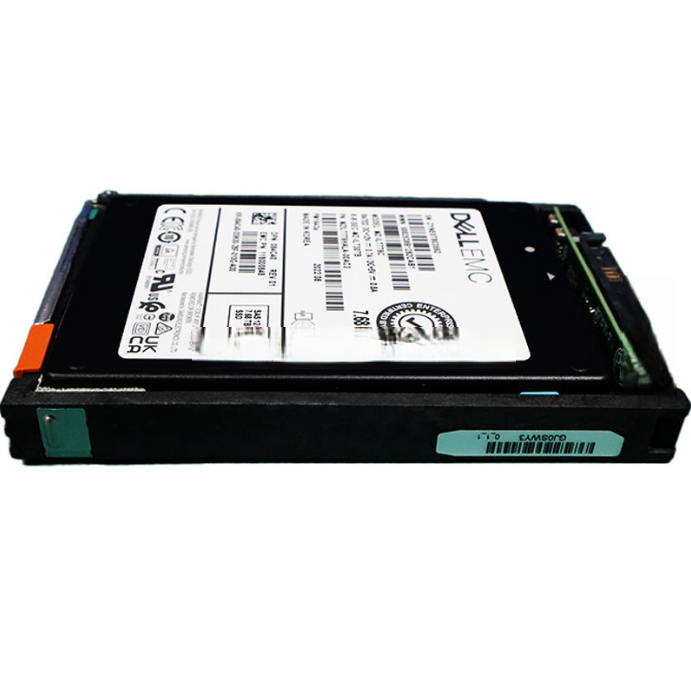

118000634 SAS Solid State Drive 5052557 Storage Rack Dedicated PM1643 Enterprise Class Disk Body 7x24 Hour Operation

Product Overview

1.Core Title

118000634 is a high-performance enterprise grade solid-state drive that features a 12Gb/s SAS interface and a 2.5-inch form factor, providing 7.68TB of storage capacity. This hard drive is equipped with PM1643 enterprise grade disk body, optimized for the 5052557 storage expansion shelf in PowerMax series storage systems, providing high-performance and high reliability storage solutions for critical business applications in enterprises.

2.Core specification parameters

Project Specification Description

Brand and Model 118000634

Compatible with expansion shelf 5052557

Disk model PM1643

Interface type SAS-3 (12.0 Gb/s)

Appearance specification 2.5 inches

Rated capacity 7.68 TB

Flash Memory Type: 3D TLC NAND

Sequential reading of performance indicators: 2100 MB/s

Sequential writing: 1000 MB/s

3.Performance characteristics

High performance:

Highest sequential read speed: 2100 MB/s

Highest sequential write speed: 1000 MB/s

Random read performance: up to 400000 IOPS

Random write performance: up to 75000 IOPS

Average access latency:<100 μs

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 42000 TBW

Support continuous operation 24/7

Design service life: 5 years

Data protection mechanism:

End to end data path protection

Advanced Power Failure Protection (PLP)

Multi layer ECC error correction technology

Wear balance algorithm

4.Technical characteristics

Interface specifications:

SAS-3 (12.0 Gb/s) standard interface

Dual port redundancy design

Backward compatible with SAS-2 (6.0 Gb/s)

Support multi-path I/O

Power management:

Typical working power consumption: 12-18W

Standby power consumption: 6W

Advanced energy-saving mode

Dynamic power consumption regulation

Environmental adaptability:

Working temperature range: 0°C to 55°C

Storage temperature range: -40°C to 70°C

Working humidity range: 5% to 95% RH

Anti vibration performance meets enterprise level standards

5.System compatibility

Support platform:

PowerMax 2000/4000/8000 series

VMAX 250F/450F/850F series

Storage expansion shelf:

Specially optimized design for 5052557 storage expansion shelf

Support hot swappable installation

Plug and play configuration

6.Application scenarios

Key business applications:

Enterprise level databases (Oracle, SQL Server, SAP HANA)

Virtualization infrastructure storage

Large scale transaction processing system

Data intensive applications:

Big data analysis platform

Artificial Intelligence/Machine Learning

Real time data processing system

Enterprise Infrastructure:

Cloud infrastructure storage

Virtual Desktop Infrastructure (VDI)

Disaster recovery backup system

7.Management and maintenance functions

Monitoring diagnosis:

Real time S.M.A.R.T. status monitoring

Temperature sensing and overheat protection

Service life prediction analysis

Detailed performance indicator record

Maintenance features:

Online hot plug support

Seamless firmware upgrade

Remote management function

Automatic diagnostic tool

8.Service Support

Technical Support: Professional Technical Support Team

9.Physical specifications

Dimensions: 100.0 × 69.85 × 14.8 mm

Product weight: approximately 170g

Interface type: SAS (SFF-8639)

Installation method: 2.5-inch hot swappable tray
