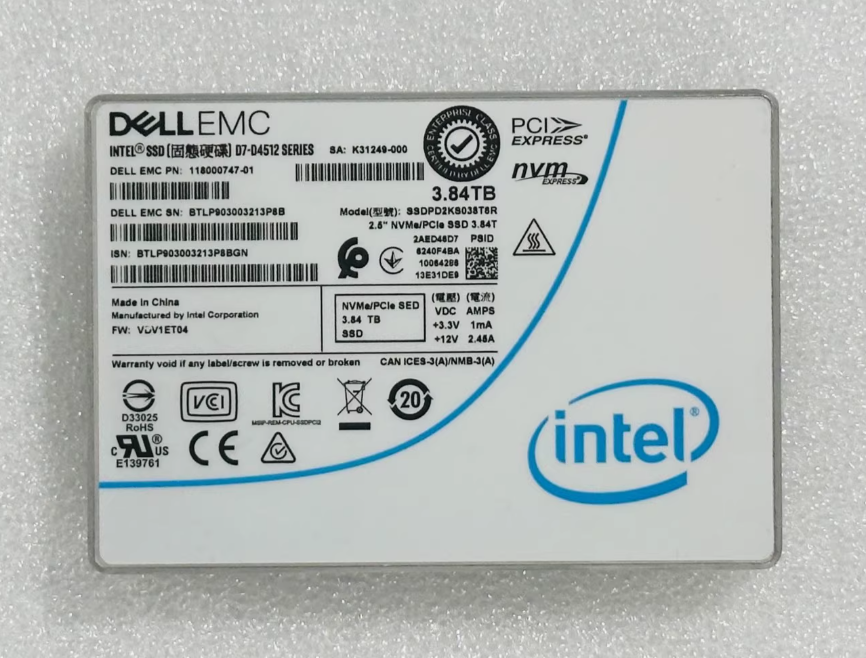

EMC Enterprise NVMe Solid State Drive - Model 118000747-01 Product Details
1、 Product Overview
EMC 118000747-01 (using Intel) ® Flash technology is a high-performance enterprise grade NVMe solid-state drive with a capacity of 3.84TB. The product is based on Intel ® Innovative 3D NAND flash technology, combined with PCIe 4.0 interface, provides outstanding performance, reliable durability, and excellent total cost of ownership for critical workloads in enterprises, making it an ideal storage choice for modern data centers.
2、 Detailed technical specifications
Detailed specifications of parameter categories
Basic Information
EMC part number 118000747-01
Flash technology from Intel ® 3D TLC NAND
Interface Protocol NVMe over PCIe 4.0
Appearance specification 2.5 inches U.2 (15mm)
Capacity information
Nominal capacity 3.84TB
User available capacity ≈ 3.5TB (including system reserved space)
performance parameters
Sequential read speed 7000 MB/s
Sequential write speed 4200 MB/s
4K random read 1400000 IOPS
4K random write 300000 IOPS
Read/write latency: Read<70 μ s, write<10 μ s
Reliability parameters
Durability level 3 DWPD
Service life 21 PBW
Mean time between failures 2500000 hours
Unrepairable error rate<1e-17
3、 Core Technologies and Characteristics
1. Intel Innovative 3D NAND Technology
Adopting Intel ® 144 layer 3D TLC NAND
Innovative floating gate technology
High density storage unit design
Optimized read and write performance
2. Enterprise level reliability assurance
Full path power-off protection: onboard supercapacitor
End to end data protection: Power Loss Protection
Advanced LDPC Error Correction: Third Generation LDPC Error Correction
Intelligent Wear Balance: Dynamic Wear Balance Technology
3. Intelligent management function
Hot swappable support: Compliant with NVMe hot swappable standards
Health status monitoring: Telemetry 2.0
Temperature management: Multi zone temperature sensors
Remote management: NVMe MI 1.1 management interface
4、 Compatibility information
Supported Dell EMC Systems:
PowerMax 2500/8500 series
PowerEdge MX740c/MX840c
Unity XT 380/480/680/880
VxRail P Series/V Series
Software environment support:
VMware HANA 7.0 U3 and above
Windows Server 2022
Red Hat Enterprise Linux 8.4 and above
SUSE Linux Enterprise Server 15 SP3
5、 Recommended application scenarios
1. Key business of the enterprise
Large scale database (Oracle Exadata)
SAP HANA In Memory Database
Microsoft SQL Server Cluster
2. Virtualization and Cloud
Enterprise level virtualization platform
Hyper converged infrastructure
Hybrid cloud storage solution
3. Data analysis
Real time data analysis platform
AI/Machine Learning Training
Big data processing cluster
4. High performance computing
Research Calculation Simulation
Financial risk modeling
Media content creation
6、 Summary of Product Advantages
performance advantage
CIe 4.0 high-performance performance
Consistent low latency
Excellent IOPS performance
Reliability advantage
Intel High quality flash memory
Enterprise level durability design
Comprehensive data protection
Energy efficiency advantage
Optimized power management
High energy efficiency ratio design
Reduce operating costs
7、 Environmental specifications
Parameter specifications
Working temperature: 0 ° C to 55 ° C
Storage temperature -40 ° C to 85 ° C
Working humidity 5% to 95% non condensing
Working altitude of 3000 meters
Typical power consumption 12-14W
Maximum power consumption 25W
Impact resistance 1000G (0.5ms)
