Enterprise grade solid-state drive PM1723B 1.92T U.2 NVMe PCIe 3.0 Ultra Micro X4010A High Durability Database Disk

1、 Product Overview

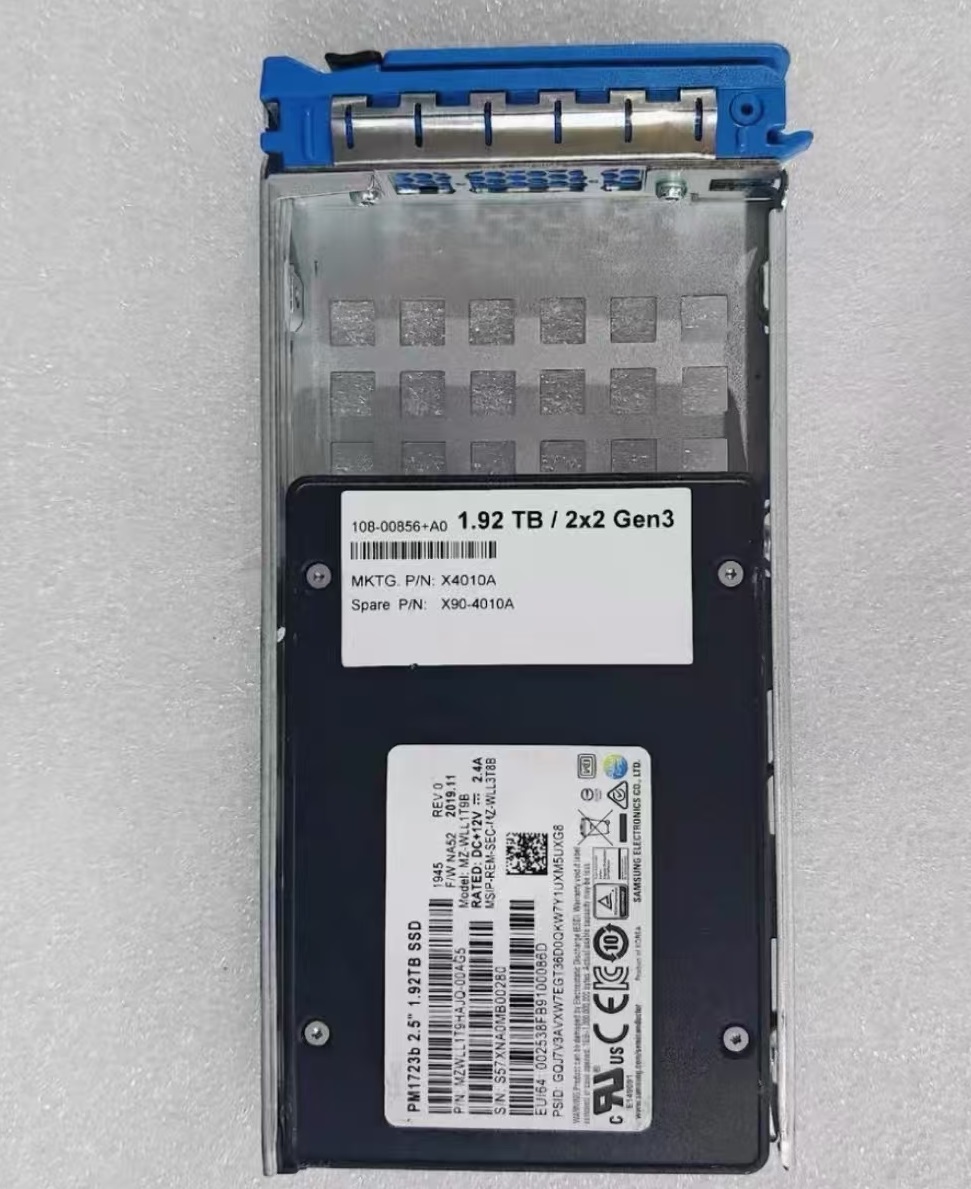

       NETAPP 108-00856 (product model X4010A, disk body model PM1723B) is a high-performance enterprise level NVMe solid-state drive with a capacity of 1.92TB. The product uses advanced 3D TLC NAND flash technology and NVMe protocol, optimized for read intensive workloads, achieving a perfect balance between performance, durability, and cost-effectiveness, suitable for various enterprise level application scenarios.

2、 Detailed technical specifications

        Parameter Category Detailed Specification Remarks

        Basic Information

        Manufacturer model X4010A

        NETAPP part number 108-00856 unique identification code

       Disk model PM1723B

        NVMe over PCIe interface protocol supports the latest standards

       Appearance specification 2.5 inches U.2 (SFF-8639) industry standard

       Capacity information

       Nominal capacity 1.92TB original capacity

       Available capacity ≈ 1.75TB considering RAID and system overhead

       performance parameters

        Sequential read speed up to 3200 MB/s, sustained performance

       Sequential write speed up to 1200 MB/s, sustained performance

       4K random read up to 500000 IOPS queue depth 256

       4K random write up to 80000 IOPS queue depth 256

       Read/write latency reading<90  s, write<20  typical value

       Reliability parameters

       Durability level 3 DWPD daily full disk write count

       Service life 10.5 PBW lifetime write capacity

        Mean time between failures 2000000 hours

        The warranty policy is 5 years or the durability index is reached first

3、 Core Technologies and Characteristics

1. High performance architecture design

       Adopting PCIe 3.0/4.0 x4 interface, providing high bandwidth data transmission

       Support multi queue access and optimize concurrent processing capabilities

       Intelligent pre reading algorithm improves sequential reading performance

       Low power controller design, balancing performance and energy efficiency

2. Enterprise level reliability assurance

       Power outage protection mechanism: integrated supercapacitor to ensure data          security in case of sudden power outage

       End to end data protection: complete data verification from host to flash memory

       Advanced ECC Error Correction: Powerful Error Detection and Correction Capability

       Wear leveling algorithm: extending the lifespan of flash memory

3. Intelligent management function

        Hot swappable support: supports online replacement to ensure business continuity

       S. M.A.R.T. Monitoring: Real time monitoring of hard drive health status

         Temperature management: dynamic temperature control adjustment to prevent overheating

          Firmware online upgrade: firmware can be updated without shutting down

4、 Compatibility information

        Supported NetApp systems:

        AFF A series full flash array: A220, A250, A400, etc

        FAS series hybrid storage system

         Supports ONTAP 9.5 and higher operating systems

         Physical compatibility:

          Standard 2.5-inch disc position

          DS224C, DS460C and other disk racks

          Support hot swappable installation

5、 Recommended application scenarios

1. Virtualization environment

        VMware HANA virtualization platform

        Microsoft Hyper-V Environment

        VDI (Virtual Desktop Infrastructure)

2. Enterprise applications

        Database read replica (Oracle, SQL Server)

       File Sharing Server

       Email server storage

3. Cloud and hosting services

       Virtual machine image storage

        Container persistent storage

        Backup and archive storage

4. Read intensive workloads

       Content Delivery Network (CDN)

        Streaming media services

         Big data analysis and query
