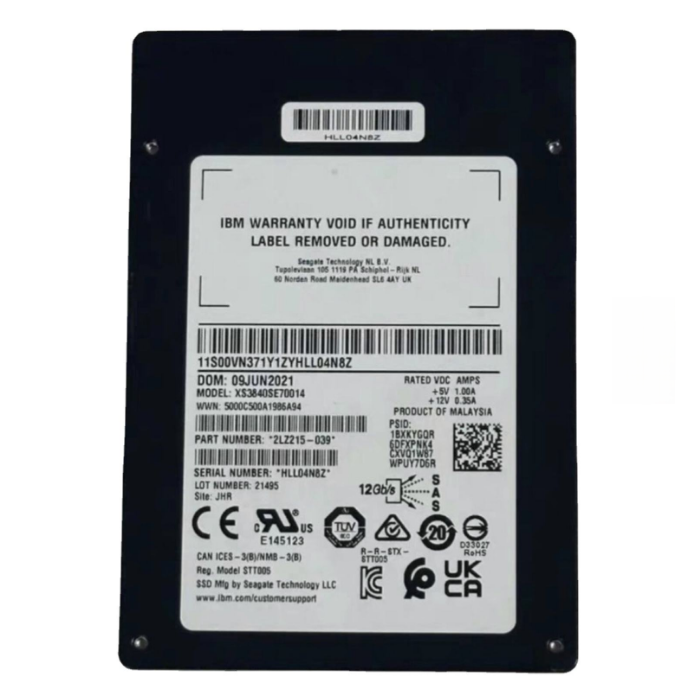

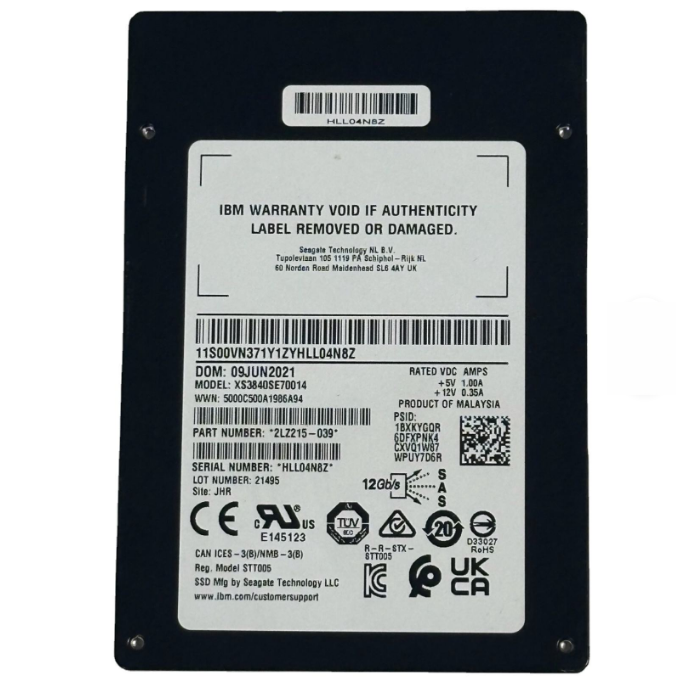

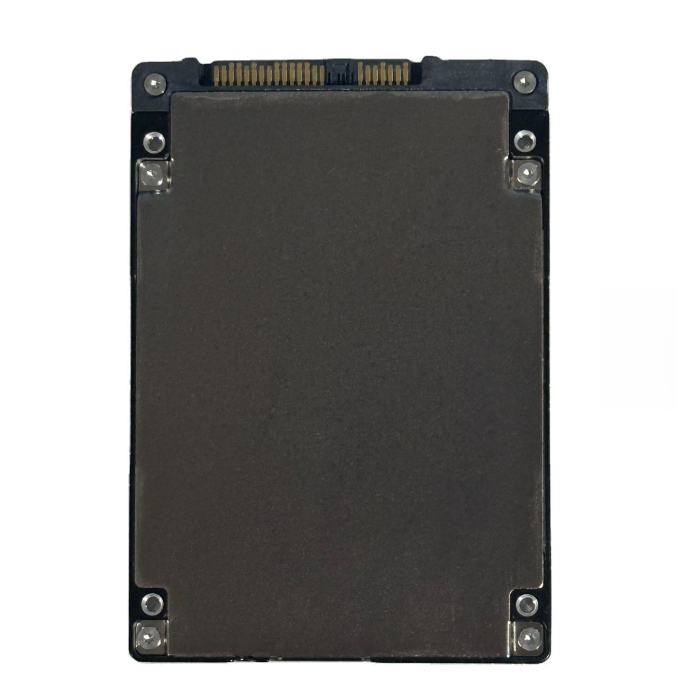

00VN371 Enterprise Solid State Drive 3.84TB SAS Interface Suitable for IBM Storage System High Performance Server SSD

Product Description

1.Product Overview

00VN371 is an enterprise grade 2.5-inch solid-state drive that features a 12Gb/s SAS interface and provides 3.84TB of storage capacity. This hard drive is designed specifically for Power Systems and Storage systems, with high performance, high reliability, and excellent stability, making it suitable for critical business applications in enterprises.

2. Core specification parameters

Project Specification Description

Brand and Model 00VN371

Interface type SAS-3 (12Gb/s)

Physical interface SFF-8639 (2.5 inches)

Capacity 3.84 TB

Flash Memory Type: 3D TLC NAND

Highest read-write performance: 2000 MB/s

Maximum write speed: 1800 MB/s

Durability index DWPD: 3 (5-year warranty period)

TBW：21,000 TB

Reliability MTBF: 2.5 million hours

Annual failure rate:<0.44%

3. Performance characteristics

High-performance performance:

Sequential read speed up to 2000 MB/s

Sequential write speed up to 1800 MB/s

Random read performance: up to 400000 IOPS

Random write performance: up to 200000 IOPS

Enterprise level durability:

Daily full disk write count: 3 DWPD

Total number of bytes written: 21000 TBW

Supports 24/7 uninterrupted operation

Advanced data protection:

End to end data path protection

Power outage protection for data security

Advanced ECC error correction function

4. Technical characteristics

Interface protocol:

SAS-3 (12.0 Gb/s)

Support dual port redundancy

Backward compatible with SAS-2 (6.0 Gb/s)

Power consumption management:

Working power consumption: 8-12W

Standby power consumption: 4-6W

Support energy-saving mode

Environmental specifications:

Working temperature: 0°C to 55°C

Storage temperature: -40°C to 70°C

Working humidity: 5% to 95% RH

5. Compatibility information

Support system:

Power Systems (POWER9, POWER10)

FlashSystem 5x00, 7x00 series

Storwize V5000/V7000 series

IBM servers supporting SAS interface

Chassis compatibility:

Suitable for standard 2.5-inch hard drive bays

Support hot swappable installation

Need compatible SAS backplane

6. Application scenarios

Database storage:

Oracle Database

IBM Db2

SQL Server

Virtualization platform:

VMware vSphere

IBM Power VM

Container storage

Enterprise applications:

ERP system (SAP HANA)

Data analysis platform

File sharing storage

7. Management and maintenance

Monitoring function:

S. M.A.R.T. status monitoring

Temperature monitoring and warning

Service life indication

Maintenance features:

Support hot swappable replacement

Online firmware upgrade

Diagnostic tool support

8. Service Support

Technical support: Original factory technical support

Service level: Optional 4-hour response service

9. Physical specifications

Size: 100.0 × 69.85 × 14.8 mm

Weight: Approximately 180g

Interface: SFF-8639 (SAS)

Installation method: 2.5-inch standard bracket

   Huaxing Xintongcan provide sales of a large number of new or used transmission equipment, servers, communication power systems, routers, base station equipment, switches, SFPs, storage devices, and other communication products. We have extensive knowledge and experience in product operation and maintenance. We have multiple professional technical personnel to provide testing for our products, ensuring that every refurbished spare part is perfect. It can reduce costs for your network maintenance. Looking forward to working with you.
