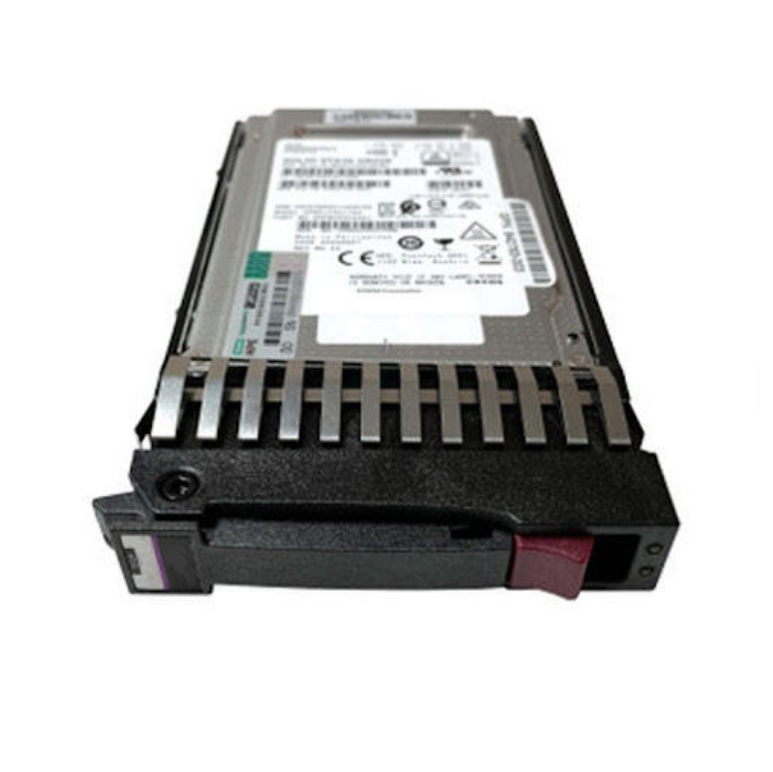

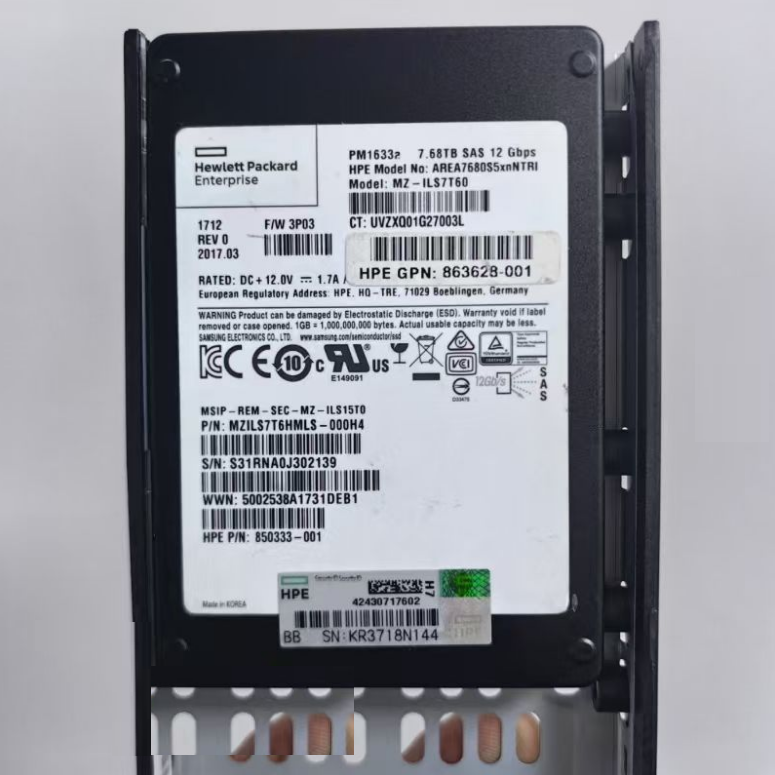

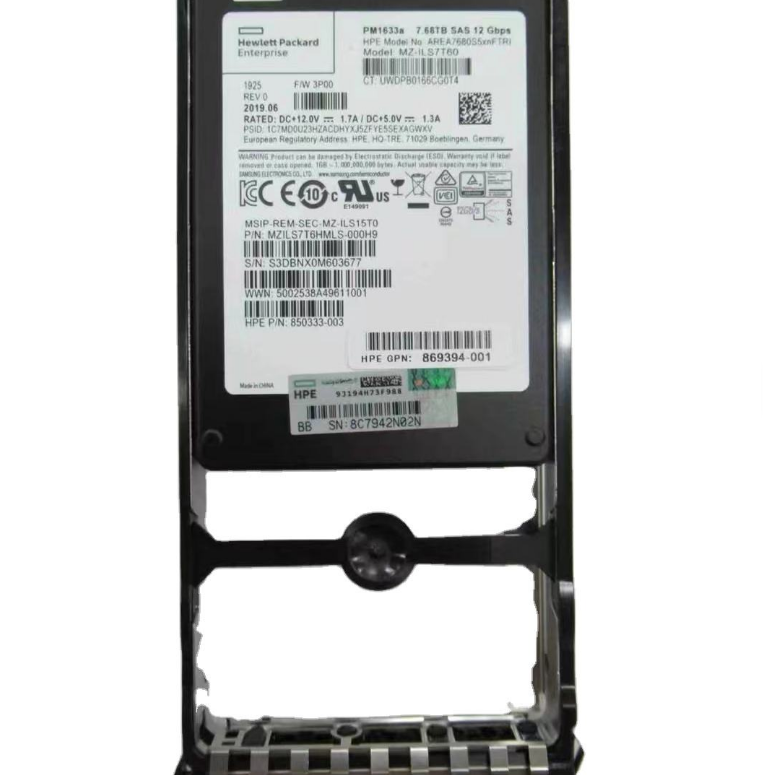

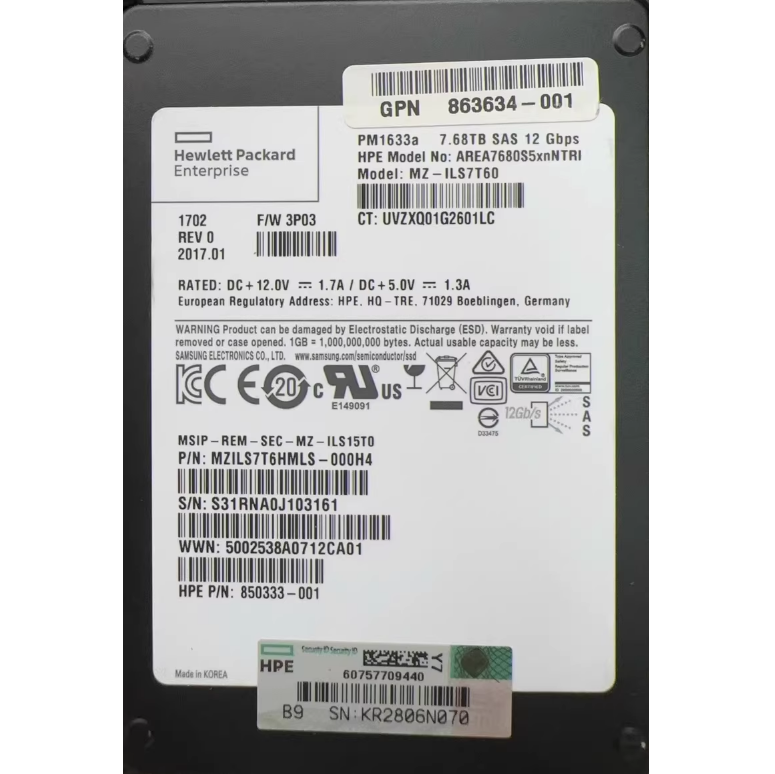

HP E PM1633A 7.68TB SAS 12G RI SFF SC DS SSD Read Intensive 2.5in Solid State Drive 850333-003 for 3PAR 8000

HPE 850333-003 (PM1633a) 7.68TB NVMe SSD Enterprise Solid State Drive Product Introduction

Product Overview

        HPE 850333-003 (disk body model PM1633a) is a high-performance enterprise level NVMe solid-state drive that utilizes an enterprise level solution developed in collaboration between HPE and Samsung. This hard drive is designed specifically for enterprise critical business systems that require high-performance and large capacity storage, achieving the best balance between performance, capacity, and reliability. It is suitable for applications such as virtualization, databases, and cloud computing.

1. Core features and specifications

        Capacity specification: 7.68TB

        (Adopting enterprise level reserved space design, OP configuration ensures long-term performance stability)

        Interface protocol: NVMe 1.3 over PCIe 3.0 x4

        Appearance specification: 2.5 inches U.2 (SFF-8639)

        Performance performance:

        Continuous reading speed: up to 3200 MB/s

         Continuous write speed: up to 2200 MB/s

        Random read IOPS: up to 800000 (4K)

        Random write IOPS: up to 120000 (4K)

        Durability index:

        DWPD: 1.0 (5-year warranty period)

        TBW：14.0PB

        MTBF: 2 million hours

        Flash Memory Type: 3D V-NAND TLC

        (Using vertical stacking TLC technology to provide excellent capacity and performance balance)

2. Advanced features

         Enterprise level power protection:

          Integrated supercapacitor protection circuit ensures data integrity in case of abnormal power outage

          End to end data protection:

          Adopting a 128 bit CRC checksum and metadata protection mechanism

          Intelligent wear balance:

          Support dynamic and static wear balance to extend service life

          Thermal management function:

          Built in temperature sensor, supporting adaptive thermal throttling

          Secure encryption:

          Supports AES 256 bit hardware encryption, compliant with security standards 3.      Applicable scenarios

          Enterprise level database:

         Large scale database storage such as Oracle and SQL Server

          Virtualization platform:

         VMware HANA, Microsoft Hyper-V virtualization environment

         Cloud computing:

         Primary storage for public and private cloud platforms

          Big data analysis:

         Real time data processing and analysis applications

         Media storage:

        Video editing and content creation storage

4. Compatibility information

        Support platform:

         HPE ProLiant DL360 Gen10

         HPE ProLiant DL380 Gen10

          HPE Apollo 4200

         HPE Synergy 480 Gen10

         System requirements:

         UEFI 2.4 or higher version is required

         Supports NVMe 1.3 and above protocols
