Storage specific 9.6TB NVMe hard drive dual models available, 03GH766/03GU532 with original heat dissipation bracket

Product Overview

1.Core Title

Original All Flash Storage Solution | 9.6TB NVMe PCIe 4.0 Enterprise Solid State Drive (Dual Models Available: 03GH766/03GU532) - Provides high-performance, high-capacity and reliable support for enterprise storage

2.Core advantages

Excellent performance

Adopting NVMe PCIe 4.0 interface protocol, the sequential read speed reaches up to 14000 MB/s, the sequential write speed reaches 7000 MB/s, and the random read/write performance exceeds 2.0M IOPS, meeting the high-performance storage requirements of enterprise level

Intelligent cooling system

Equipped with original heat dissipation bracket and advanced active heat dissipation technology, the dual fan design ensures long-term high-speed operation without frequency reduction, maintaining optimal performance

Authentic Quality Certification

Specially designed for FlashSystem optimization, ensuring perfect compatibility and stability with storage systems through rigorous quality testing

Large capacity storage design

9.6TB large capacity, using 3D TLC NAND flash technology to provide sufficient storage space for enterprise level applications

Enterprise level reliability

Supports 7 × 24-hour uninterrupted operation, with an annual write capacity of 3 DWPD, and provides a 5-year or 52.6PBW warranty life

3.Technical specifications

Detailed specifications of parameter categories

Hard drive model 03GH766 or 03GU532

Storage capacity 9.6TB

Interface standard NVMe PCIe 4.0 x4

Appearance specification 2.5 inches U.2

Flash Memory Type: 3D TLC NAND

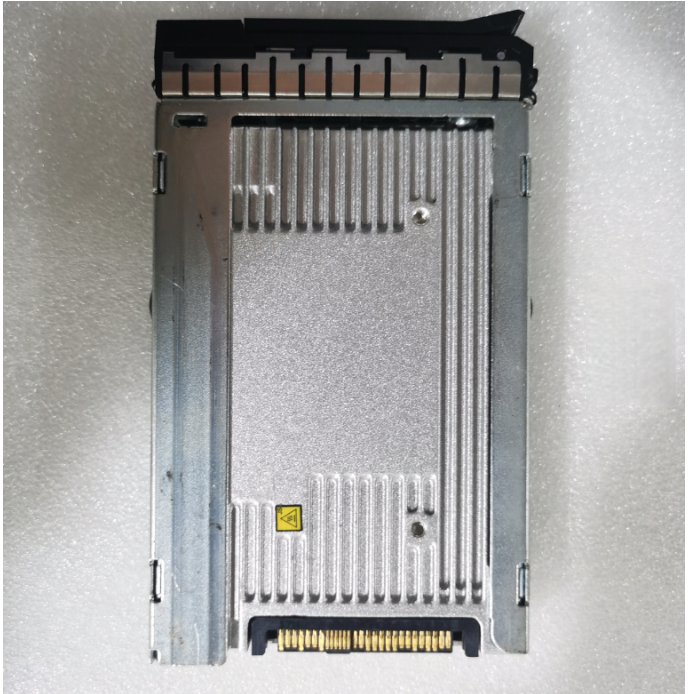

Includes NVMe drive body and original heat dissipation bracket

Read and write performance: Sequential read: 14000 MB/s | Sequential write: 7000 MB/s

Durability index 3 DWPD (5 years/52.6PBW)

Compatible with IBM FlashSystem 9200/9500 series

4.Compatible system

Perfect compatibility platform:

FlashSystem 9200

FlashSystem 9500

DS8900F

Storage Virtualize 8.5 and above versions

Spectrum Virtualize

5.Application scenarios

Enterprise level key applications:

Big data analysis - massive data storage and real-time analysis and processing

Artificial Intelligence - Machine Learning Training and Reasoning Data Storage

Virtualization Platform - Storage Solution for Large scale Virtualization Environments

Database System - High Performance Database Storage and Acceleration

Cloud Infrastructure - Private Cloud and Hybrid Cloud Storage Architecture

Media Processing -4K/8K Video Production and Media Asset Management

6.Quality Assurance

100% original components, providing genuine verification

Pass 120 hour high-temperature aging test

Provide a complete SMART health status report

Professional technical support services

Support machine validation testing

7.Installation requirements

system requirements

Requires support for IBM Storage Virtualize 8.5 or higher versions

Firmware Version

Must upgrade to the latest IBM system firmware version

environmental conditions

Operating temperature: 5°C to 40°C

Storage temperature: -40°C to 70°C

Humidity: 8% to 90% non condensing

Installation recommendations

Suggest installation and configuration by technical personnel

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation and configuration support - provide detailed installation and configuration documentation

Batch purchase discount - supports enterprise level batch purchase needs

Quick Response Service - Professional Technical Team with 24/7 Support

Spare parts guarantee - providing fast spare parts replacement services
