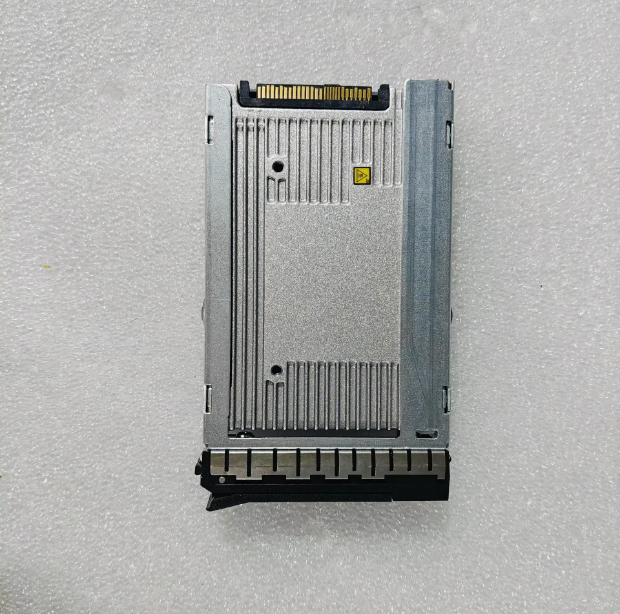

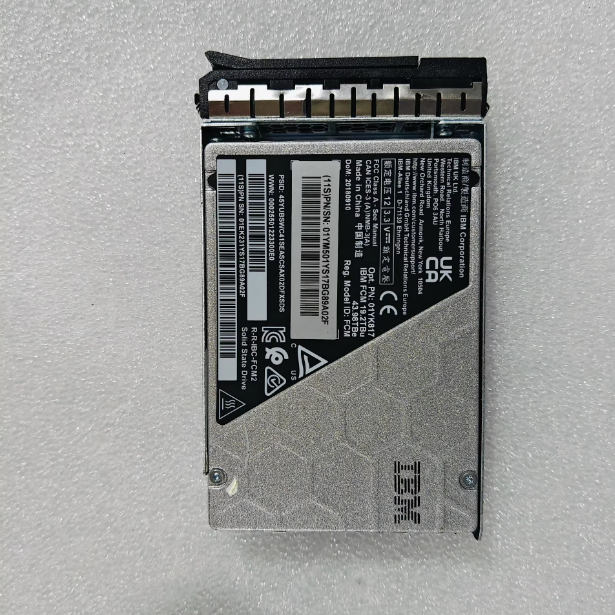

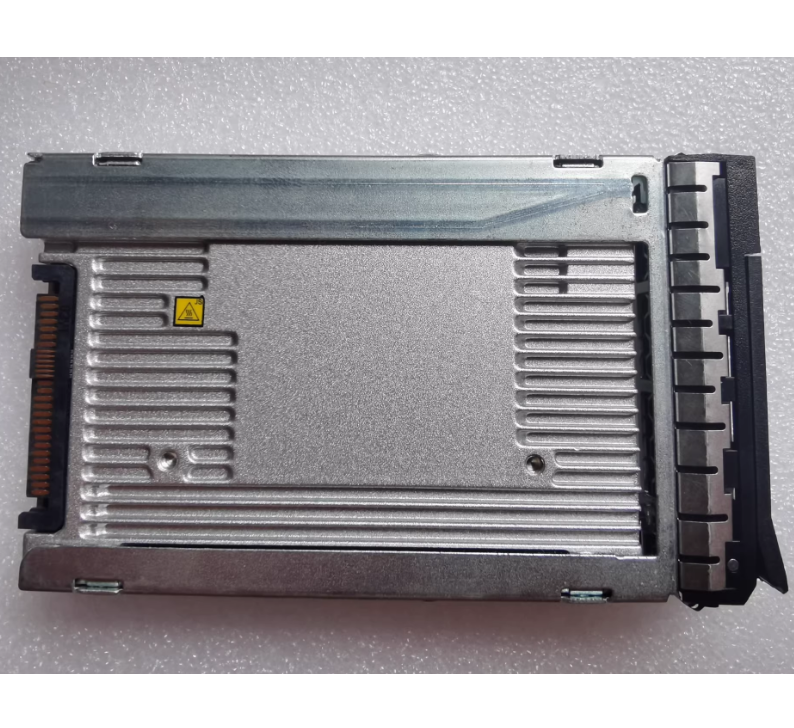

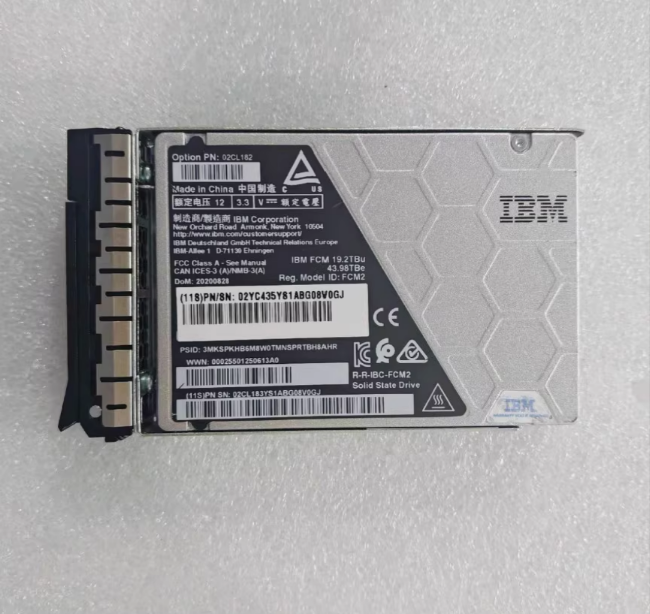

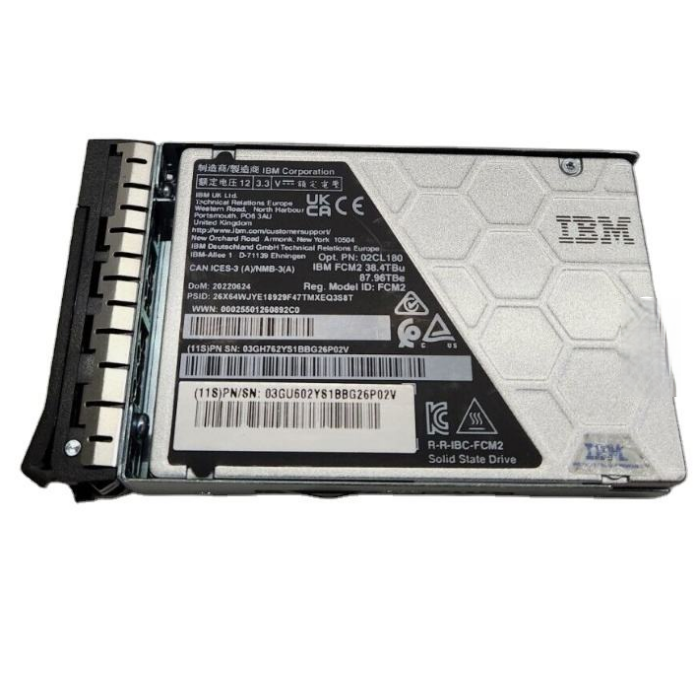

19.2TB NVMe hard drive model 02CL183 Original shelf number 02YC418 with complete heat dissipation solution

Product Overview

1.Core Title

Original All Flash Storage Solution | 19.2TB NVMe PCIe 4.0 Enterprise Solid State Drive (Complete Component Number: 02CL183-02YC418) - Provides Ultimate Performance and Capacity for Ultra Large Scale Data Storage

2.Core advantages

Ultimate Performance Performance

Adopting NVMe PCIe 4.0 interface protocol, the sequential read speed reaches up to 14000 MB/s, the sequential write speed reaches 7000 MB/s, and the random read/write performance exceeds 2M IOPS, meeting the most demanding performance requirements

intelligent temperature control system

Equipped with original heat dissipation bracket (02YC418), adopting active heat dissipation technology, built-in intelligent temperature control fan, ensuring optimal temperature maintenance under full load operation

OEM Quality

Specially designed for IBM FlashSystem optimization, ensuring perfect compatibility with IBM storage systems through rigorous quality testing by IBM

Ultra large storage capacity

19.2TB ultra large capacity, using 3D TLC NAND flash technology, providing excellent storage density and performance

Enterprise level reliability

Supports 7 × 24-hour uninterrupted operation, with an annual write capacity of 3 DWPD and a warranty life of 5 years or 105 PBW

3.Technical specifications

Detailed specifications of parameter categories

Hard drive model 02CL183

Bracket model 02YC418

Storage capacity 19.2TB

Interface standard NVMe PCIe 4.0 x4

Appearance specification 2.5 inches U.2

Flash Memory Type: 3D TLC NAND

Includes NVMe drive body and original heat dissipation bracket (02YC418)

Read and write performance: Sequential read: 14000 MB/s | Sequential write: 7000 MB/s

Durability index 3 DWPD (5 years/105PBW)

Compatible with IBM FlashSystem 9200/9500 series

4.Compatible system

Perfect compatibility platform:

FlashSystem 9200

FlashSystem 9500

DS8900F

Storage Virtualize 8.5 and above versions

Spectrum Virtualize

5.Application scenarios

Enterprise level key applications:

Ultra large scale data center - providing high-density storage solutions for cloud service providers

Artificial Intelligence and Machine Learning - Supports PB level AI training dataset storage and processing

High performance computing - large-scale data storage for scientific research computing and engineering simulation

Real time big data analysis - financial risk control and IoT data analysis platform

Enterprise level virtualization - hyper converged infrastructure and private cloud platform

Media Entertainment -8K Video Production and Media Asset Management System

6.Quality Assurance

100% original IBM components, providing genuine verification

Pass a 120 hour continuous stress test

Provide a complete SMART health status report

Professional technical support services

Support machine validation testing

7.Installation requirements

system requirements

Requires support for IBM Storage Virtualize 8.5 or higher versions

Firmware Version

Suggest upgrading to the latest IBM system firmware version

environmental conditions

Operating temperature: 5°C to 40°C

Storage temperature: -40°C to 70°C

Humidity: 8% to 90% non condensing

8.Service Support

Professional technical consultation - providing complete technical specifications and compatibility guidance

Installation and configuration support - provide detailed installation and configuration documentation

Batch purchase discount - supports enterprise level batch purchase needs

Quick response service -7 × 24-hour professional technical support

Spare parts guarantee - providing fast spare parts replacement services
